WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, composite copper heat pipes that directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Optimized Thermal Module
The pure copper heat pipe makes direct contact with the GPU to facilitate enhanced heat transfer to the heatsink, optimizing the cooling efficiency of the graphics card.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
ULTRA DURABLE
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifications
| Processor |
| Maximum displays per videocard |
4 |
| Parallel processing technology support |
Not supported |
| Processor frequency |
2550 MHz |
| CUDA cores |
3072 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 4060 |
| Graphics processor family |
NVIDIA |
| Memory |
| Data transfer rate |
17 Gbit/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Ports & interfaces |
| DisplayPort version |
1.4a |
| Mini DisplayPorts quantity |
0 |
| HDMI version |
2.1a |
| Mini HDMI ports quantity |
0 |
| Thunderbolt 3 ports quantity |
0 |
| DVI-D ports quantity |
0 |
| DVI-I ports quantity |
0 |

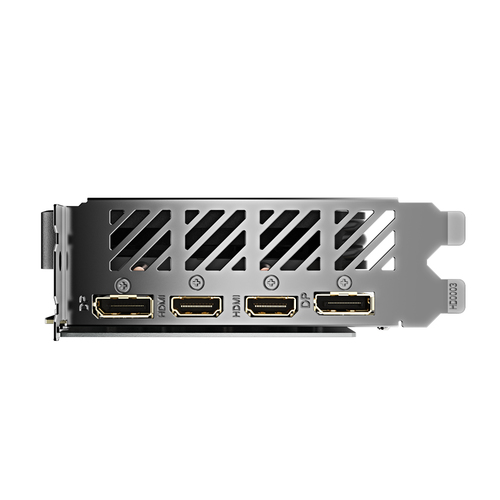

| DisplayPorts quantity |
2 |
| HDMI ports quantity |
2 |
| Interface type |
PCI Express 4.0 |
| Performance |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| TV tuner integrated |
No |
| Design |
| Product colour |
Black |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Number of fans |
3 fan(s) |
| Cooling technology |
Gigabyte WATERFORCE |
| Cooling type |
Active |
| Power |
| Supplementary power connectors |
1x 8-pin |
| Minimum system power supply |
450 W |
| Weight & dimensions |
| Height |
114 mm |
| Depth |
40 mm |
| Length |
281 mm |
| Packaging data |
| Package type |
Box |
| Packaging content |
| Quick installation guide |
Yes |
