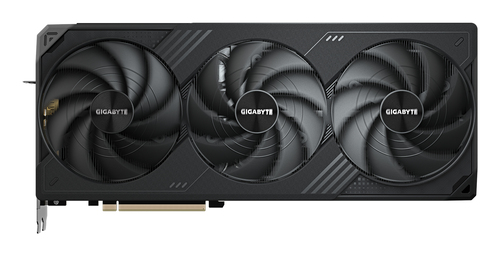

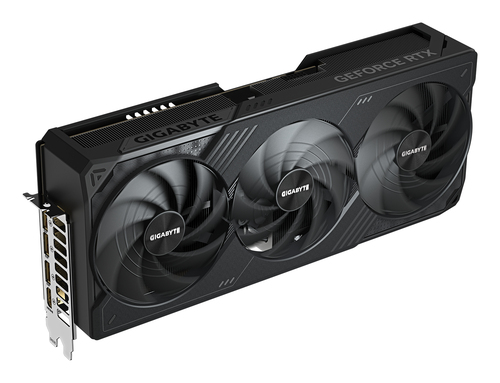

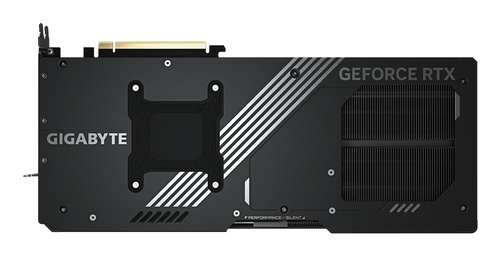

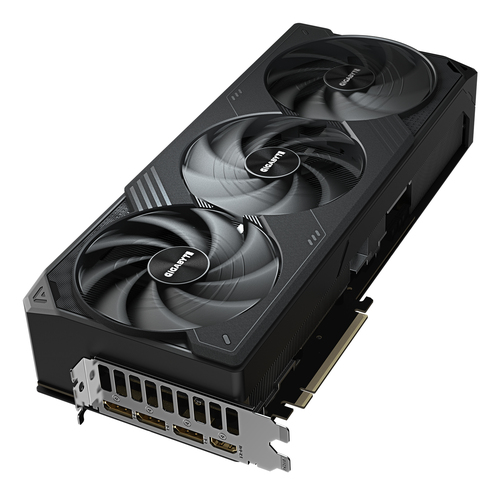

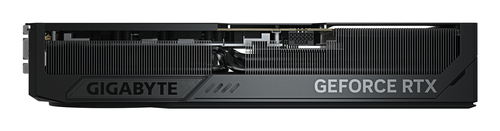

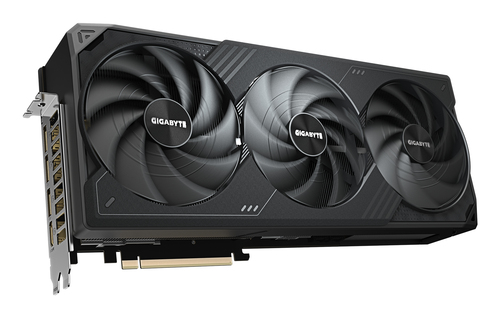

The Gigabyte GeForce RTX 5090 WINDFORCE OC is engineered for gamers and creators seeking top-tier performance. Powered by NVIDIA's Blackwell architecture, it boasts 21,760 CUDA cores and 32GB of ultra-fast GDDR7 memory on a 512-bit interface, delivering exceptional bandwidth and processing power. The WINDFORCE cooling system incorporates server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling to maintain optimal temperatures during intense workloads. With support for DLSS 4, real-time ray tracing, and AI-driven enhancements, this GPU ensures immersive visuals and smooth gameplay. Its robust design, featuring a triple-slot form factor and reinforced structure, makes it a reliable choice for high-resolution gaming and demanding creative applications.
Features:
Powered by NVIDIA's Blackwell architecture for cutting-edge performance
Equipped with 32GB of GDDR7 memory on a 512-bit interface for ultra-fast data throughput
WINDFORCE cooling system with triple fans, vapor chamber, and composite heat pipes ensures efficient thermal management
Supports DLSS 4 and real-time ray tracing for enhanced visual fidelity
Triple-slot design with reinforced structure for durability

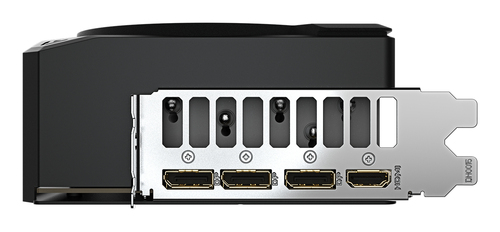

Offers 3x DisplayPort 2.1a and 1x HDMI 2.1b outputs for versatile connectivity
Requires a 16-pin PCIe power connector and a recommended 1000W power supply
Ideal for 8K gaming, AI acceleration, and professional creative workflows
Specifications:
|
MPN
|
GV-N5090WF3OC-32GD
|
|
GPU Model
|
NVIDIA GeForce RTX 5090
|
|
CUDA Cores
|
21,760
|
|
Tensor Cores
|
680
|
|
RT Cores
|
170
|
|
Base Clock
|
2017 MHz
|
|
Boost Clock
|
2467 MHz
|
|
Memory Size
|
32 GB GDDR7
|
|
Memory Interface
|
512-bit
|
|
Memory Speed
|
28 Gbps
|
|
Memory Bandwidth
|
1.79 TB/s
|
|
Interface
|
PCI Express 5.0 x16
|
|
Display Outputs
|
3x DisplayPort 2.1a, 1x HDMI 2.1b
|
|
Maximum Resolution
|
7680 x 4320 (8K)
|
|
Cooling System
|
WINDFORCE with triple fans, vapor chamber, composite heat pipes
|
|
Power Connector
|
1x 16-pin PCIe
|
|
Recommended PSU
|
1000 W
|
|
TDP
|
575 W
|
|
Slot Width
|
Triple-slot
|
|
Card Dimensions (L x W x H)
|
342 mm x 150 mm x 65 mm
|
|
DirectX Support
|
DirectX 12 Ultimate
|
|
OpenGL Support
|
OpenGL 4.6
|
|
OS Compatibility
|
Windows
|
|
Features
|
DLSS 4, real-time ray tracing, AI acceleration, NVIDIA Reflex 2, G-SYNC
|
|
Additional Features
|
Dual BIOS, reinforced structure, screen cooling
|
