The black flat cable reduces the clutter and improves the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

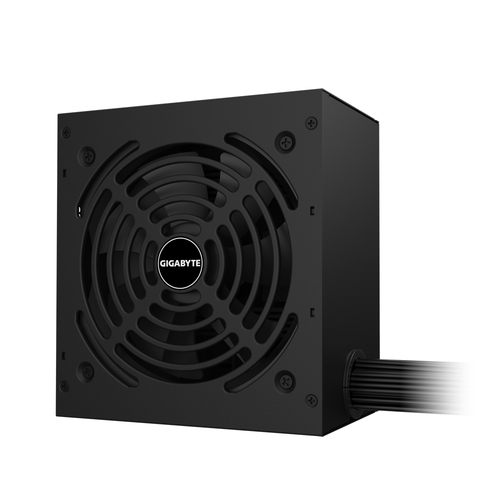

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
DIMENSIONS
Compact size to fit any small chassis.

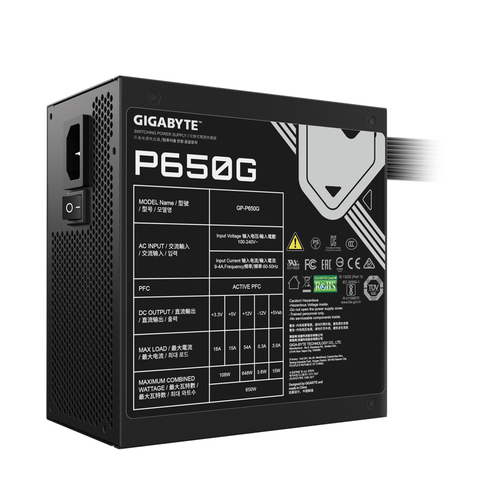

Specifications
| Power |
| Power protection features |
Over power, Overcharge, Short circuit, Under voltage |
| Max output current (+5Vsb) |
20 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V) |
54.17 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
12.5 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
650 W |
| Combined power (+12V) |
650 W |
| Combined power (+3.3V) |
120 W |
| Power Factor Correction (PFC) type |
Active |
| Maximum input current (@220V) |
6 A |
| Maximum input current (@110V) |
12 A |
| Input current |
12 - 6 A |
| AC input voltage |
100 - 240 V |
| Total power |
650 W |
| Ports & interfaces |
| Cabling type |
Non-Modular |
| Floppy disk drive connector |
Yes |
| ATX power connector (20+4 pin) |
Yes |
| CPU power cable length |
60 cm |
| CPU power connector (4+4 pin) |
Yes |
| CPU P4 connector (4-pin) |
1 |
| PCI Express power cable length |
65 cm |
| PCI Express power connectors (6+2 pin) |
4 |
| Peripheral (Molex) power cable length |
150,500 mm |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| SATA power cable length |
150,500 mm |
| Number of SATA power connectors |
6 |
| Motherboard power cable length |
50 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
HDB |
| Noise level |
39 dB |
| ATX version |
2.31 |
| 80 PLUS certification |
80 PLUS Bronze |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
| On/off switch |
Yes |
| Fan location |
Top |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Weight & dimensions |
| Height |
86 mm |
| Depth |
150 mm |
| Width |
140 mm |
| Packaging data |
| Package type |
Box |
