Unleash next‑gen power with the GIGABYTE GV‑N5090AORUSM ICE‑32GD AORUS GeForce RTX 32GB GDDR7 Graphics Card—your ticket to ultra‑smooth 8K gaming and AI‑driven workloads. This card delivers raw speed that turns demanding titles into effortless experiences. You’ll feel the difference the moment you launch your favorite game or render complex scenes.

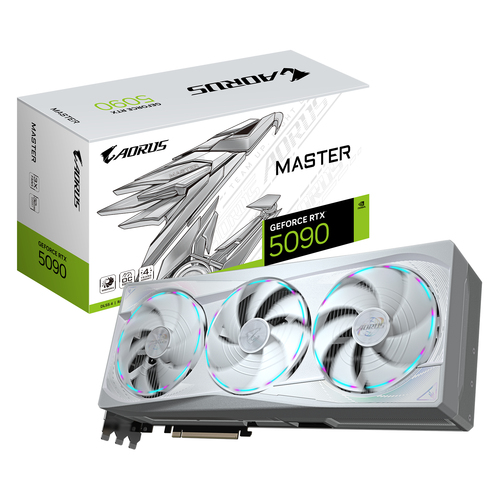

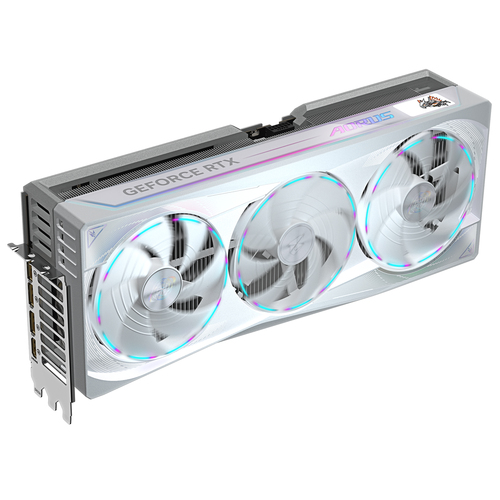

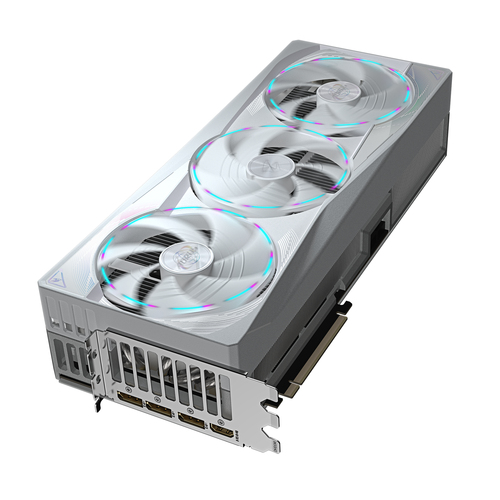

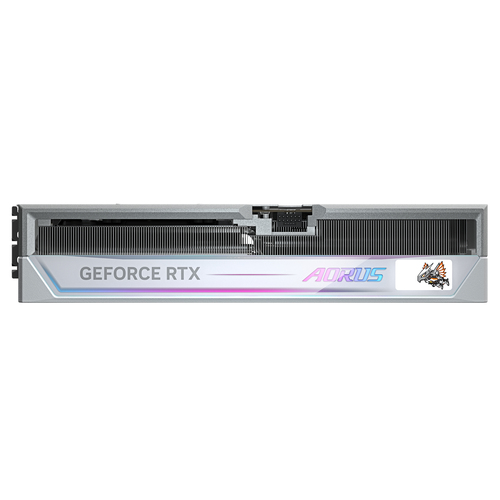

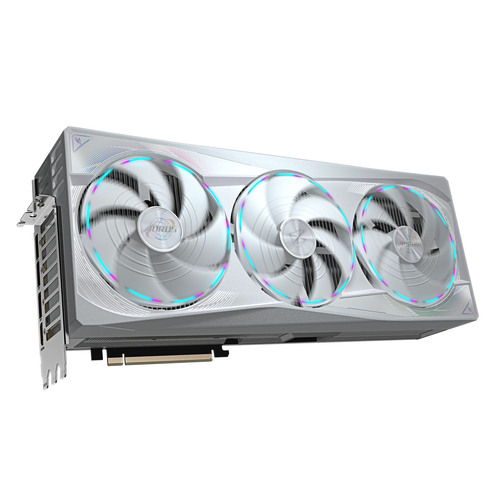

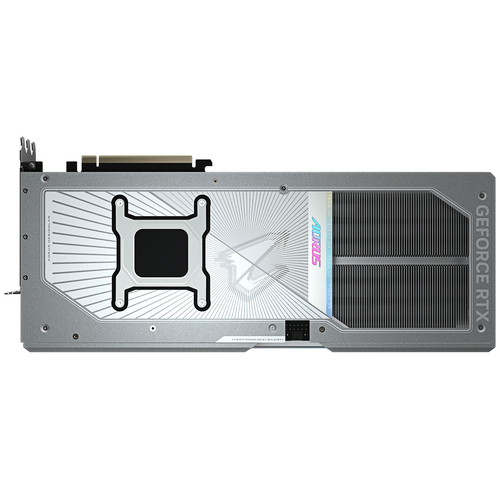

GIGABYTE GV-N5090AORUSM ICE-32GD AORUS GeForce RTX 32GB GDDR7 Graphics Card
Built on NVIDIA’s Blackwell 2.0 architecture, the RTX 5090 packs 21,760 CUDA cores, 680 fifth‑gen Tensor cores, and 170 fourth‑gen RT cores. With a base clock of 2017 MHz and a boost up to 2655 MHz, it drives a massive 32 GB of GDDR7 memory across a 512‑bit bus, delivering 1,792 GB/s bandwidth for flawless performance.

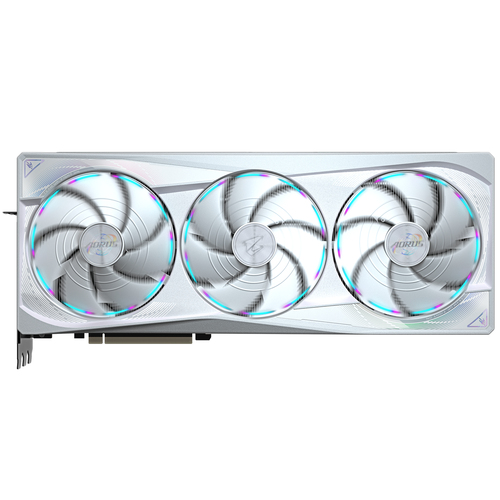

The WINDFORCE 3X triple‑fan system, heat pipes, and vapor chamber keep temperatures low even under sustained load. You get three DisplayPort 2.1a and one HDMI 2.1b outputs, supporting up to four displays and resolutions up to 8K (7680 × 4320). A single 16‑pin PCIe Gen5 connector and a recommended 1000 W PSU ensure stable power delivery.
Benefits
- Extreme 8K gaming and professional rendering capability.
- AI‑accelerated performance with 5th‑gen Tensor cores and DLSS 4.
- Efficient cooling that maintains high boost clocks without throttling.
- Future‑proof connectivity with PCIe 5.0 and DisplayPort 2.1a.
Uses of the product
- High‑frame‑rate gaming at 4K and 8K resolutions.
- Real‑time ray tracing for cinematic visual quality.
- AI‑enhanced content creation and video encoding.
- VR and simulation workloads that demand low latency.
Features
- Blackwell 2.0 5 nm GPU delivering 21,760 CUDA cores and 170 RT cores.
- 32 GB GDDR7 memory with 28 Gbps effective clock and 1,792 GB/s bandwidth.
- WINDFORCE 3X triple‑fan cooling with vapor chamber and heat pipes.
- PCIe 5.0 ×16 interface and 16‑pin 12VHPWR connector for optimal power efficiency.
Specifications
| GPU / Graphics Processor |
NVIDIA GeForce RTX 5090 (GPU chip: GB202‑300‑A1) |
| Architecture / Process |
Blackwell 2.0, 5 nm |
| CUDA Cores |
21,760 |
| Tensor Cores |
680 (5th‑gen) |
| Ray Tracing (RT) Cores |
170 (4th‑gen) |
| Streaming Multiprocessors (SMs) |
170 |
| Base Clock |
2017 MHz |
| Boost Clock |
2655 MHz |
| Memory Size & Type |
32 GB GDDR7 |
| Memory Bus Width |
512‑bit |
| Effective Memory Clock |
28 Gbps (28,000 MHz) |
| Memory Bandwidth |
1,792 GB/s |
| PCIe Interface |
PCI Express 5.0 ×16 |
| Cooling System |
WINDFORCE 3X triple-fan cooling with heat pipes and vapor chamber |

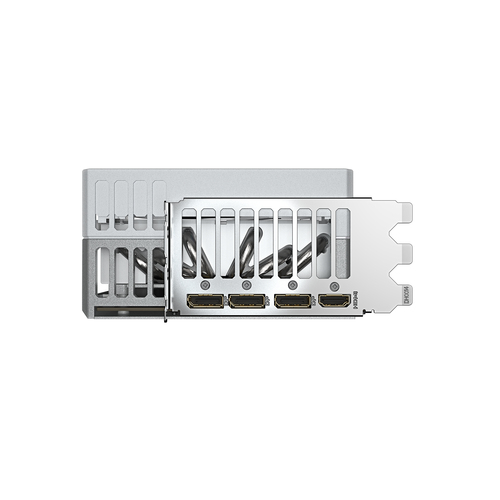

| Video Outputs |
3 × DisplayPort 2.1a, 1 × HDMI 2.1b |
| Maximum Digital Resolution |
7680 × 4320 (8K) |
| Maximum Displays Supported |
Up to 4 |
| Power Connector / PSU Recommendation |
1 × 16‑pin PCIe Gen5 (12VHPWR); recommended PSU ≥ 1000 W |
| Card Dimensions / Slot Size |
360 mm (L) × 150 mm (W) × 75 mm (H); 3.8-slot width |
| Supported APIs / Features |
DirectX 12 Ultimate, OpenGL 4.6, DLSS 4, full ray tracing, NVIDIA Reflex, VR-ready, NVIDIA Studio / Encoder / Broadcast support, AI acceleration / neural rendering |
