| Processor |
| Maximum internal memory supported by processor |
1 TB |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
AMD Ryzen Threadripper 1000 Series |
| Processor socket |
Socket sTR5 |
| Processor manufacturer |
AMD |
| Memory |
| Maximum internal memory |
1 TB |
| Supported memory module capacities |
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB, 64GB, 128GB, 128MB, 256MB |
| Supported memory clock speed (max) |
7800 MHz |
| Supported memory clock speeds |
4400,4800,5200,5600,6000,6400,6800,7000,7200,7600,7800 MHz |
| ECC сompatibility |
ECC |
| Memory channels |
Quad-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID levels |
0, 1, 10 |
| RAID support |
Yes |
| Number of HDDs supported |
8 |
| Number of storage drives supported |
12 |
| Supported storage drive interfaces |
M.2, SATA |
| Supported storage drive types |
SSD |
| Graphics |
| DirectX version |
12.0 |
| Internal I/O |
| RGB LED pin header |
Yes |
| EPS power connector (8-pin) |
Yes |
| Number of chassis fan connectors |
10 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Audio connector |
Yes |
| Total number of SATA connectors |
8 |
| Number of SATA III connectors |
8 |
| USB 3.2 Gen 2x2 connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |

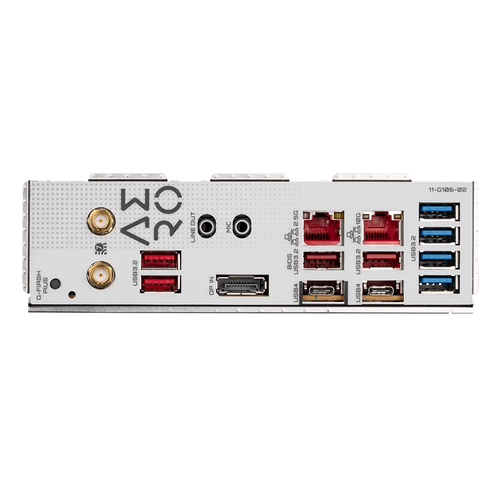

| Rear panel I/O ports |
| Headphone outputs |
2 |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
0 |
| HDMI ports quantity |
0 |
| VGA (D-Sub) ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
0 |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| Ethernet interface type |
10 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Windows operating systems supported |
Windows 11 x64 |
| PC health monitoring |
Fan, Temperature, Voltage, Water cooling |
| Product colour |
Black |
| Audio output channels |
2.0 channels |
| Audio chip |
Realtek ALC4080 |
| Motherboard chipset |
AMD TRX50 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
Extended ATX |
| Component for |
PC |
| Expansion slots |
| Number of M.2 (M) slots |
4 |
| PCI Express x16 (Gen 5.x) slots |
2 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x16 slots |
3 |
| BIOS |
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
| Clear CMOS button |
Yes |
| Clear CMOS jumper |
Yes |
| ACPI version |
5.0 |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Battery |
| Battery type |
CR2032 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells |
1 |
| Battery weight |
3 g |
| Lithium weight per battery |
0.07 g |
| Logistics data |
| Country of origin |
China |
| Products per shipping (inner) case |
1 pc(s) |
| Packaging data |
| Package weight |
3.04 kg |
| Package height |
80 mm |
| Package depth |
294 mm |
| Package width |
345 mm |
| Weight & dimensions |
| Height |
35 mm |
| Depth |
264 mm |
| Width |
305 mm |
| Packaging content |
| Bundled software |
Norton Internet Security (OEM version), LAN bandwidth management software |
| Batteries included |
Yes |
| Other features |
| Maximum internal memory |
1 TB |
| Technical details |
| Warranty period |
3 year(s) |
