Are you tired of using slow and unreliable computers for your industrial needs? Do you want a powerful and efficient solution that can handle your workload with ease? Look no further than the GigaIPC QBiX-Pro-AMDA1605H-A1, AMD Ryzen V1605B, Industrial PC. This powerful machine is designed to provide fast and reliable performance, making it perfect for a variety of industrial applications. With its advanced features and durable design, it's the perfect solution for anyone looking to upgrade their industrial computing setup. Many people struggle with slow computers that can't keep up with their workload, but with the GigaIPC, you can say goodbye to those frustrations and hello to a more efficient and productive work experience.

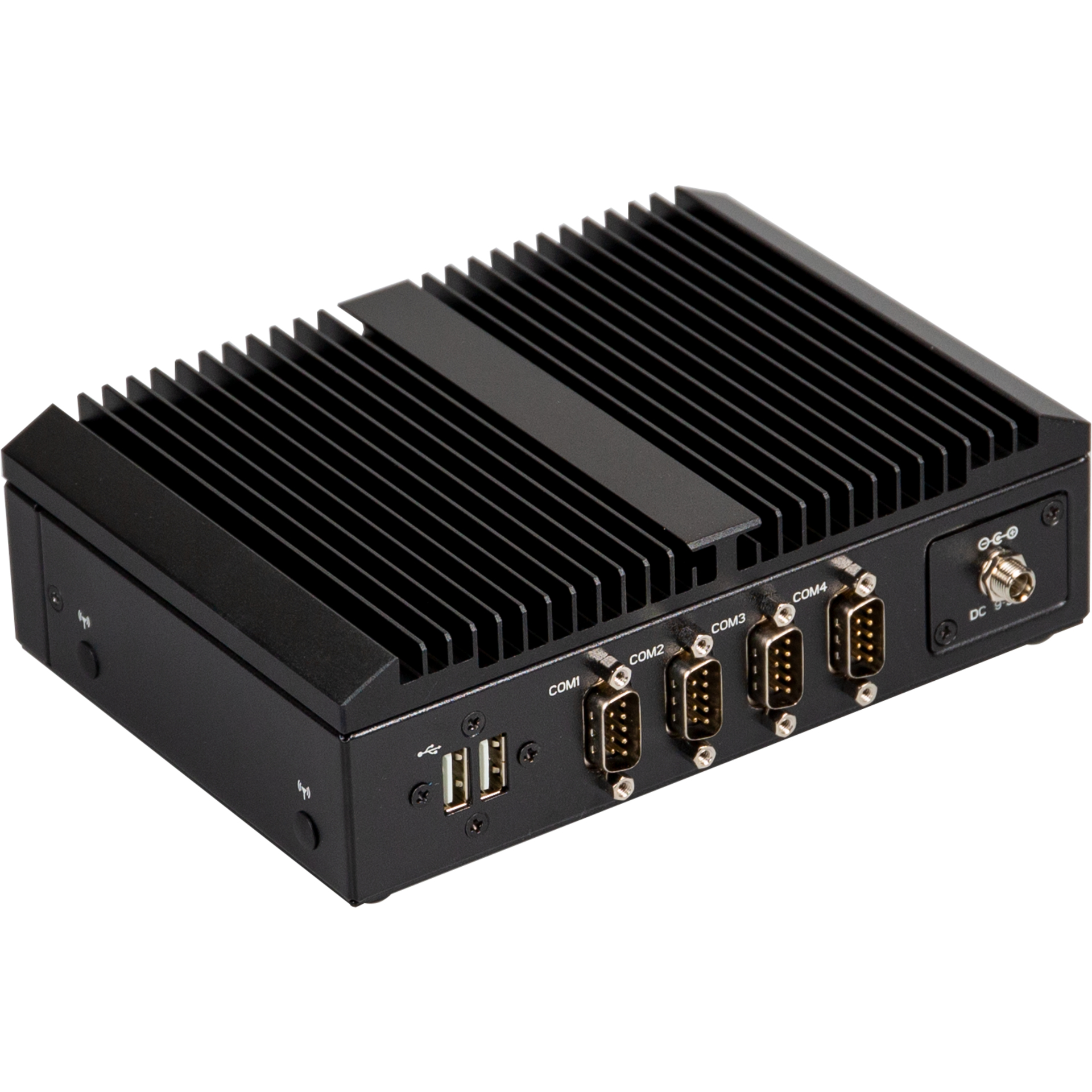

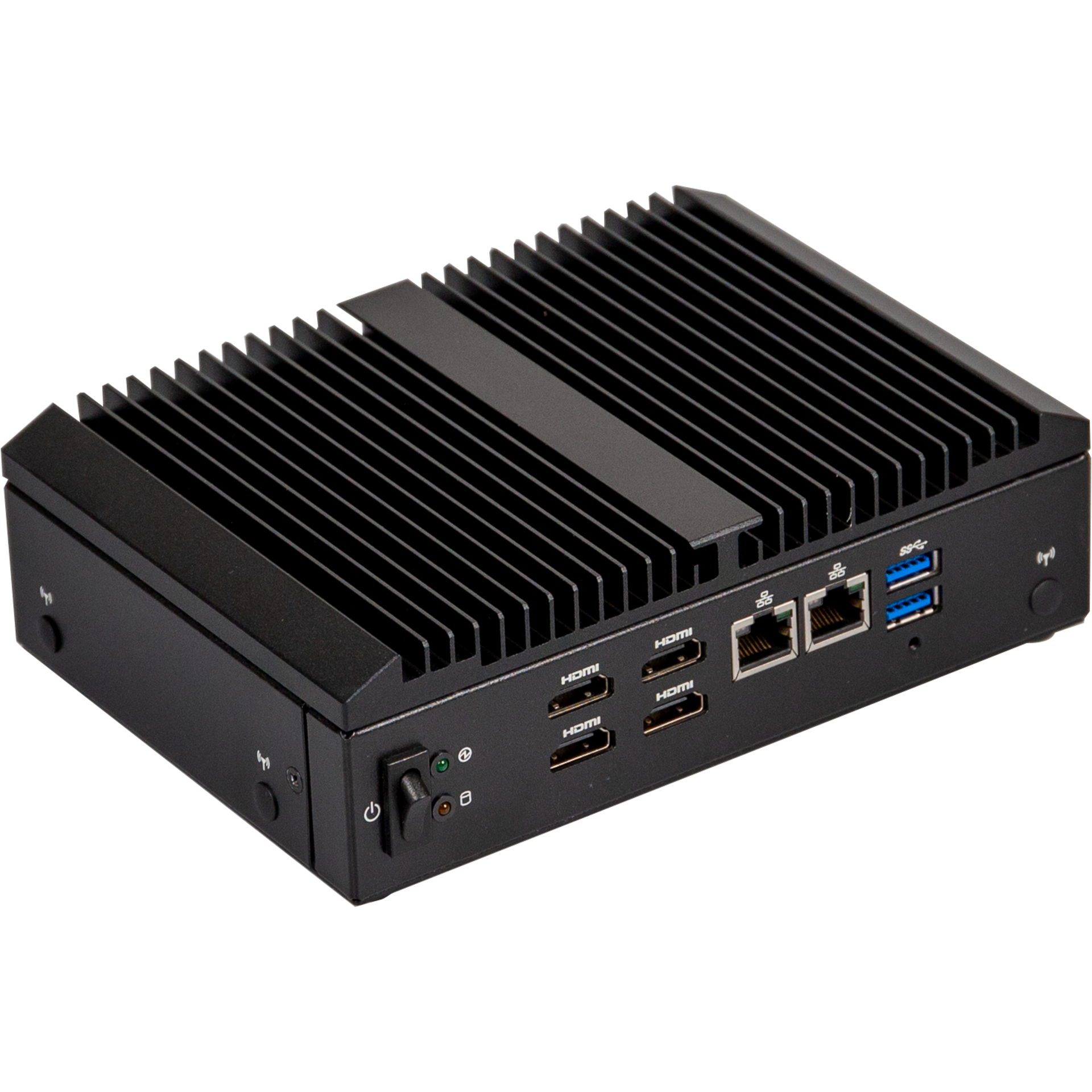

GigaIPC QBiX-Pro-AMDA1605H-A1, AMD Ryzen V1605B, Industrial PC
The GigaIPC QBiX-Pro-AMDA1605H-A1, AMD Ryzen V1605B, Industrial PC solves the problem of slow and unreliable computing in industrial settings. This problem matters to users because it can lead to decreased productivity and increased downtime, ultimately affecting their bottom line. The GigaIPC provides a clear solution by offering a powerful and efficient computing solution that can handle demanding workloads with ease. With its advanced features and durable design, it's the perfect solution for anyone looking to upgrade their industrial computing setup. The GigaIPC is designed to provide fast and reliable performance, making it perfect for a variety of industrial applications, including manufacturing, logistics, and more.
Key Features
- AMD Ryzen V1605B processor, providing fast and reliable performance
- DDR4 memory, providing high-speed data transfer and low power consumption
- 2 x GbE LAN ports, providing fast and reliable networking
- 4 x HDMI ports, providing high-quality video output
- 1 x 2.5" HDD/SSD slot, providing ample storage space
- 1 x M.2 M-Key slot, providing high-speed storage and networking options
- 1 x Full-size Mini PCIe slot, providing expansion options for Wi-Fi, Bluetooth, and more
- Onboard TPM 2.0 security chip, providing enhanced security and protection
- Wide operating temperature range, making it perfect for harsh environments
- Low power consumption, making it perfect for applications where power is limited
- Durable design, resistant to dust and moisture, making it perfect for harsh environments
Specifications
| Dimension |
178W x 125D x 52.7H(mm) |
| CPU |
AMD Ryzen™ V1605B Embedded Processor
14nm, 4 cores, 8 threads, 2.0 GHz, up to 3.6GHz
TDP 25W
2MB of shared L2 plus 4MB of shared L3 total |
| Chipset |
SoC |
| Memory |
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB,
Support Dual channel DDR4 2400MHz memory modules
|
| Ethernet |
2 x GbE LAN Ports (Realtek® RTL8111HS) |
| Graphics Support |
Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics:
4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
Support EDID emulation with AMD graphic driver/utility |
| Audio |
Realtek® Audio Codec |
| Storage |
1 x 2.5" HDD/SSD (SATA 6Gb/s) |
| Expansion-Slots |
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module |
| Front I/O |
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
4 x HDMI
1 x Power switch
1 x Power & HDD LED |
| Rear l/O |
2 x USB 2.0
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
2 x COM Ports (RS-232)
1 x Screw Type DC Jack |
| Side I/O |
2 x External Antenna Holes (Optional) |
| TPM |
Onboard TPM 2.0 security chip
INFINEON SLB9665TT2.0 |
| Power |
+9V~36VDC (Adapter 19V/65W) |
| Operation Temperature |
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage |
| Vibration During Operation |
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation |
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Order Information |
6BQP1605AMR-SI (Box packing) |
| Optional Kit |
Wall mount (Optional) |
