Finding a reliable platform for 5G experiments can be frustrating. Many developers struggle with boards that lack proper interfaces, are hard to power, or cannot fit into a small prototype. When the hardware does not match the speed of 5G, projects stall and budgets grow. The GL.iNet M2 5G Development Board solves these issues with a compact design, ready-to-use iNet software, and all the connections you need to start testing right away.

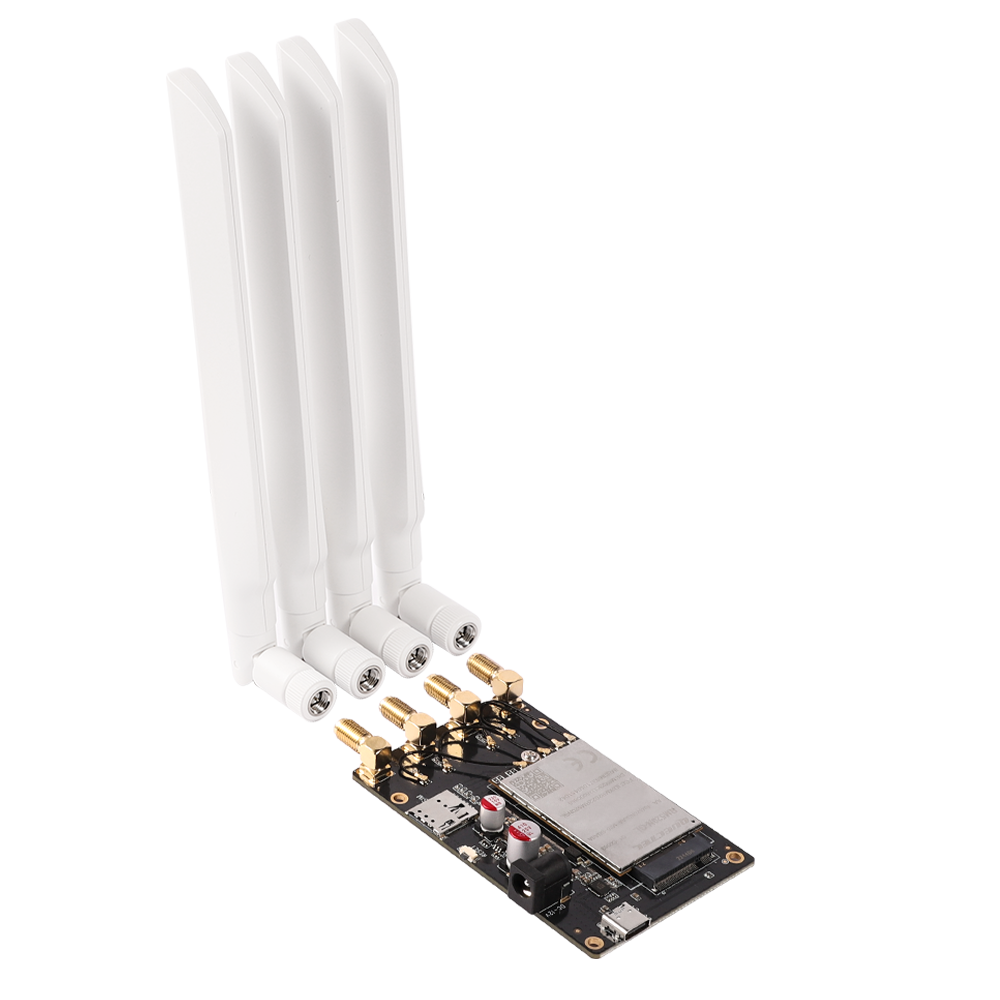

GL.iNet GL-M2 5G WWAN Development Board
Imagine a tiny board that brings full 5G speed to your lab without a mess of cables. The GL.iNet M2 is that board. It runs the iNet operating system, giving you a web-based console and easy access to network tools. If you have ever wasted time configuring drivers or searching for a compatible SIM slot, this board removes those obstacles. You get a ready-made gateway that lets you focus on building, testing, and scaling your IoT or edge-AI projects.

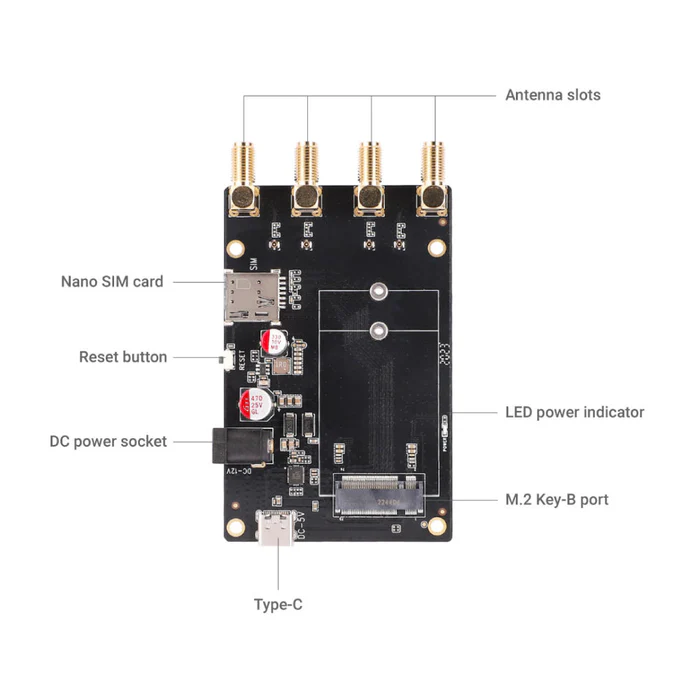

Key Features
- 1 x DC Power Socket for stable 12 V input.
- 1 x USB-C port for data and power.
- 1 x M.2 Key-B slot for additional storage or modules.
- 1 x Nano SIM slot for easy 5G activation.
- Reset button for quick reboot during development.
- Supports OpenWrt-based iNet OS with built-in VPN and firewall.
- Four built-in 5G antennas for strong signal reception.
- Lightweight PCB design makes it easy to mount in custom enclosures.
- Ready-to-use software image reduces setup time to minutes.
Specifications
| Interface |
|
| LED Indicator |
1 x red LED indicator |
| USB Port |
1 x USB 3.1 Type-C |
| Reset Button |
Press and hold for 2 seconds,
and then release to repair network |
| Power Port |
DC, 12V/1.5A |
| 5G Module |
Optional |
| Hardware |
|
| External Antennas |
4 x 5G Antennas |
| Dimension / Weight |
91 x 57.5 x 1.6 mm / 150g (With 5G Module)
(M2 Dev Board 39g, 4 x 5G Antennas 102g, 5G Module 9g) |
| Environment |
|
| Operating Temperature |
0~40°C (32~104°F) |
| Storage Temperature |
-20 ~ 70°C (-4 ~ 158°F) |
| Operating Humidity |
5%~95%, non-condensing |
| Storage Humidity |
5%~95%, non-condensing |
| Package List |
1 x GL-M2 Development Board
4 x 5G Antennas
4 x SMA Cable Connectors
2 x Screws
1 x DC Power Adapter
1 x Universal Plug Adapter (US, EU, UK & AU)
1 x 5G Module (Optional)
1 x Type-C Cable |
