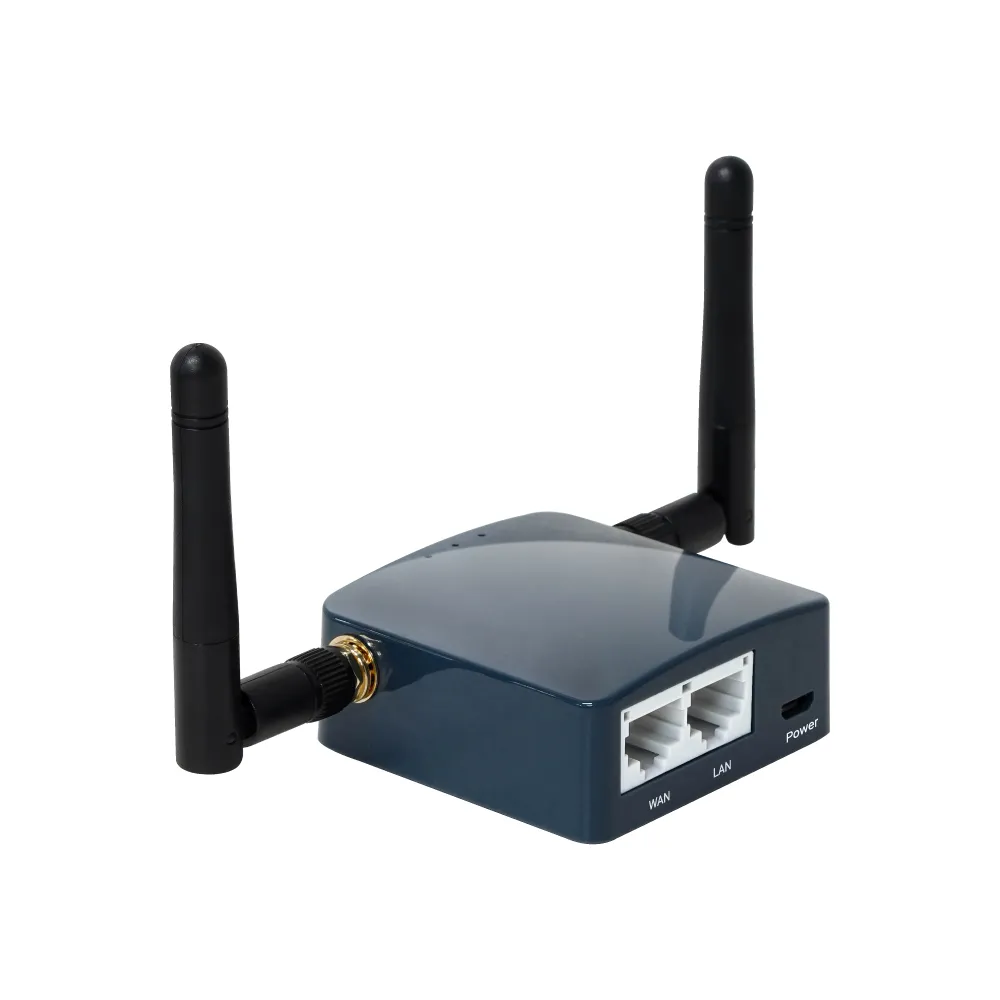

Mini Smart Router
Shadow (GL-AR300M Series) offers a compact and portable design, making it ideal for small businesses, home use, and travel. Despite its mini size, it provides reliable wireless connectivity, ensuring seamless internet access in a variety of environments. With Shadow, you get a lightweight router that ensures you stay connected no matter where you are.
- Max.300Mbps Wi-Fi Speed
- OpenVPN speeds up to 15Mbps; WireGuard® speeds up to 50Mbps
- Designed to be Portability and Travel Convenience
Secure Your Connection with Built-In VPN Support
Shadow not only comes with a strong firewall but also supports OpenVPN, WireGuard®, and DNS server to boost your online security. With over 30 VPN service providers to choose from, Shadow allows you to configure it as a VPN server, ensuring secure and private access to your files as if you were connected from your home network.
Cloudflare DNS over TLS
DNS over TLS is a security protocol for encrypting and wrapping Domain Name System (DNS) queries and answers via the Transport Layer Security (TLS) protocol. The goal of the method is to increase user privacy and security by preventing eavesdropping and manipulation of DNS data via man-in-the-middle attacks.
Key features:
- QCA9531 SoC processor running at 650MHz with 128MB DDR2 RAM and 16MB NOR Flash
- 2.4GHz Wi-Fi connectivity with speeds up to 300Mbps supporting IEEE 802.11b/g/n
- Compact ultra-lightweight design measuring 58 × 58 × 25mm and weighing only 40g
- Built-in DIY expansion features including PCIe, UART, and USB GPIO control
- Low power consumption under 2W with Micro USB power input for portable and embedded applications
Specifications
|
Interface
|
1 x WAN Ethernet port
1 x LAN Ethernet port
3 x LEDs
1 x USB 2.0 port
1 x Micro USB power port
1 x Reset button
1 x Toggle button
|
|
CPU
|
QCA9531, @650MHz SoC
|
|
Memory / Storage
|
DDR2 128MB / NOR Flash 16MB
|
|
Protocol
|
IEEE 802.11b/g/n
|
|
Ethernet Port
|
1WAN, 1LAN
|
|
16MB Nor Flash
|
YES
|
|
USB GPIO Control
|
YES
|
|
Wi-Fi Speed
|
300Mbps (2.4GHz)
|
|
TX Power
|
<20dBm
|
|
Ethernet Speed
|
10/100Mbps
|
|
DIY Features
|
PCIe, UART
|
|
LEDs
|
Power / Wi-Fi
|
|
Power Input
|
Micro USB, 5V/2A
|
|
Power Consumption
|
<2W
|
|
Operating Temperature
|
0 ~ 40°C (32 ~ 104°F)
|
|
Storage Temperature
|
-20 ~ 70°C (-4 ~ 158°F)
|
|
Dimension / Weight
|
58 x 58 x 25mm / 40g
|
