Imagine a desktop that fits in the palm of your hand yet can run the toughest AI models, 4K video edits, and high-speed gaming without lag. The GMKtec EVO-X2, AMD Ryzen AI Max+ 395, 64GB/1TB AI Mini PC is that machine. It is built for creators, gamers, and small-office teams who struggle with bulky towers, noisy fans, and slow performance. If you need raw power in a tiny, quiet box, this mini PC is the answer.

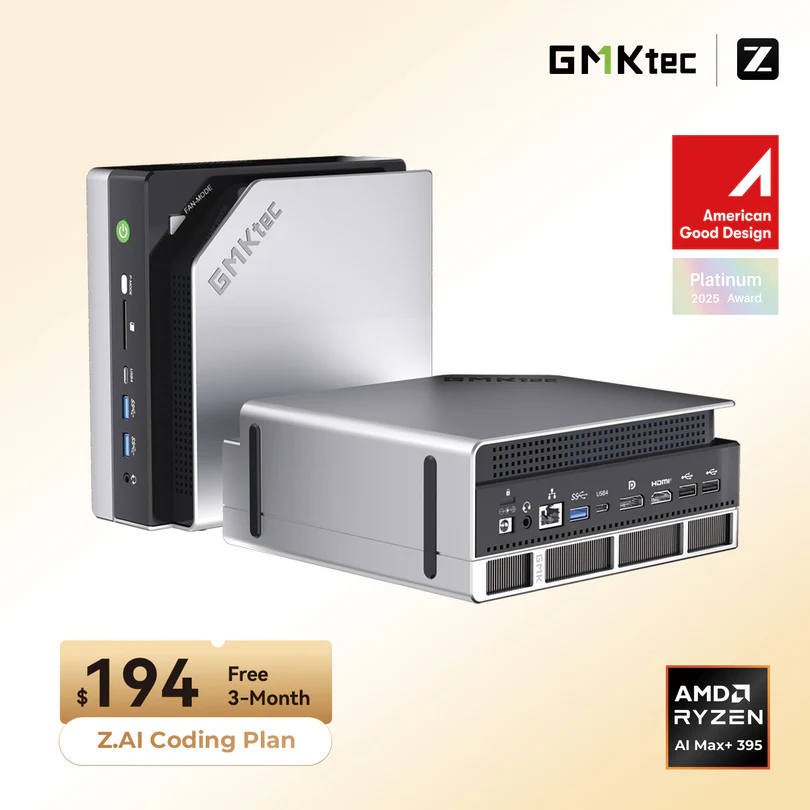

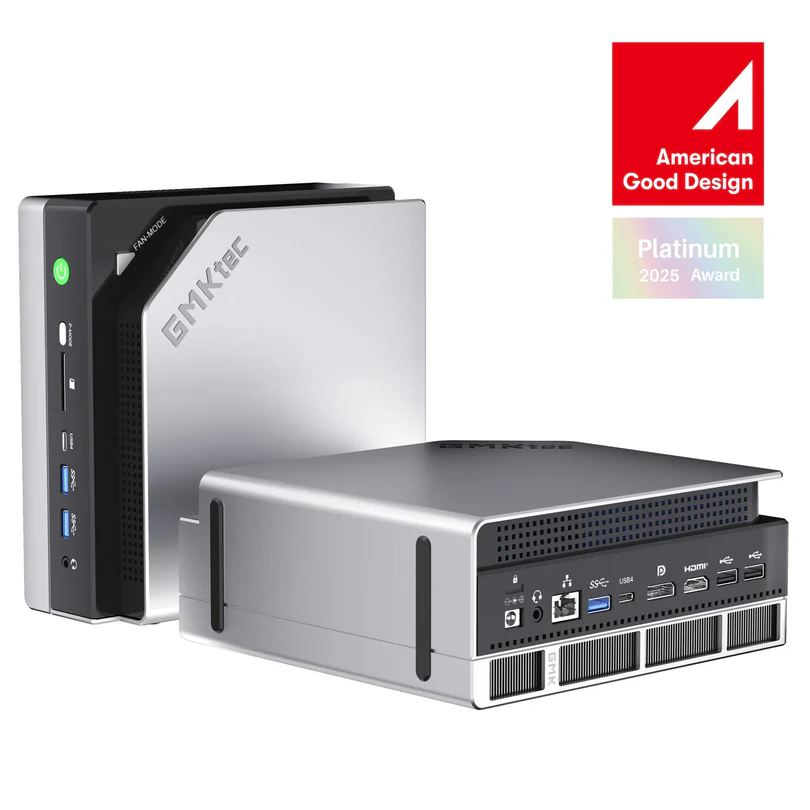

GMKtec EVO-X2, AMD Ryzen AI Max+ 395, 64GB/1TB AI Mini PC
Many users waste time waiting for renders, AI inference, or game loading because their old computers cannot keep up. The slowdown hurts deadlines, reduces productivity, and makes entertainment frustrating. The GMKtec EVO-X2 solves this by pairing a 16-core Ryzen AI Max+ 395 CPU with 64 GB of LPDDR5X memory and a fast 2 TB PCIe 4.0 SSD. Together they deliver desktop-class speed while staying under 80 mm tall, so you get instant results without a noisy, space-eating tower.
Key Features
- AMD Ryzen AI Max+ 395 CPU - 16 cores, 32 threads, up to 5.1 GHz.
- Radeon 8060S graphics - 40-core RDNA 3.5 for smooth gaming.
- AI NPU with 50 TOPS, delivering AI speed comparable to high-end GPUs.
- 64 GB LPDDR5X RAM at 8000 MHz - non-upgradeable but ultra-fast.
- 2 TB PCIe 4.0 M.2 SSD, dual slots support up to 16 TB total.
- Video output up to 7680 4320 @ 60 Hz via HDMI, DisplayPort, or USB4.
- Wi-Fi 7 (RZ717) and 2.5 G/1 G Ethernet for reliable networking.
- Bluetooth 5.4 for wireless peripherals.
- Front panel: USB-A 3.2, USB-C (USB4), audio combo, SD-XC reader.
- Rear panel: HDMI 2.1, DisplayPort 1.4, multiple USB-A, USB-C, LAN, audio.
- Runs Windows 11 Pro or Ubuntu, ready for professional workflows.
Specifications
| CPU |
AMD Ryzen™ AI Max+ 395
• 16 cores / 32 threads
• TSMC 4nm FinFET process
• Up to 5.1 GHz (MAX)
• 16 MB L2 Cache / 64 MB L3 Cache
• TDP: runs steadily at 120W (peak up to 140W) |
| GPU |
Radeon 8060S Graphics
• 40-core RDNA 3.5 architecture |
| AI NPU |
Based on XDNA 2 architecture
• 50 TOPS
• Overall processor performance up to 126 TOPS
• LM Studio: AI performance 2.2× higher than NVIDIA RTX 4090 with lower power consumption |
| Memory (RAM) |
Onboard LPDDR5X (non-upgradeable)
• 64GB
• Speed: 8000MHz |
| Primary Storage (ROM) |
PCIe 4.0 M.2 2280 SSD
• Capacities: 2TB
• Supports PCIe 3.0/4.0 (SATA drives are not supported) |
| Internal Storage Expansion |
Dual M.2 2280 slots
• Maximum total storage: 16TB (each slot supports up to 8TB via PCIe GEN4 x4) |
| Video Output |
Available via HDMI, DisplayPort, and USB4
• Maximum supported resolution: 7680×4320 @ 60Hz |
| Network (WiFi & LAN) |
WiFi:
• Wifi7: RZ717(MT7925)
Ethernet:
• 1 × RJ45 Gigabit LAN (2.5G, 8125BG) |
| Bluetooth |
Bluetooth 5.4 |
| Power – Charger |
DC 19.5V, 11.8A (~230.1W)
• AC Input: 100–240V, 50/60Hz, 4.0A |
| Front Panel I/O |
• 2 × USB-A 3.2 Gen2
• 1 × Audio Combo (3.5mm jack)
• 1 × USB Type-C (USB4.0)
• 1 × SD Card Reader (SD4.0, supports SDXC)
• Buttons: Power, System Fan Lighting Control, Performance Mode Switch |
| Rear Panel I/O |
• 1 × DisplayPort 1.4 HBR3 (8.1 Gbps)
• 1 × HDMI 2.1 (FRL at 8 Gbps)
• 1 × USB-A 3.2 Gen2
• 2 × USB-A 2.0
• 1 × USB Type-C (USB4.0)
• 1 × Audio (3.5mm CTIA)
• 1 × DC IN (5525 interface)
• 1 × RJ45 Gigabit LAN (2.5G, 8125BG) |
| OS |
• Window 11 Pro / Ubuntu |
| Chassis / Form Factor |
• Dimensions: 193 mm x 185.8 mm x 77 mm
• Chassis finish: B/C-grade metal with CNC sandblasted oxidized finish; A-shell plastic spray coating |
| LLM support |
64GB+1TB：DeepSeek-R1: 32B |
