Many people need a fast computer but have limited desk space and a tight budget. A bulky tower can take up valuable room and cost more than a simple laptop. When the machine is slow, everyday tasks like video calls, browsing, or light editing become frustrating. The GMKtec NucBox M3 Pro, Intel Core i5-13500H, Barebone Mini PC gives you desktop-class power in a pocket-size case, so you get speed without the clutter.

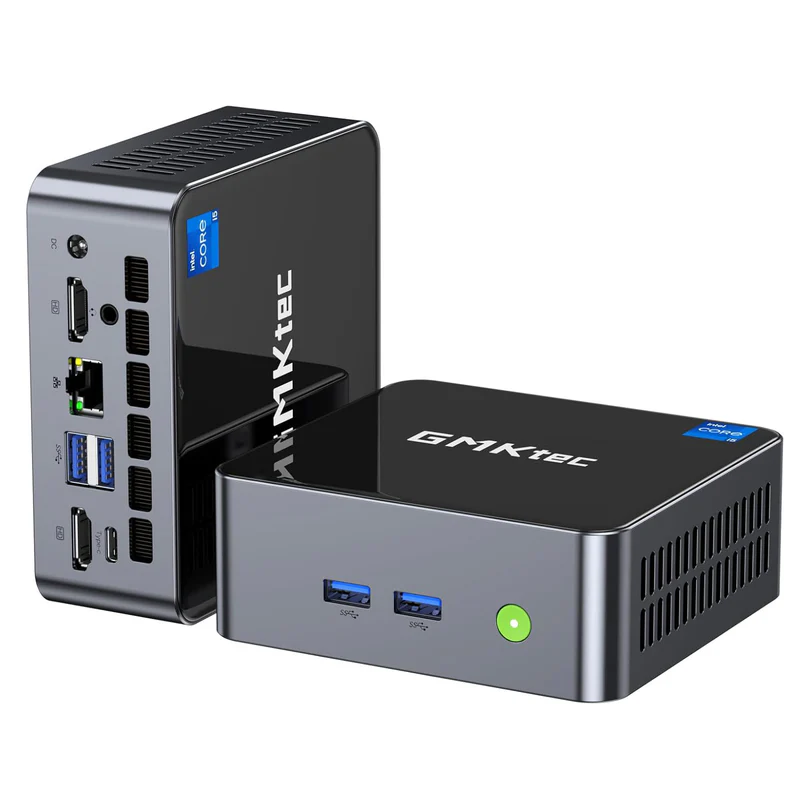

GMKtec NucBox M3 Pro, Intel Core i5-13500H, Barebone Mini PC with GMKtec
Imagine a computer that fits behind a monitor yet runs the latest 13th-gen Intel i5 processor. That is the GMKtec NucBox M3 Pro. It is a barebone mini PC designed for home offices, small studios, and anyone who wants a clean workspace. If you are tired of slow load times or noisy fans, this tiny box offers silent cooling and enough cores to handle multitasking, streaming, and light gaming. GMKtec builds it to be easy to upgrade, so you can add memory or storage later.
Key Features
- 13th Gen Intel Core i5-13500H, 12 cores / 16 threads
- Intel Iris Xe graphics with 80 execution units
- Dual HDMI and USB-C video output, supports up to 4K @ 60 Hz
- Front I/O: 2 USB 3.2 Gen2 Type-A, 1 USB 3.2 Gen2 Type-C, 3.5 mm audio jack
- Rear I/O: 2 USB 3.2 Gen1, 2 HDMI 2.0, 2.5 G LAN, RJ45, lock slot, power button
- Wi-Fi 6 (1201 Mbps) and Bluetooth 5.2 for wireless connectivity
- Silent mode at 28 W, balanced at 35 W, performance up to 40 W
- Supports Windows 11 Pro or Ubuntu, giving flexibility for work or play
- Built-in button battery and 100 W power input for reliable operation
Specifications
| Processor |
|
| CPU |
13th Gen Intel® Core™ i5-13500H |
| Cores / Threads |
12 Cores / 16 Threads |
| Process Technology |
Intel 7 Process |
| Max Boost Clock |
4.7 GHz |
| Cache |
18 MB |
| Power Modes |
Silent Mode: 28W, Balanced Mode: 35W, Performance Mode: 40W (Peak 45W) |
| Cooling |
Copper Pipe + Single Fan Cooling (Silent Design) |
| Graphics |
|
| GPU |
Intel® Iris® Xe Graphics |
| Max Dynamic Frequency |
1.45 GHz |
| Execution Units |
80 EU |
| Display |
|
| Video Output |
Dual HDMI + USB Type-C Triple Display Output |
| Maximum Resolution |
Up to 4K |
| Front I/O |
|
| USB |
2 × USB 3.2 Gen2 Type-A (10Gbps), 1 × USB 3.2 Gen2 Type-C (DP 4K@60Hz, no charging) |
| Audio |
1 × 3.5 mm Audio Jack (CTIA) |
| Rear I/O |
|
| USB |
2 × USB 3.2 Gen1 Type-A (5Gbps) |
| HDMI |
2 × HDMI 2.0 (4K@60Hz) |
| Ethernet |
1 × RJ45 2.5G LAN |
| DC Input |
1 × DC IN (5.5/2.5 mm, 20V/5A) |
| Security |
1 × Lock Slot |
| Controls |
1 × Power Button |
| Networking |
|
| Wi-Fi |
Wi-Fi 6, Max Speed: 1201 Mbps |
| Bluetooth |
Bluetooth 5.2 |
| Power |
|
| Power Input |
DC IN (5.5/2.5 mm), 20V/5A, 100W |
| Battery |
Built-in Button Battery |
| Operating System |
|
| OS Support |
Windows 11 Pro, Ubuntu |
| Physical |
|
| Dimensions |
128.5 × 127 × 51 mm (Without Feet) |
| Weight |
Approx. 480 g (Barebone) |
