Many people need a fast computer but have limited desk space, noisy fans, or a tight budget for a full-size tower. When the machine is too big it clutters the room, and when it is too slow it slows down work, gaming, or video calls. The GMKtec NucBox M6 Ultra, AMD Ryzen 5 7640HS, Barebone Mini PC gives you desktop-class performance in a pocket-size box, so you can keep your workspace tidy and enjoy quiet, reliable power wherever you sit.

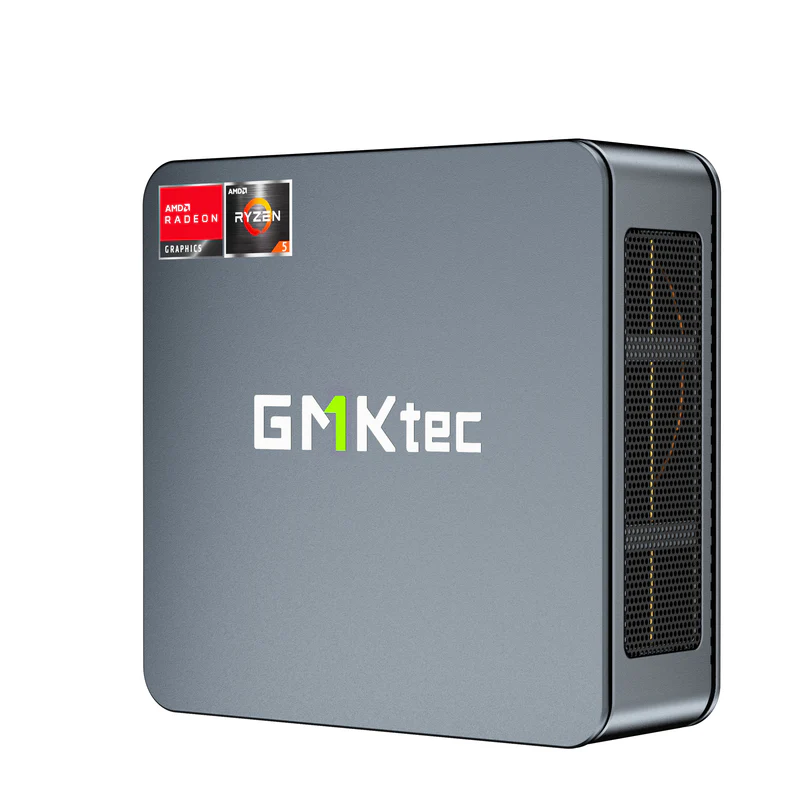

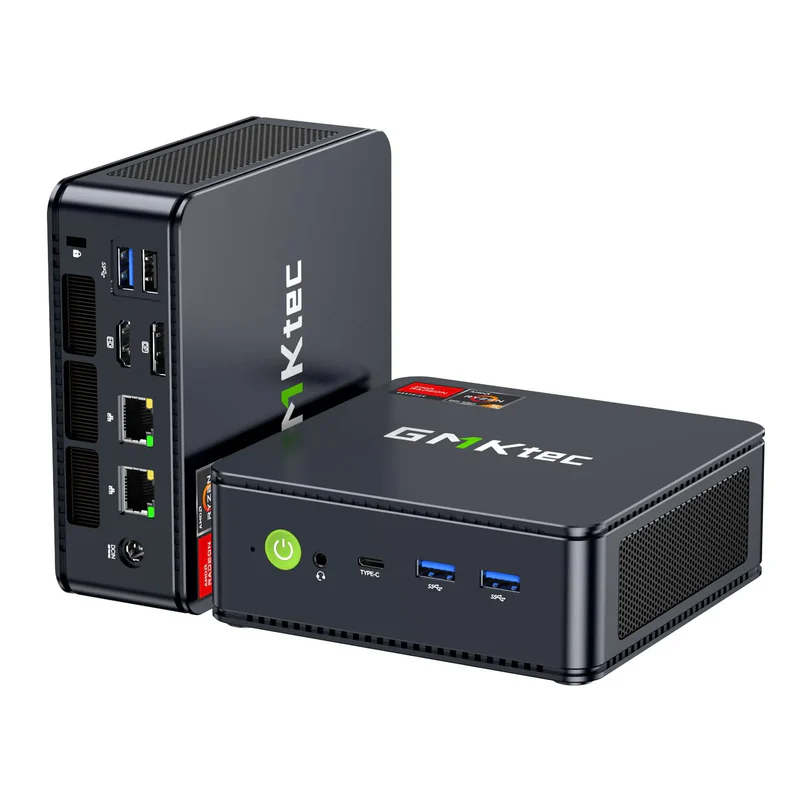

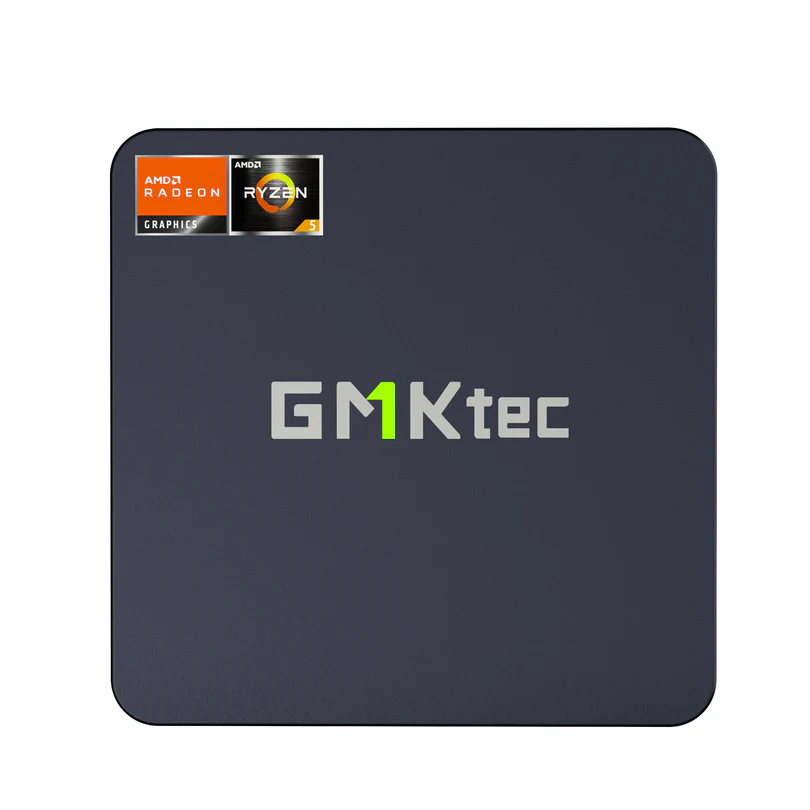

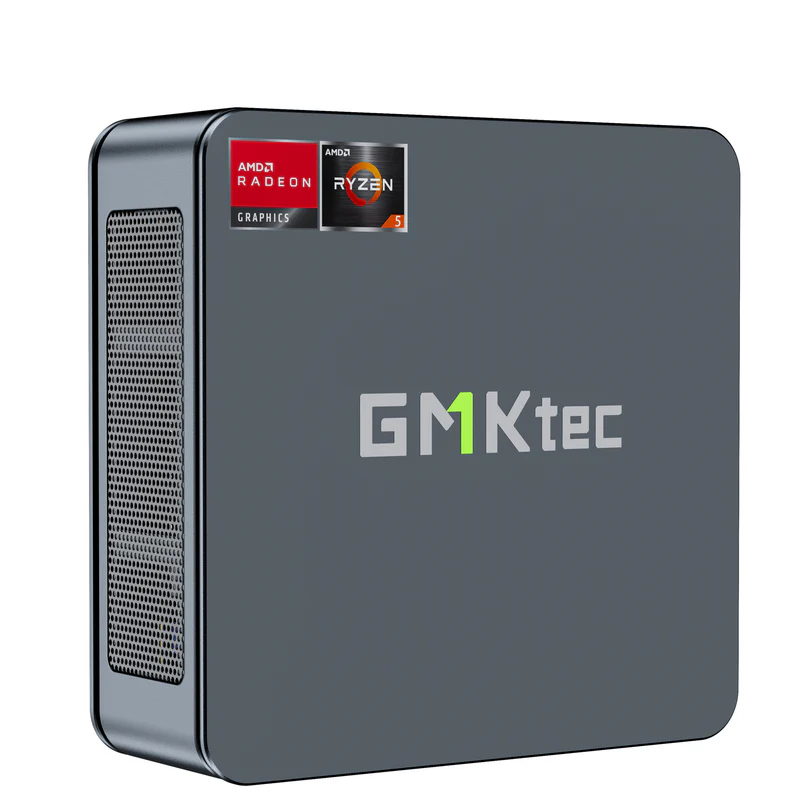

GMKtec NucBox M6 Ultra, AMD Ryzen 5 7640HS, Barebone Mini PC with GMKtec
Imagine a tiny PC that runs Windows 11 Pro, streams 8K video, and handles demanding games without heating up your room. That is what the GMKtec NucBox M6 Ultra does. It is a barebone mini PC built around the latest AMD Ryzen 5 7640HS processor and Radeon 760M graphics. If you struggle with a sluggish laptop or a noisy desktop, this compact machine solves the problem by delivering high-speed cores, fast SSD slots, and modern connectivity in a chassis that weighs less than a kilogram.
Key Features
- AMD Ryzen 5 7640HS processor, 6 cores, up to 5.0 GHz boost.
- AMD Radeon 760M graphics with RDNA 3 architecture.
- Two DDR5 SO-DIMM slots, support up to 128 GB RAM.
- PCIe 3.0 M.2 SSD (512 GB or 1 TB) plus two PCIe 4.0 4 M.2 slots for up to 8 TB each.
- Triple video output: HDMI 2.0, DisplayPort, and USB4, supporting up to 8K resolution.
- Wi-Fi 6E (up to 2.4 Gbps) and Bluetooth 5.2 for wireless connectivity.
- Dual 2.5 G Ethernet ports for wired network stability.
- Four USB-A ports (three USB 3.2 Gen2, one USB 2.0) and one USB4 full-function port.
- Built-in coin cell battery for safe power-off and a 120 W 19 V adapter.
Specifications
| Model |
GMKtec NucBox M6 Ultra |
| CPU Model |
AMD Ryzen™ 5 7640HS |
| CPU |
AMD Ryzen™ 7000 Series Processor, 6 Cores, 12 Threads, TSMC 4nm FinFET process, Base Frequency 4.3GHz,
Max Boost Frequency up to 5.0GHz, 6MB L2 Cache, 16MB L3 Cache, Zen 4 Architecture
|
| CPU Socket / Package |
TSMC 4nm FinFET |
| GPU |
AMD Radeon™ 760M Graphics, 8 Cores, up to 2600MHz, AMD RDNA 3 Architecture |
| Memory (RAM) |
2 × SO-DIMM Slots, DDR5 Memory, 16GB / 32GB configurations, Supports up to 128GB |
| Storage (ROM) |
PCIe 3.0 M.2 2280 SSD, 512GB / 1TB options |
| Storage Expansion |
2 × M.2 2280 PCIe 4.0 ×4 SSD slots, supports up to 8TB per slot |
| Graphics Output |
Triple display output via HDMI + DisplayPort + USB4, supports up to 8K resolution |
| Network |
Wi-Fi 6E (up to 2.4Gbps)
Bluetooth 5.2
Dual 2.5G Ethernet LAN |
| Power |
Built-in coin cell battery
DC Power Adapter 19V / 6.32A, 120W |

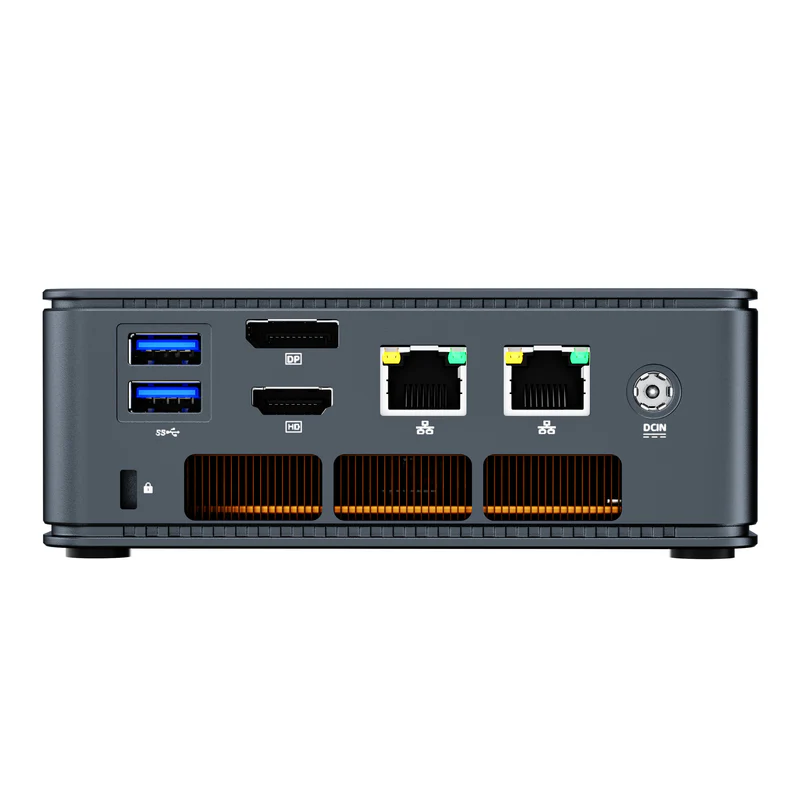

| External Ports |
USB-A: 3 × USB 3.2 Gen2 (10Gbps) + 1 × USB 2.0
USB4: 1 × USB4 full-function port
HDMI: 1 × HDMI 2.0 (up to 4K@60Hz)
DisplayPort: 1 × DisplayPort (up to 8K@60Hz)
Audio: 1 × 3.5mm CTIA Audio Jack
LAN: 2 × RJ45 2.5G Ethernet
Power: 1 × DC IN (5.5/2.5mm)
Reset: 1 × Reset Button |
| Operating System |
Windows 11 Pro |
| Language Support |
14 Languages Supported (Default English): Simplified Chinese, Traditional Chinese, French, Dutch,
Italian, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic
|
| Chassis Dimensions |
128.8 × 127 × 47.8 mm |
| Weight |
528 g |
| Color |
Bronze |
| Working Temperature |
0°C to 40°C |
| Warranty |
1-Year Limited Warranty |
| Certifications |
CCC, CE, FCC, RoHS, MIC, CEC, China Energy Label, UL Report |
