| Protocols/Standards |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, SNMP, 802.1X, TLS, SRTP, IPv6 |
| Network Interfaces |
Dual switched auto-negotiation 10/100 Mbps Ethernet ports (GRP2602W Only) |
| Wi-Fi |
GRP2602W: integrated dual-band (2.4 GHz and 5 GHz) Wi-Fi 6 (802.11a/b/g/n/ac/ax) for hardware version 5.0 and above |
| Graphic Display |
132 x 48 (2.41’’) backlit graphical LCD display |
| Feature Keys |
• Line Keys: 2 line keys with dual-color LED and support for 4 SIP accounts
• Softkeys: 4 XML programmable context sensitive keys
• Navigation: 5 navigation / menu keys
• 8 fixed keys: MESSAGE (with LED indicator), TRANSFER, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL- |
| Auxiliary Port |
1 × RJ9 headset jack (EHS compatible: Plantronics, Jabra, Sennheiser and more) |
| Voice Codecs and Capabilities |
Support for G.729A/B, G.711μ/a-law, G.726, G.722 (wide-band), G.723.1, iLBC, Opus, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), VAD, AEC, CNG, PLC, AGC, AJB |
| Telephony Features |
Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA) / bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 800 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and failover |
| HD Audio |
Yes, HD handset and speakerphone with support for wideband audio |
| Base Stand |

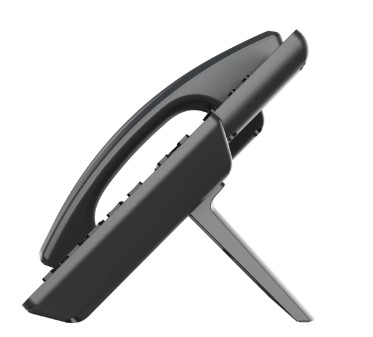

Yes, 1 angle position available (45°), Wall Mountable (*wall-mount bracket sold separately) |
| QoS |
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security |
• TLS 1.3 support
• Web Access through HTTPS, with user- and administrator-level passwords based on SHA-256 and SHA-256-sess
• SIP support for TLS, with mutual certificate validation (both sides)
• SIP authentication algorithms based on SHA-256, SHA-256-sess, SHA-512/256-sess, and MD5-sess
• Media support for DTLS-SRTP and SDES-SRTP with crypto AEAD-AES-256-GCM, AES_256_CM_HMAC_SHA1_32, AES_256_CM_HMAC_SHA1_80, AES_CM_128_HMAC_SHA1_32, and AES_CM_128_HMAC_SHA1_80
• 802.1X Media access control |
| Multi-language |
Arabic, Catalan, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Dutch, English, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Latvian, Polish, Portuguese, Russian, Slovak, Slovenian, Spanish, Swedish, Turkish, Ukrainian |
| Upgrade/Provisioning |
Firmware upgrade via FTP, TFTP, TFTPS, HTTP and HTTPSMass provisioning using GDMS/TR-069 or AES encrypted XML configuration file |
| Power & Green Energy Efficiency |
Universal Power Adapter:Input: 100–240 V AC, 50–60 Hz; Output: 5 V DC, 600 mAPoE (GRP2602P / GRP2602G): IEEE 802.3af Class 1, 3.84 W; IEEE 802.3az (EEE) |
| Temperature and Humidity |
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)Storage Temperature: -10 °C to 60 °C (14 °F to 140 °F)Humidity: 10%–90%, non-condensing |
| Package Content |
GRP2602 phone, handset with cord, base stand, universal power supply (not included with GRP2602P), network cable, Quick Installation Guide |
| Physical |
Dimension: 208 mm × 180 mm × 63.4 mm (8.19” × 7.09” × 2.50”)(L × W × H)(With Handset)
Unit Weight: 670 g (1.48 lb)
Package Weight: 880 g (1.94 lb) |
| Compliance |
• FCC: Part 15 Subpart B, Class B; Part 15 Subpart E, 15.407; Part 15 Subpart C, 15.247
• CE: ETSI EN 301 893; ETSI EN 301 489-1; ETSI EN 301 489-17; ETSI EN 300 328; EN 62368-1; EN 62311; EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3
• IC: RSS-247 Issue 2; RSS-Gen Issue 5; ICES-003 Issue 7; CS-03 Part V
• RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 2772.2; AS/NZS 62368.1; AS/CA S004 |
