Many offices struggle with noisy hallways and slow communication between rooms. When you cannot hear a colleague or need to control lights and doors from a distance, work slows down and mistakes happen. The Grandstream GSC3575 gives you a clear, two-way voice link and lets you manage alarms, lights and doors from one easy screen. It solves the noise problem and adds instant control, so you stay focused and safe.

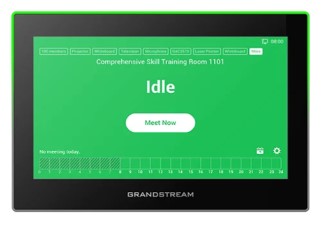

Grandstream GSC3575, 7" 2-way Control Station with Dual Band WiFi 6, Black with Grandstream
Imagine a meeting room where you can talk to the front desk, see who is at the door, and turn on the projector without leaving your seat. The Grandstream GSC3575 is a 7-inch touchscreen intercom and facility controller. It is built for offices, schools and hospitals that need fast, reliable communication and simple device control. If you have trouble hearing visitors or managing multiple alarms, this station gives you instant audio, video and relay control in one sleek panel.
Key Features
- 7-inch capacitive touch screen with 1024 600 resolution.
- Dual-color LED strip shows call status and room occupancy.
- 8 alarm inputs (6 short-in, 2 voltage-in) for flexible security.
- 2 relay outputs to control lights, doors or other equipment.
- 1 PoE Ethernet port (802.3af Class 3) for power and data.
- Bluetooth 5.0 for easy pairing with headsets.
- Micro-SD slot up to 512 GB for local recordings.
- Dual speakers and built-in microphone for clear sound.
- Wall-mount and desktop brackets included for flexible installation.
Specifications
| Dimension |
182 mm × 122 mm × 26.2 mm (7.17" × 4.80" × 1.03") |
| Package Dimension |
230 mm × 154 mm × 67 mm (9.06" × 6.06" × 2.64") |
| Unit Weight |
408 g (0.90 lb) |
| Package Weight |
729 g (1.61 lb) |
| Installation Methods |
Wall Mount, Desktop |
| Memory |
2 GB RAM, 8 GB eMMC Flash |
| Device Color |
White Black |
| LCD Display |
|
| Screen Size |
7" |
| Resolution |
1024 × 600 |
| Screen Type |
Capacitive Touch Screen, TFT LCD |
| LED |
Dual-color (Red/Green) |
| Meeting Room Panel |
Red/Green LED Light Strip on left, right, and top |
| Intercom and Facility Control Station |
Red/Green status indicator LED on top |
| Network Port |
1 × 10/100 Mbps PoE Ethernet port |
| Alarm Input |
8 channels: 6 × Alarm Short-In, 2 × Alarm Voltage-In |
| Relay Output |
2 channels, max 125 V AC/0.5 A or 30 VDC/2 A |
| Grounding |
2 × GND ports |
| USB Port |
1 × Type-A USB 2.0 port |
| TF Card Slot |
1 × microSD card slot (up to 512 GB) |
| Button |
1 × Reset Pinhole |
| Bluetooth |
Bluetooth 5.0 |
| Wi-Fi |
Dual-band Wi-Fi 6 802.11 a/b/g/n/ac/ax (2.4 GHz & 5 GHz) |
| Power Supply |
2-pin DC input: 12 V DC/1.5 A |
| PoE Standard |
802.3af Class3 |
| Microphone |
1 microphone |
| Speaker |
Dual speakers, 1.5 W |
| Max Resolution |
1280 × 720 |
| Max Frame Rate |
30 fps |
| Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature |
-10 °C to 60°C (14 °F to 140 °F) |
| Operating Humidity |
10%–90%, non-condensing |
| Storage Humidity |
10%–90%, non-condensing |
| Compliance |
FCC, CE, RCM, EAC |
| Primary Unit |
1 × HD Intercom and Facility Control Station |
| Manual and License |
1 × Quick Installation Guide; 1 × Certification Regulatory Information |
| Wall Mount Bracket |
1 × 0° Wall Mount Bracket |
| Desktop/Wall Mount Bracket |
1 × 20° Desktop/Wall Mount Bracket |
| Glass Adhesive Tape |
1 × Glass Adhesive Tape |
| Pan Head Tapping Screws |
6 × Pan Head Tapping Screws (ST3.5 × 33 mm) |
| Plastic Anchors |
6 × Plastic Anchors |
| Pan Head Machine Screws |
2 × Pan Head Machine Screws (M2.6 × 6 mm) |
