Product Code: APHO-156
MPN #: GWN7672L

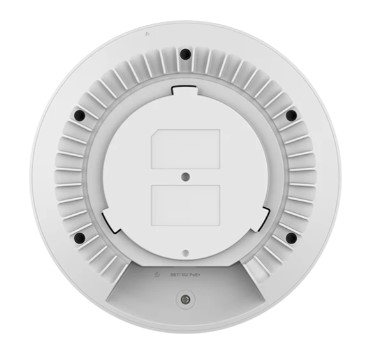

Tired of slow Wi-Fi, dropped video calls, and crowded networks? The Grandstream GWN7672L BE11000 Tri-Band Wi-Fi 7 Access Point is the answer. It is a high-performance wireless hub that brings the newest Wi-Fi 7 technology to your office, school, or home. If you struggle with many devices fighting for bandwidth, this access point gives you the speed and capacity you need to stay connected.
When many users share a single router, the network becomes a bottleneck and productivity drops. This matters because every lagging video conference or buffering stream costs time and frustration. The GWN7672L solves the problem with three separate radio bands, MU-MIMO, and 48 SSIDs, so each device gets its own slice of fast, reliable bandwidth. It turns a crowded Wi-Fi environment into a smooth, high-capacity network that works for work and play.
| Basic Unit | Dimension Ø220 mm × 48.5 mm (Ø8.66″ × 1.91″), Unit Weight 828.6 g (1.83 lb), Mounting Indoor Wall Mount, Ceiling Mount, and Junction Box Mount |
| Radio | 6 single-frequency antennas, 2.4 GHz, 5 GHz, 6 GHz |
| Antenna | 2.4 GHz: 2 × 3.5 dBi, 5 GHz: 2 × 5.5 dBi, 6 GHz: 2 × 5.5 dBi |
| MIMO | 2.4 GHz: 2×2:2, MU-MIMO, 5 GHz: 2×2:2, MU-MIMO, 6 GHz: 2×2:2, MU-MIMO |
| Frequency Bands | 2.4 GHz Radio: 2,400–2,483.5 MHz, 5 GHz Radio: 5,150–5,850 MHz, 6 GHz Radio: 5,945–7,125 MHz |
| Channel Bandwidth | 2.4 GHz: 20 and 40 MHz, 5 GHz: 20, 40, 80, 160 and 240 MHz, 6 GHz: 20, 40, 80, 160 and 320 MHz |
| Wi-Fi Data Rates | 2.4 GHz: Up to 688 Mbps, 5 GHz: Up to 4,320 Mbps, 6 GHz: Up to 5,765 Mbps |
| Maximum TX Power | 2.4 GHz: 26 dBm, 5 GHz: 25 dBm, 6 GHz: 24 dBm |
| Coverage Range | Up to 175 m (574.15 ft) |
| Ports | 1 × 5 GbE RJ45 port (Supports PoE Input), 1 × Reset Pinhole, 1 × Kensington Lock |
| PoE Standards | 802.3at |
| Max Power Consumption | 22 W |
| Wi-Fi Standards | Wi-Fi 7 (IEEE 802.11a/b/g/n/ac/ax/be) |
| SSIDs | 48 SSIDs in total, 16 per radio: 2.4 GHz & 5 GHz & 6 GHz |
| Client Capacity | Up to 384 concurrent clients |
| Advanced Wireless Features | Beamforming, OFDMA, Multi-RU, Preamble Puncturing, 4096-QAM, Multilink Operation (MLO), Target Wake Time (TWT), BSS Coloring |
| Wireless Roaming | 802.11k, 802.11v, 802.11r, Layer 2 roaming |
| Mesh | 2.4 GHz, 2.4 GHz & 5 GHz, 5 GHz, 5 GHz & 6 GHz, 6 GHz |
| Network | IPv4 Static IP or DHCP assignment, IPv6 Static IP or DHCP assignment, DHCP Supports Server, Client, and Relay modes, NAT NAT Pool |
| User Authentication | 802.1x Authentication Yes, MAC Authentication RADIUS-based access control using client MAC addresses as credentials, PPSK with or without RADIUS |
| Captive Portal | Supports RADIUS, Social Login, Vouchers, Password, SAML SSO, and Active Directory authentication |
| Security | WPA2-PSK (Personal), WPA2-802.1x (Enterprise), WPA3-SAE (Personal), WPA3-802.1x (Enterprise), WPA3-OWE (Enhanced Open), WPA/WPA2, WPA2/WPA3 |
| Management Protocol | TR-069, SNMP |
| Service Quality | QoS 802.11e/WMM, 802.1p, 802.1q, TOS |
| Management Platform | Local Web UI, GDMS Networking, GWN Manager, GWN App |
| Environmental | Operating Temperature 0 °C to 45 °C (32 °F to 113 °F), Storage Temperature -30 °C to 60 °C (-22 °F to 140 °F), Humidity 10%–90%, non-condensing |
| Certification Compliance | FCC, CE, RCM, IC |
