| Protocols/Standards |
|
| Protocols/Standards |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN® |
| Network Interfaces |
|
| Ethernet Ports |
Dual switched 10/ 100/ 1000 Mbps ports |
| PoE |
integrated PoE/PoE+ |
| Graphic Display |
|
| Screen Size |
8.0 inch |
| Resolution |
1280×800 |
| Screen Type |
capacitive touch screen (10 points) IPS LCD |
| Camera |
|
| Camera Type |
Tiltable 2 mega-pixel CMOS camera with privacy shutter |
| Video Resolution |
1080P@30fps |
| Bluetooth |
|
| Bluetooth |
Yes, integrated Bluetooth 5.0 |
| Wi-Fi |
|
| Wi-Fi |
Yes, dual-band (2.4GHz & 5GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display & AirPlay |
| Auxiliary Ports |
|
| Headset Jack |
RJ9 headset jack (allowing EHS with Plantronics headsets) |
| Stereo Headset |
3.5mm stereo headset with microphone |
| USB |
USB 3.0 port |
| Type-C |
Type-C |
| HDMI |
HDMI-out, HDMI-in |
| Feature Keys |
|
| Function Touch Keys |
2 function touch keys VOLUME+/- |
| Android Touch Keys |
3 dedicated Android touch keys HOME, MENU and BACK |
| Voice Codecs and Capabilities |
|
| Voice Codecs |
Wide-band Opus, wide-band G.722, G.711μ/a, G.729A/B, G.726-32, iLBC, in-band and out-of-band
DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0 |
| Video Codecs and Capabilities |
|
| Video Codec |
H.264 BP/MP/HP |
| Video Resolution |
up to 1080p |
| Frame Rate |
up to 30 fps |
| Bit Rate |
up to 4Mbps |
| Video Conference |
3-way video conference (1080p@30fps) |
| BFCP |
BFCP |
| People Video |
people video(up to 1080p@30fps) |
| Content Video |
content video(up to 1080p@15fps) |
| Anti-Flickering |
anti-flickering |
| Auto Exposure |
auto exposure |
| Telephony Features |
|
| Call Features |
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup |
| Audio Conference |
12-way audio conference(including the host) |
| Shared Call Appearance |
shared-call-appearance (SCA) / bridged-line-appearance (BLA) |
| Virtual MPK |
virtual MPK |
| Contacts |
downloadable contacts (XML, LDAP, up to 2000 items) |
| Call Record |
call record(local and server) |
| Call Log |
call log (up to 2000 records) |
| Call Waiting |
call waiting |
| Auto Answer |
auto answer |
| Screen Customization |
XML customization of screen |
| Dial Plan |
flexible dial plan |
| Music |
personalized music ringtones and music on hold |
| Server Redundancy |
server redundancy & fail-over |
| Sample Applications |
|
| Local Apps |
Contacts, Call History, File Manager, Programmable Key, Settings, Browser, Clock, Voicemail, Calculator, Recorder, GS Market, etc. |
| Third-Party Apps |
Support third-party Android apps |
| API/SDK |
API/SDK available for advanced custom application development |
| Applications Deployment |
|
| Android Applications |
Supports Android 14 compliant applications to be developed, downloaded and run on the device with provisioning control |
| Android |
|
| Android Version |
Android 14 |
| HD Audio |
|
| Microphones |
2 omni-directional microphones |
| Handset and Speakerphone |
HD handset and speakerphone with support for wideband audio |
| Base Stand |
|
| Base Stand |

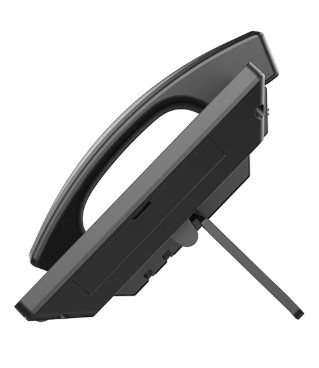

Integrated stand with multiple adjustable angles |
| QoS |
|
| Layer 2 QoS |
Layer 2 QoS (802.1Q, 802.1p) |
| Layer 3 QoS |
Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security |
|
| Passwords |
User and administrator level passwords |
| Admin Password |
random default admin password |
| Authentication |
MD5 and MD5-sess based authentication |
| Configuration File |
256-bit AES encrypted configuration file |
| TLS |
TLS |
| SRTP |
SRTP |
| HTTPS |
HTTPS |
| Media Access Control |
802.1x media access control |
| Kensington Security Slot |
Kensington Security Slot (Kensington Lock) support |
| Secure Boot |
anti-hacking secure boot |
| Multi-language |
|
| Languages |
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more |
| Upgrade/Provisioning |
|
| Firmware Upgrade |
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload |
| Mass Provisioning |
mass provisioning using TR-069 or AES encrypted XML configuration file, GDMS |
| Power & Green Energy Efficiency |
|
| Power Adapter |
Universal power adapter included |
| Input |
100-240VAC 50-60Hz |
| Output |
12VDC 1.5A (18W) |
| PoE |
Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4 |
| Power Requirement |
*Must use PSU or PoE+ to power up the phone when using USB devices |
| Temperature and Humidity |
|
| Operation |
0°C to 40°C |
| Storage |
-10°C to 60°C |
| Humidity |
10% to 90% Non-condensing |
| Package Content |
|
| Package Content |
GXV3480 phone, handset with cord, base stand, universal power supply, network cable, screen cleaning cloth, quick installation guide |
