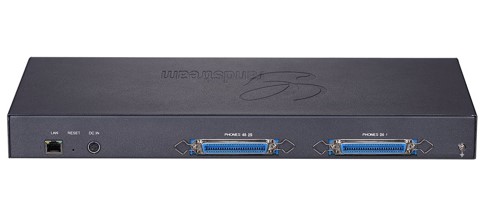

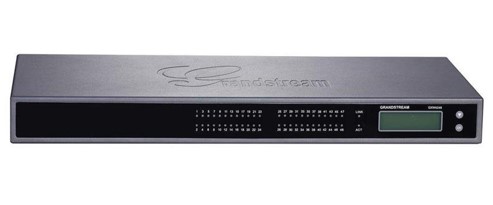

Grandstream GXW4248-v2 FXS VoIP Gateway, 48 FXS Ports
Grandstream GXW4248-v2 is a high-density FXS VoIP Gateway designed to connect traditional analog telephones and fax devices to IP-based voice networks. It provides 48 independent telephone ports through two 50-pin Telco connectors and a Gigabit Ethernet network interface for business voice deployments.
The GXW4248-v2 supports SIP signaling over UDP, TCP, and TLS and provides four distinct SIP server profiles per system with an independent SIP account for each telephone port. This enables flexible integration with SIP-based communication platforms and supports scalable voice connectivity for offices and other organizations.
For reliable voice transmission, the Grandstream VoIP Gateway supports G.711, G.723.1, G.726-32, G.729, G.722, iLBC, and Opus codecs. Carrier-grade line echo cancellation, dynamic jitter buffering, and flexible DTMF transmission help maintain voice quality, while DiffServ, ToS, and 802.1P/Q VLAN tagging provide network traffic management options.
The gateway also supports T.38 Group 3 Fax Relay up to 14.4 kbps and automatic switching to G.711 for fax pass-through. Telephony functions include caller ID, call waiting, call transfer, call forwarding, do not disturb, 3-way conferencing, last call return, paging, message waiting indication, and auto dial for convenient business communications.
Security and management features include SRTP, TLS/SIPS, HTTPS with AES-128 encryption, SecureBoot, secure provisioning, and random administrator passwords. The GXW4248-v2 can be managed through a web browser, HTTPS, SSH, voice prompts, TR-069, Syslog, and GDMS, while its 1U rack-mountable design provides convenient installation in professional network environments.
Key features
-
48 FXS telephone ports through 2 Telco connectors
-
1 x 10/100/1000Mbps auto-sensing RJ45 port
-
SIP signaling over UDP, TCP, and TLS
-
Supports G.711, G.722, Opus, G.729, and other codecs
-
T.38 fax relay up to 14.4 kbps
-
4 SIP server profiles with independent port accounts
-
SRTP, TLS/SIPS, HTTPS, and SecureBoot security
-
1U desktop and rack-mountable design
Specifications:
| Telephone Interfaces |
2 50-pin Telco connectors |
| Network Interfaces |
1 x 10M/100M/1000Mbps auto-sensing RJ45 port |
| LED indicators |
Power, LAN Link, LAN Activity, Connection Per Telephone Port |
| LCD display |
Backlit 132x32 graphic LCD display with support for multiple languages |
| Voice-over-Packet Capabilities |
Window based carrier grade line echo cancellation, dynamic jitter buffer, modern detection & auto-switch to G.711 |
| Voice Compression |
G.711, G.723.1, G.726-32, G.729, G.722 (wide band), iLBC, Opus |
| Fax over IP |
T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through, Fax data pump V.17, V.21, V.27ter, V.29 for T.38 fax relay |
| Telephony Feature |
Caller ID display or block, call waiting, blind or attended call transfer, call forward, do not disturb, 3-way conference, last call return, paging, message waiting indicator LED (NEON LED) support and stutter tone, auto dial |
| Caller ID |
Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID |
| Disconnect Methods |
Busy Tone, Polarity Reversal/Wink, Loop Current |
| Short/Long Haul |
2 REN: Up to 6000ft on 24 AWG |
| QoS |
DiffServ, TOS, 802.1P/Q VLAN tagging |
| Network Protocols |
TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, PPPoE, STUN, LLDP |
| DTMF Method |
Flexible DTMF transmission methods including in-audio, RFC2833, and/or SIP INFO |
| Signaling |
SIP (RFC 3261) over UDP/TCP/TLS |
| SIP Server Profiles & Accounts Per System |
4 distinct SIP server profiles per system and independent SIP account per telephone port |
| Provisioning |
TFTP, HTTP, HTTPS, FTP, FTPS, TR069 |
| Security |
SRTP, TLS/SIPS, HTTPS (AES-128 encryption for SRTP, TLS and HTTPS), SecureBoot, random admin passwords |
| Management |
Syslog, HTTPS, SSH, Web browser, voice prompt, TR-069, GDMS |
| Universal Power Supply |
Output: 24VDC, 6.25A, maximum 150W; Input: 100 ~ 240VAC, 50~ 60Hz |
| Environmental |
Operating: 0 °C ~ 40C; Storage: -10°C ~ 60°C; Humidity: 10% ~90% (non-condensing) |
| Electrical Protection |
Over-voltage and over-current protection (ITU-T Recommendation K.21, Basic Test Level) |
| Unit dimension |
440mm (L) x 255mm (W) x 44mm (H) (1U) (GXW4248) |
| Unit Weight |
3.36KG |
| Package weight |
4.92KG |
| Mounting |
Desktop and rack mount with front brackets |
| Compliance |
FCC: Part 15 (CFR 47) Class B; IC: ICES-003; CE: EN55032 Class B, EN55035, EN IEC 61000-3-2, EN61000-3-3, EN IEC 62368-1, RoHS; C-TICK: AS/NZS CISPR 32 Class B, AS/NZS 62368.1, AS/CA S003.1; ITU-T K.21 (Basic Test Level); UL 60950 (power adapter) |
