You need a switch that can keep up with the fastest apps, the biggest data flows and the toughest uptime demands. The H3C S9800 (S9850-32H-H1) 6.4 Tbps Data Center Switch is built for exactly that. It moves massive traffic inside a data center, connects servers, storage and routers, and stops bottlenecks before they happen. If your network slows down, you lose money, customers and reputation - this switch stops the problem at its source.

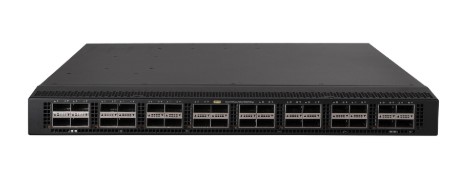

H3C S9800 (S9850-32H-H1) 6.4 Tbps Data Center Switch
Large data centers often struggle with traffic spikes that overload older gear. When the switch cannot handle the load, latency rises and packets are dropped, hurting applications and user experience. This matters because every millisecond of delay can mean lost revenue for cloud services, e-commerce sites and online gaming platforms. The H3C S9800 solves the issue with a 6.4 Tbps switching capacity, sub-microsecond latency and a robust design that stays up even when power fluctuates. It gives you a smooth, reliable backbone that grows with your business.
Key Features
- 6.4 Tbps switching capacity for massive data flows.
- 2024 Mpps forwarding capacity for high packet rates.
- 32 M buffer to absorb bursts without loss.
- Four-core 2.2 GHz CPU for fast processing.
- 32 QSFP28/QSFP+ ports for 10/40 GbE connections.
- Two GE out-of-band management ports (copper and fiber).
- Dual power module slots supporting AC 90-264 V or DC -40 to -72 V.
- Five fan tray slots with front-to-rear or rear-to-front airflow options.
- Less than 1 s latency for 64-byte frames.
- MTBF of 27.2 years and MTTR of 1 hour for high reliability.
Specifications
| Chassis |
LS-9850-32H-H1 |
| Dimensions (H × W × D) |
43.6 × 440 × 460 mm (1.72 × 17.32 × 18.11 in) |
| Weight(Full loaded) |
≤ 15 kg (33.07 lb) |
| Serial console port |
1 |
| Out-of-band management port |
One GE copper port and one GE fiber port |
| Mini USB console port |
1 |
| USB port |
1 |
| QSFP-DD port |
/ |
| QSFP28/QSFP+ |
32 |
| SFP port |
2 |
| Expansion slot |
- |
| CPU |
LS-9850-32H-H1：4 cores, 2.2 GHz |
| Flash/SDRAM |
LS-9850-32H-H1：8GB/8GB |
| Latency |
< 1μs (64-byte ) |
| Switching capacity |
6.4 Tbps |
| Forwarding capacity |
2024 Mpps |
| Buffer |
32M |
| AC-input voltage |
90v to 264v |
| DC-input voltage |
–40v to –72v |
| Power module slot |
2 |
| Fan tray slot |
5 |
| Air flow direction |
From front to rear or from rear to front |
| Typical power consumption |
Single AC: 198 W, Dual AC: 210 W, Single DC: 197 W, Dual DC: 208 W |
| Maximum power consumption |
Single AC input: 376 W, Dual AC inputs: 385 W, Single DC input: 373 W, Dual DC inputs: 377 W |
| Typical thermal consumption |
Single AC input: 676 BTU/hr, Dual AC inputs: 717 BTU/hr, Single DC input: 672 BTU/hr, Dual DC inputs: 710 BTU/hr |
| MTBF(years) |
27.2 |
| MTTR(hour) |
1 |
| Operating temperature |
0°C to 45°C (32°F to 113°F) |
| Operating humidity |
5% to 95%, noncondensing |
