Product Code: CCEL-178
MPN #: ANV-L7012R

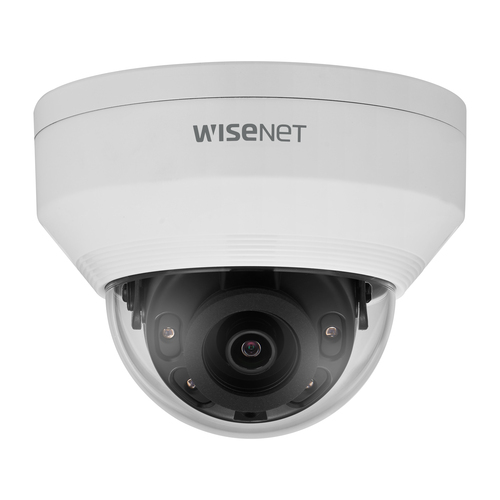

Imagine trying to keep your shop safe at night, but the camera you bought gives blurry images and misses motion. The Hanwha ANV-L7012R Outdoor Wired Dome IP Camera Ceiling 120 dB Multilingual is built for exactly this need. It is a weather-proof dome camera that you mount on a ceiling and connect with a wire. If you worry about dark corners, harsh sunlight, or language barriers in the software, this camera solves those problems.
Many small businesses lose money when theft goes unnoticed because their cameras cannot handle bright sunlight or deep shadows. This creates blind spots that thieves exploit and leaves owners unsure about what really happened. The Hanwha camera eliminates those blind spots with a 120 dB dynamic range and true day/night mode, so you get clear pictures in any light. Its wired PoE connection guarantees stable video, and the multilingual interface lets users in many countries set it up without help.
Install the dome on the ceiling of a retail store, a warehouse, or an office lobby to watch entrances and aisles. It works well for parking lots because the night vision reaches 20 m and the camera can see faces up to 44 m away. Schools can use it in hallways to monitor student flow, and restaurants can place it above the dining area to deter theft and keep staff safe. The wired design fits any building that already has Ethernet runs.
| Performance | |
| Dynamic range | 120 dB |
| Languages support | Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Turkish |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium, Plastic |
| Product colour | White |
| Mounting type | Ceiling |
| Form factor | Dome |
| Camera | |
| Camera shutter speed | 1/5 ~ 1/12000 s |
| Camera shutter type | Electronic |
| White balance | ATW, AWC, Indoor, Manual, Outdoor |
| Pan range | 0 - 350° |
| Tilt angle range | 0 - 67° |
| Lens viewing angle, diagonal | 115° |
| Lens viewing angle, vertical | 55° |
| Lens viewing angle, horizontal | 99° |
| Angle of rotation | 355° |
| Image sensor | |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Sensor type | CMOS |
| Lens system | |
| Closest focusing distance | 1.1 m |
| Fixed focal length | 3 mm |
| Minimum aperture number | 1.6 |
| Recognize distance | 8.9 m |
| Observe distance | 17.7 m |
| Detect distance | 44.3 m |
| Night vision | |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 20 m |
| Night vision | Yes |
| Video | |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Privacy masking | Yes |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440 |
| Video compression formats | H.264, H.265, M-JPEG |
| Total megapixels | 4 MP |
| Maximum resolution | 2560 x 1440 pixels |
| Network | |
| Streaming method | Multicast, Unicast |
| Supported network protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Maximum memory card size | 128 GB |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Security | |
| Security algorithms | EAP-LEAP, EAP-PEAP, EAP-TLS, MSCHAPv2 |
| Video motion detection | Yes |
| Power | |
| Power consumption (max) | 7.5 W |
| Power consumption (typical) | 5.7 W |
| Power source type | PoE |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 55 °C |
| Operating temperature (T-T) | -30 - 55 °C |
| Weight & dimensions | |
| Weight | 410 g |
| Length | 91.7 mm |
| Diameter | 12 cm |
| Supplier features | |
| Manufacturer | Hanwha |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Maximum resolution | 2560 x 1440 pixels |
