Finding a camera that can watch your home or business day and night, in rain or dust, is hard. When a camera misses a dark corner or blurs in bright sun, you lose the chance to see what matters most. The Hanwha XNF-9010RV Outdoor Wired Dome IP Camera Ceiling/Wall White solves that problem with a tough shell, clear night vision and smart video tools, so you always have a reliable eye on the scene.

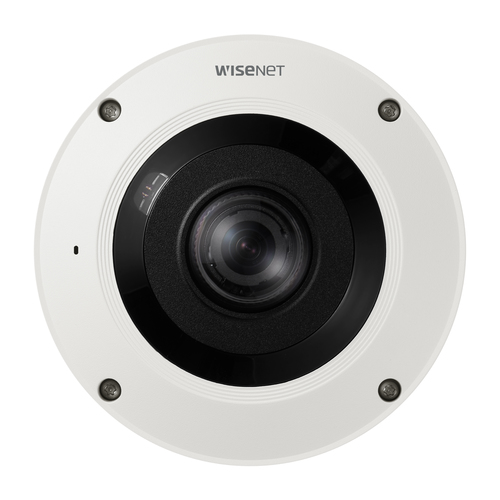

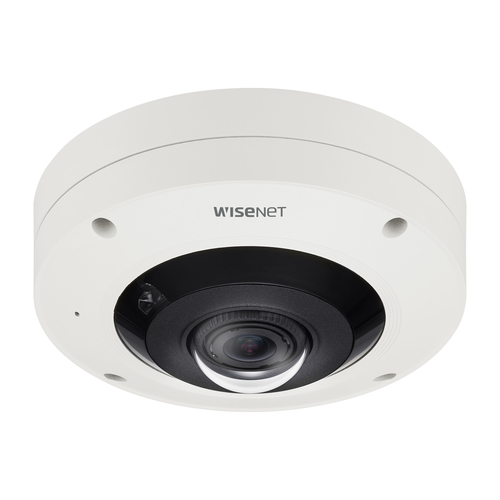

Hanwha XNF-9010RV Outdoor Wired Dome IP Camera Ceiling/Wall White with Hanwha
You need a camera that works in any weather and gives you crystal-clear images without fuss. This Hanwha dome camera is built for outdoor walls or ceilings, connects by wired Ethernet and delivers 12 MP detail even in total darkness. If you worry about theft, vandalism or simply want to check who is at the door, this camera gives you the peace of mind that nothing slips past the lens.
Usages
Mount it on the front of a shop to watch customers and deliveries. Hang it on a warehouse ceiling to monitor aisles and loading bays. Install it by a side gate to capture every visitor, day or night. It also works well for schools, parking lots and residential yards where a discreet, weather-proof dome is needed.
Benefits
- Clear images in bright sun and total darkness keep you informed.
- Rugged IP66 and IK10 rating protects against rain, dust and impact.
- Built-in alarm I/O lets the camera trigger lights or sirens.
- Easy PoE power means no extra outlet is needed.
- Privacy masking lets you hide sensitive areas while recording.
Key Features
- 12 MP sensor with 3008 3008 pixel resolution.
- 187 wide-angle lens captures a large field of view.
- Infrared LEDs provide up to 10 m night vision.
- WDR and BLC balance bright and dark areas in the same frame.
- PTZ control for remote pan, tilt and zoom adjustments.
- H.264/H.265 compression saves bandwidth and storage.
- MicroSD slot supports up to 512 GB for local recording.
- IP66 weather seal and IK10 vandal proof housing.
- PoE (11 W) power simplifies installation.
- Supports up to 20 simultaneous users with secure HTTPS.
Specifications
| Performance |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
| IK code |
IK10 |
| International Protection (IP) code |
IP66 |
| Housing material |
Aluminium |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Camera shutter speed |
1/5 - 1/12000 s |
| White balance |
ATW, AWC, Indoor, Manual, Outdoor |
| Lens viewing angle, diagonal |
187° |
| Lens viewing angle, vertical |
187° |
| Lens viewing angle, horizontal |
187° |
| Image sensor |
| Optical sensor size |
25.4 / 2.3 mm (1 / 2.3") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Closest focusing distance |
0.5 m |
| Fixed focal length |
1.08 mm |
| Maximum aperture number |
2.2 |
| Number of lenses |
1 |
| Night vision |
| LED type |
IR |
| Night vision distance |
10 m |
| Night vision |
Yes |
| Video |
| Back Light Compensation (BLC) |
Yes |
| Flip & mirror |
Yes |
| Highlight Compensation (HLC) |
Yes |
| Privacy masking |
Yes |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Video compression formats |
H.264, H.265 |
| Total megapixels |
12 MP |
| Maximum resolution |
3008 x 3008 pixels |
| Network |
| Streaming method |
Multicast, Unicast |
| Number of users |
20 user(s) |
| Supported network protocols |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP |
| Networking standards |
IEEE 802.1x, IEEE 802.3af |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Internal memory |
4096 MB |
| Flash memory |
512 MB |
| Maximum memory card size |
512 GB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Anti-flicker |
Yes |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Video motion detection |
Yes |
| Power |
| DC output voltage |
12 |
| Power consumption (Power over Ethernet (PoE)) |
11 W |
| Power consumption (max) |
9.1 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-50 - 60 °C |
| Operating temperature (T-T) |
-40 - 60 °C |
| Weight & dimensions |
| Weight |
1.1 kg |
| Diameter |
16 cm |
| Height |
72 mm |
| Supplier features |
| Manufacturer |
Hanwha |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
3008 x 3008 pixels |
