Feel safe even when you are far from home. The Hanwha XNO-6120R/RW IP security camera gives you clear video, night vision and strong protection against weather and vandalism. It is made for outdoor walls or ceilings and sends live footage over a wired network. If you worry about break-ins, dark corners or unreliable Wi-Fi, this camera solves those problems and lets you watch what matters.

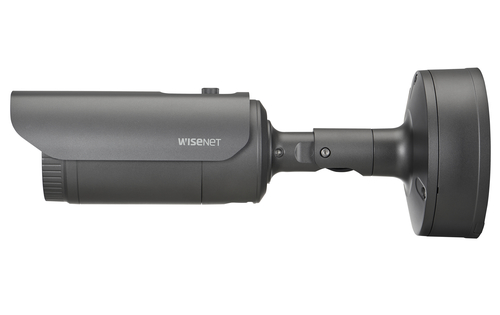

Hanwha XNO-6120R/RW IP security camera Outdoor Wired Ceiling/wall, Black, Bullet
Many businesses and homes lose security when cameras cannot handle rain, dust or bright lights. That leaves gaps for thieves and makes monitoring stressful. This camera blocks water, dust and impacts while keeping colors true in both bright day and dark night. It connects by Ethernet, so you get a stable feed and can set alarms, motion detection and two-way audio without losing signal.
Benefits
- Clear 1080p video lets you see faces and license plates clearly.
- 70 meter infrared night vision watches the area even in total darkness.
- IP67 and IK10 ratings protect the camera from rain, dust and vandal attacks.
- Built-in microphone and speaker give you two-way talk for remote warnings.
- PoE power simplifies wiring and reduces installation cost.
Usages
Install the camera on a store front to catch shoplifters and monitor customer flow. Mount it on a warehouse ceiling to watch loading docks and keep an eye on inventory. Use it at a residential gate to see who is arriving and talk to visitors from your phone. It also works well for parking lots, school entrances and any outdoor area that needs reliable, high-resolution surveillance.
Key Features
- 12 MP CMOS sensor with 1945 1097 effective pixels.
- 12 optical zoom and 24 digital zoom for detailed close-ups.
- Wide Dynamic Range (WDR) balances bright and dark areas in one frame.
- Day/night mode automatically switches to infrared at night.
- 300 preset PTZ positions let you program common viewing angles.
- Two-way audio with G.711 and G.726 codecs for clear voice communication.
- H.264, H.265 and MJPEG compression saves bandwidth while keeping quality.
- Fast Ethernet (10/100Base-T) with PoE supports up to 14.5 W power draw.
- Supports up to 512 GB microSD for local video storage.
- HTTPS encryption, IP filtering and motion detection keep the feed secure.
Specifications
| Performance |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
| Fog proof |
Yes |
| IK code |
IK10 |
| International Protection (IP) code |
IP67 |
| Protection features |
Vandal proof |
| Housing material |
Aluminium |
| Product colour |
Black |
| Mounting type |
Ceiling/wall |
| Form factor |
Bullet |
| Camera |
| Camera shutter speed |
2 - 1/12000 s |
| Preset programs quantity |
300 |
| White balance |
ATW, AWC, Indoor, Manual, Mercury lamp, Outdoor, Sodium lamp |
| Minimum illumination |
0 lx |
| Image sensor |
| Number of effective pixels (H x V) |
1945 x 1097 pixels |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Sensor type |
CMOS |
| Lens system |
| Maximum aperture number |
3 |
| Auto focus |
Yes |
| Focus |
Motorized/Manual |
| Focal length range |
5.2 - 62.4 mm |
| Digital zoom |
24x |
| Optical zoom |
12x |
| Zoom capability |
Yes |
| Night vision |
| LED type |
IR |
| Night vision distance |
70 m |
| Night vision |
Yes |
| Video |
| Back Light Compensation (BLC) |
Yes |
| Flip & mirror |
Yes |
| Full HD |
Yes |
| Highlight Compensation (HLC) |
Yes |
| Privacy masking |
Yes |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
60 fps |
| Supported graphics resolutions |
320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 448, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Video compression formats |
H.264, H.265, M-JPEG, MPEG4 |
| Total megapixels |
2 MP |
| Maximum resolution |
1920 x 1080 pixels |
| Audio |
| Voice codecs |
G.711, G.726 |
| Signal-to-Noise Ratio (SNR) |
50 dB |
| Audio output channels |
1.0 channels |
| Audio system |
2-way |
| Network |
| Quality of Service (QoS) support |
Yes |
| Streaming method |
Multicast, Unicast |
| Number of users |
20 user(s) |
| Cabling technology |
10/100Base-T(X) |
| Networking standards |
IEEE 802.3af, IEEE 802.3x |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Maximum memory card size |
512 GB |
| Card reader integrated |
Yes |
| Ports & interfaces |
| USB port |
Yes |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Video motion detection |
Yes |
| Power |
| DC output voltage |
12 |
| Power consumption (Power over Ethernet (PoE)) |
12.95 W |
| Power consumption (max) |
14.5 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Storage temperature (T-T) |
-50 - 60 °C |
| Operating temperature (T-T) |
-40 - 55 °C |
| System requirements |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8.1 |
| Weight & dimensions |
| Weight |
2.18 kg |
| Length |
368.6 mm |
| Diameter |
9.1 cm |
| Supplier features |
| Manufacturer |
Hanwha |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
1920 x 1080 pixels |
