Many hobbyists and developers struggle with tiny computers that freeze, run hot, or cannot handle modern AI and media tasks. When a board slows down, projects stall and deadlines are missed. The Hardkernel ODROID-H5 gives you a compact board that works like a desktop, so you can finish your work without waiting for the system to catch up.

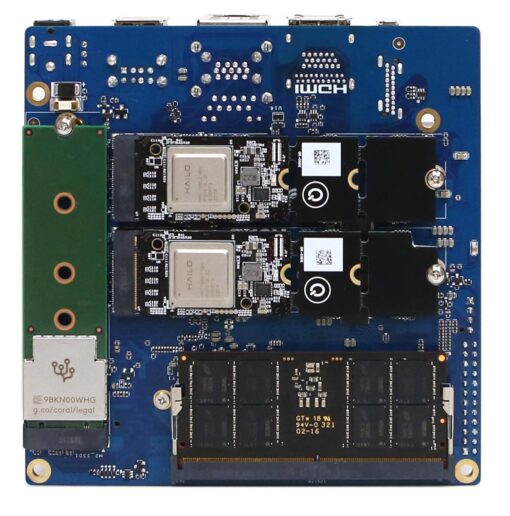

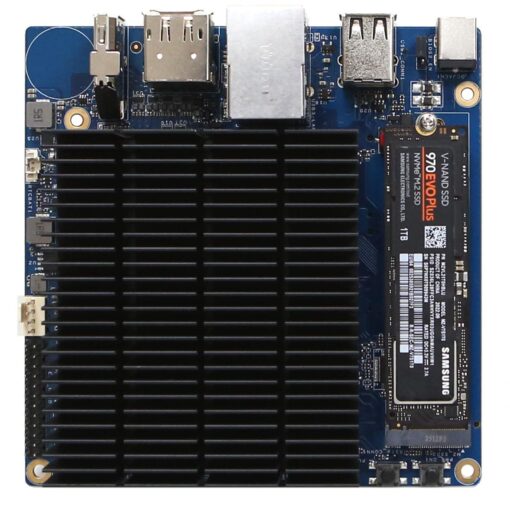

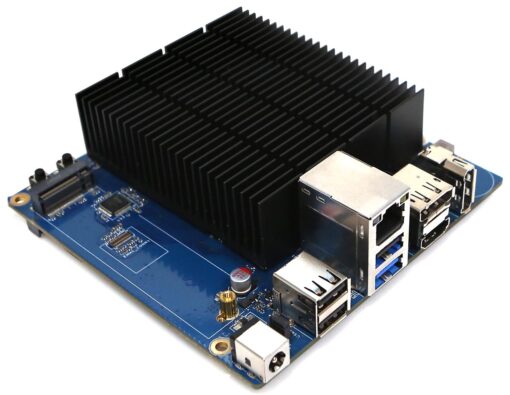

Hardkernel ODROID-H5, 8C8T 7W Single-Board Computer (SBC) with Hardkernel
Imagine a mini PC that runs fast, stays cool, and fits in a pocket-size case. The ODROID-H5 is a single-board computer built for developers, makers, and anyone who needs reliable power for AI, edge computing, or media streaming. If you have been frustrated by lag, limited memory, or missing ports, this board solves those issues with an 8-core Intel i3, DDR5 support, and multiple video outputs.
Key Features
- Intel Core i3-N300, 8 cores / 8 threads
- 3.8 GHz burst, 2.3 GHz sustained multi-thread speed
- 6 MB cache with AVX2 support
- DDR5-4800 RAM, up to 64 GB
- Intel iGPU, 1250 MHz, 32 execution units
- One HDMI and two DisplayPort outputs for multiple monitors
- Gen 3 PCIe via NVMe slot, optional 10 GbE and SATA cards
- USB 3.0 (1) and USB 2.0 (3) ports for peripherals
- 10 GbE Ethernet port for fast network connections
- Optional cooling fan (92 x 15 mm or 92 x 25 mm) for silent operation
- 120 120 mm board size fits standard H-series cases
- Unlimited Performance Mode for sustained workloads
Specifications
| Processor |
|
| CPU (Intel) |
Core™ i3 Processor N300 |
| Code Name |
Alder Lake-N |
| Microarchitecture |
Gracemont |
| Cores / Threads |
8C8T |
| Cache |
6 MB |
| AVX2 (Advanced Vector Extensions) |
Yes |
| TDP |
7W |
| Single Thread Burst Frequency |
3.8 GHz |
| Full Multi Thread Sustained Frequency |
2.3 GHz |
| Memory |
|
| Max. Memory Address Space |
64 GB |
| Max. Memory Speed |
DDR5-4800 |
| In Band Error Correction Code (IBECC) Support |
Yes |
| iGPU (Intel Graphics) |
|
| Burst Frequency |
1250 MHz |
| Execution Units |
32 |
| Video Outputs |
|
| HDMI |
1 |
| DisplayPort |
2 |
| PCIe (via NVMe slot) |
|
| Generation |
Gen 3 |
| Configuration |
3 × M.2 slots ×2 lanes; 1 × M.2 slot ×1 lane |
| Compatibility with Optional ODROID 4-ports 2.5GbE Net Card |
No |
| Compatibility with Optional ODROID M.2 2×2 Card |
No |
| Compatibility with Optional ODROID M.2 4×1 Card |
No |
| Compatibility with Optional ODROID M.2 10GbE Card |
Yes |
| Compatibility with Optional ODROID M.2 6-port SATA Card |
Yes |
| Compatibility with Optional 3rd Party M.2 WiFi 6e, 7 ×1 Card |
Yes |
| I/O Ports |
|
| USB 2.0 |
3 ports |
| USB 3.0 |
1 port |
| 2.5GbE |
No |
| 10GbE |
1 port |
| SATA III |
No |
| 24-pin IO Expansion Ports |
I2C ×2; USB 2.0 ×3; UART ×1; HDMI-CEC ×1; Ext. Power Button ×1 |
| Others |
|
| Dual-BIOS |
Yes |
| Optional Cooling Fan |
Slim 92 × 15 or thick 92 × 25 mm 12 Volt standard PC 4-pin;
Slim fan fits inside the new cases
|
| Dimensions |
120 × 120 mm (4.7 × 4.7 in) |
| Recommended Power Supply 1 |
60W |
| Recommended Power Supply 2 |
No |
| Unlimited Performance Mode |
Yes |
| Security (TPM 2.0) |
fTPM enabled (Will run Windows 11 out of the box) |
| Hardkernel H-series Cases |
DIY assembly; The cases are made of solid and sturdy PCBs. |
| Certifications |
FCC/CE/KC/RoHS |
