Marine operators often need a reliable computer that can handle clear data viewing, continuous operation, and demanding onboard conditions without taking up excessive space. The Hatteland HD 19T26 MMC combines a 19.0 inch display with integrated computing hardware, multiple connectivity options, and marine-focused features for control, monitoring, navigation, and other shipboard applications.

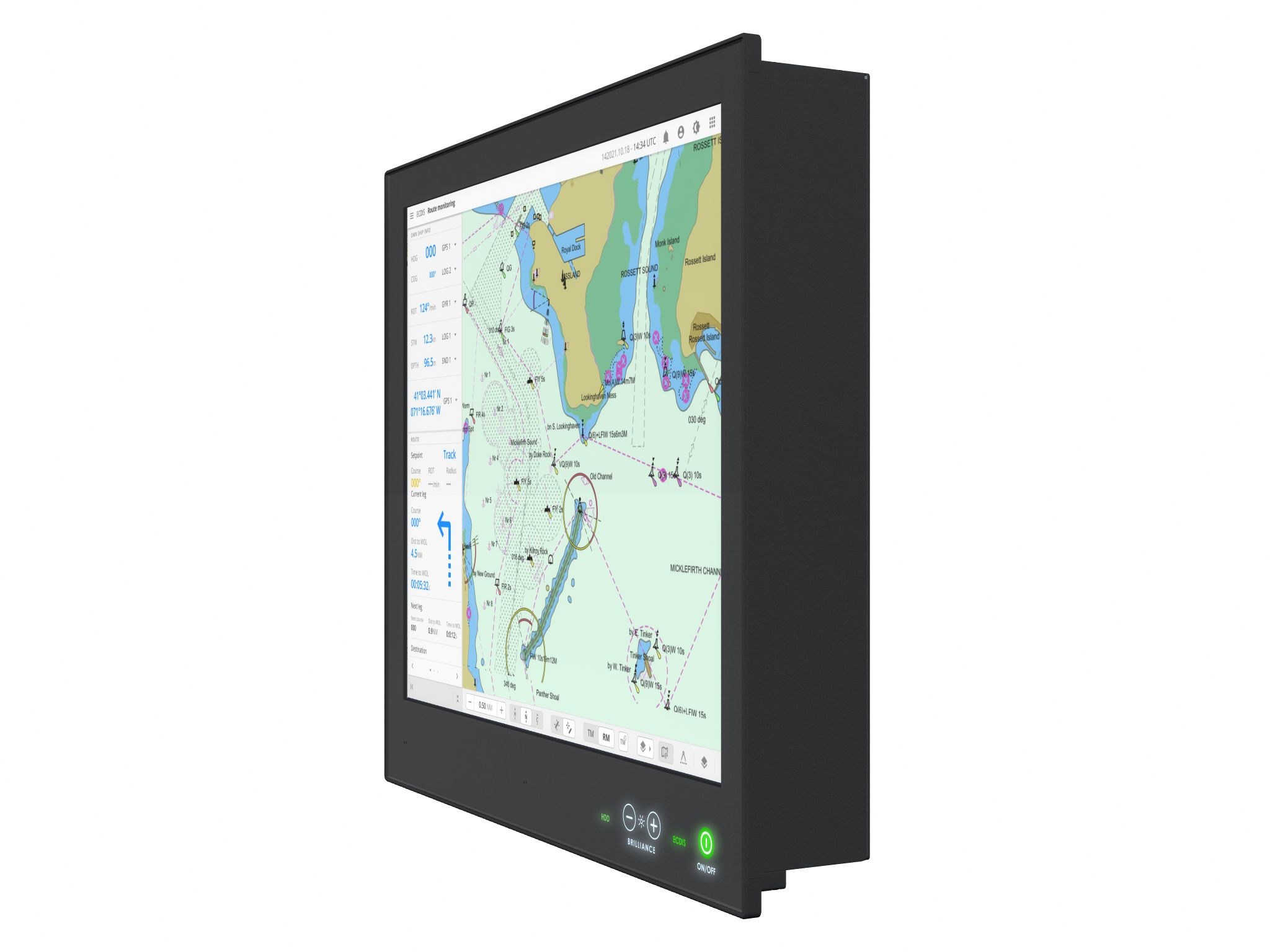

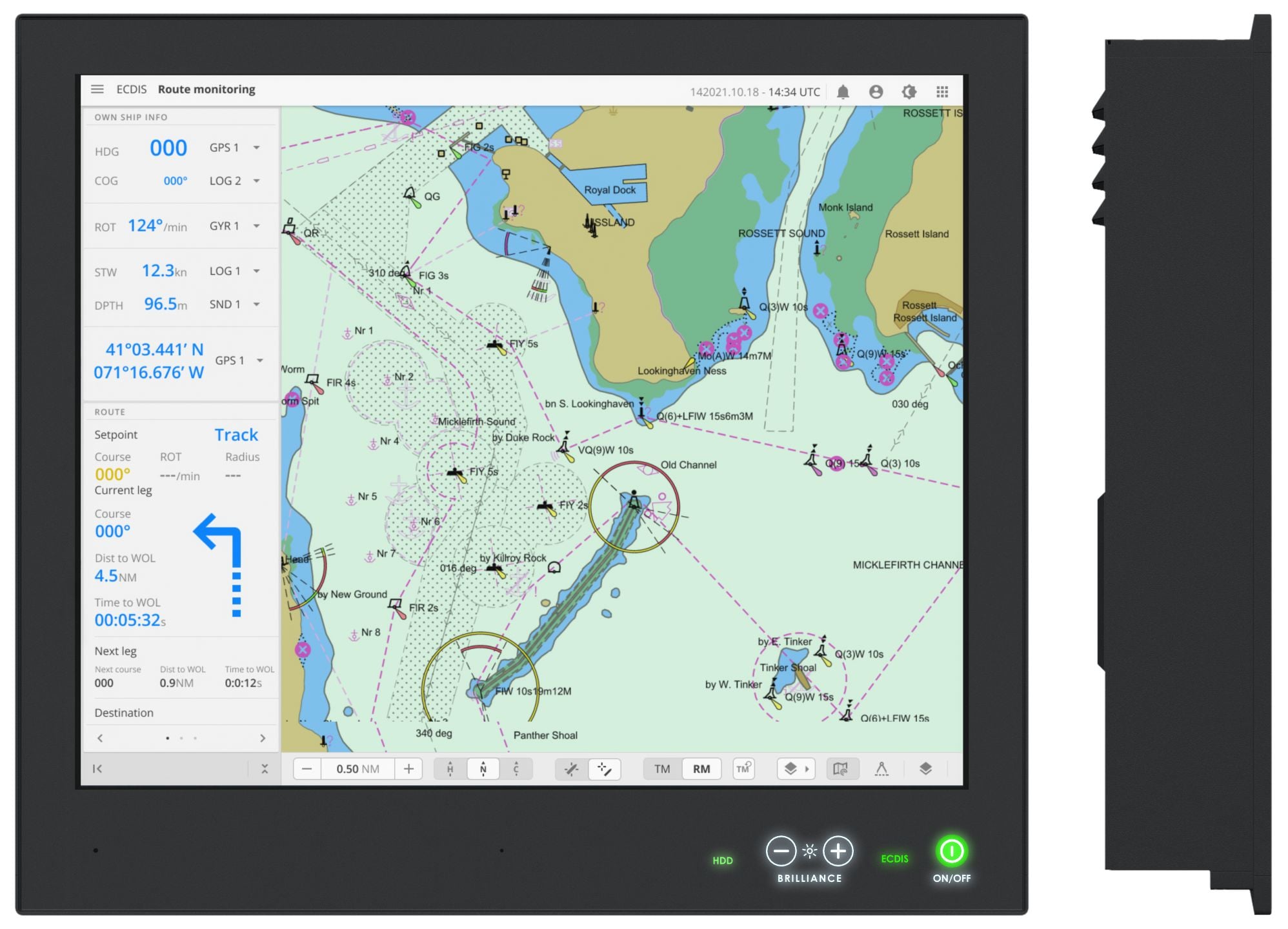

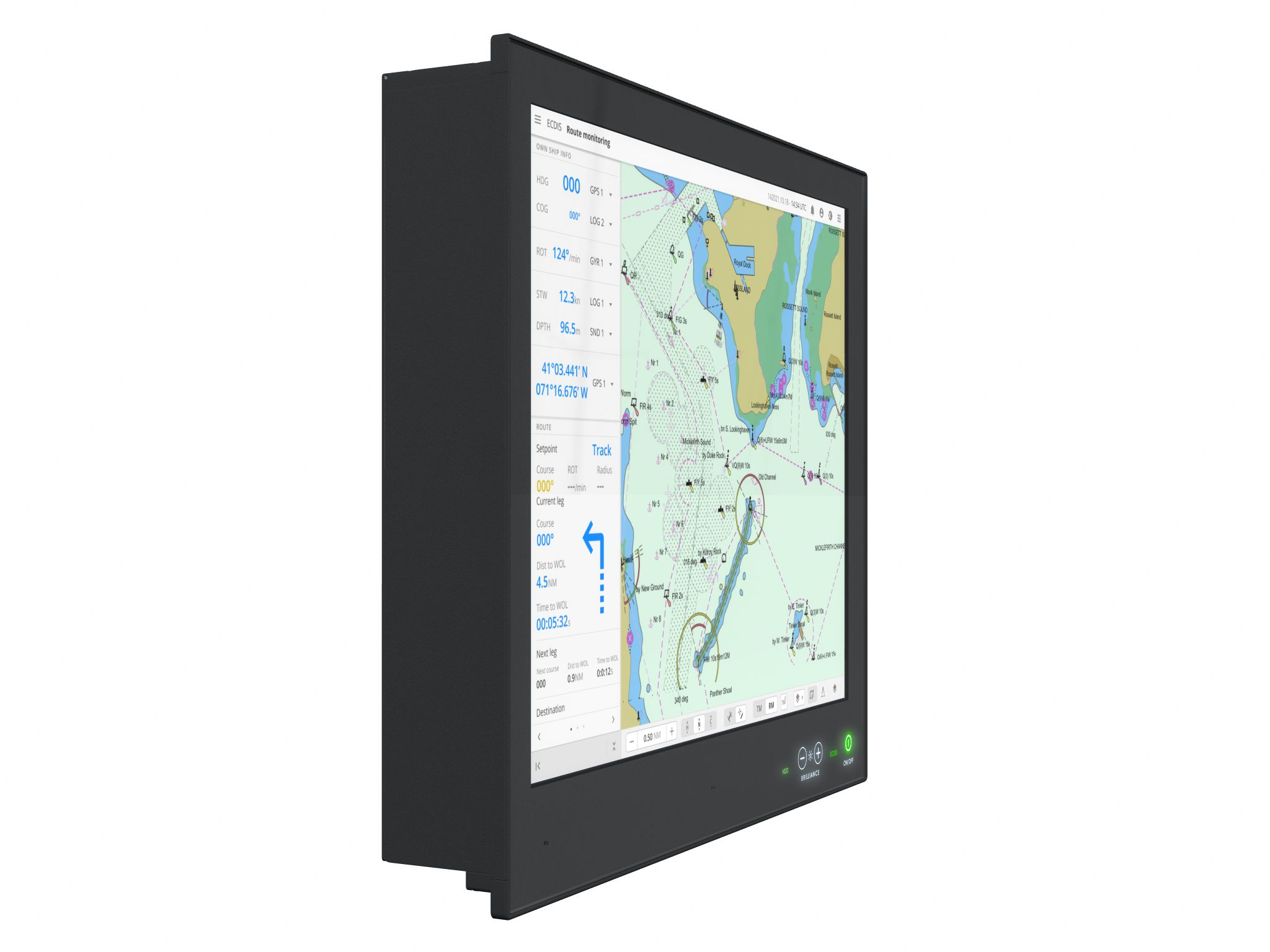

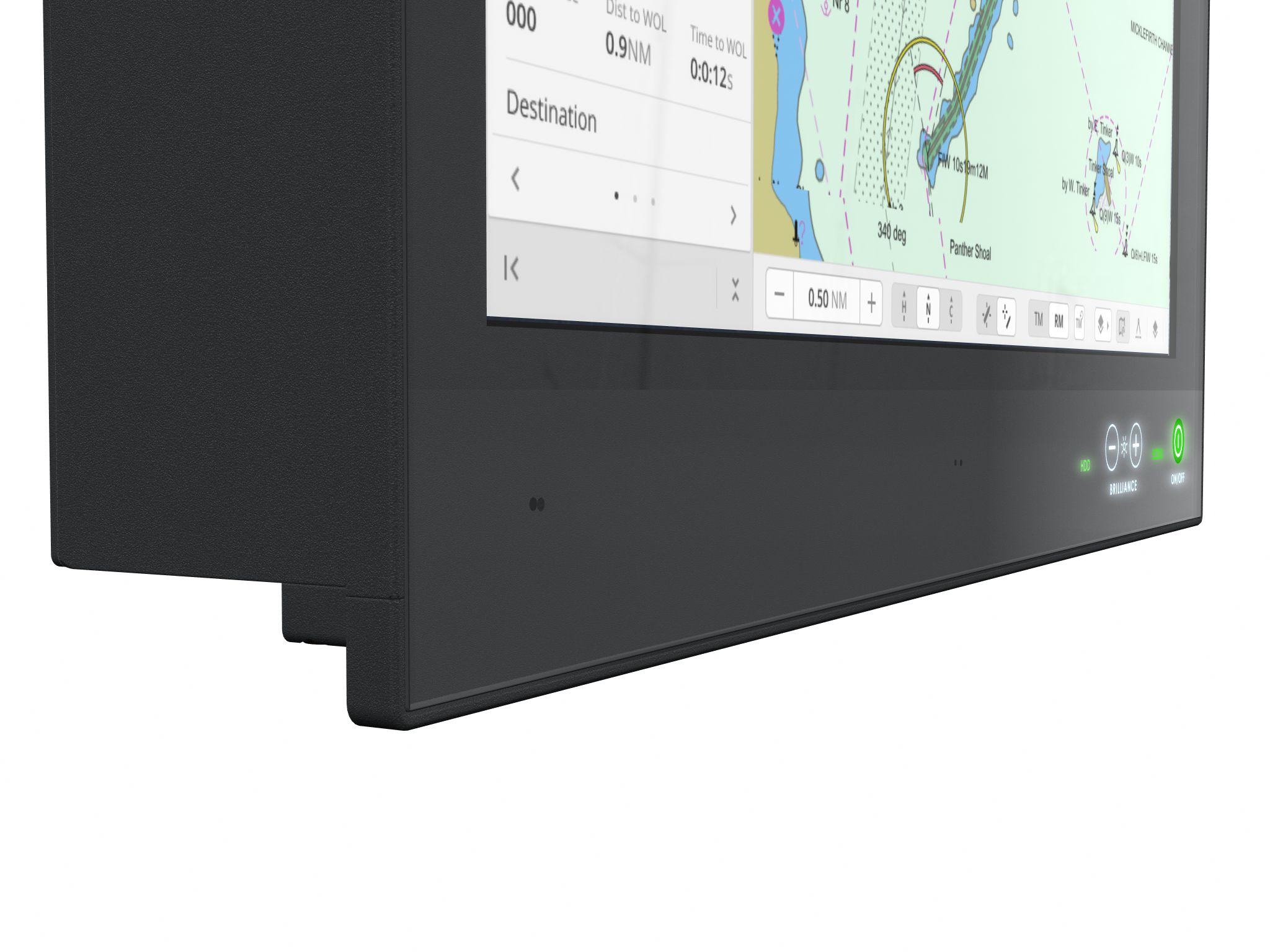

Hatteland HD 19T26 MMC, 19.0 inch Maritime Multi Computer (MMC)

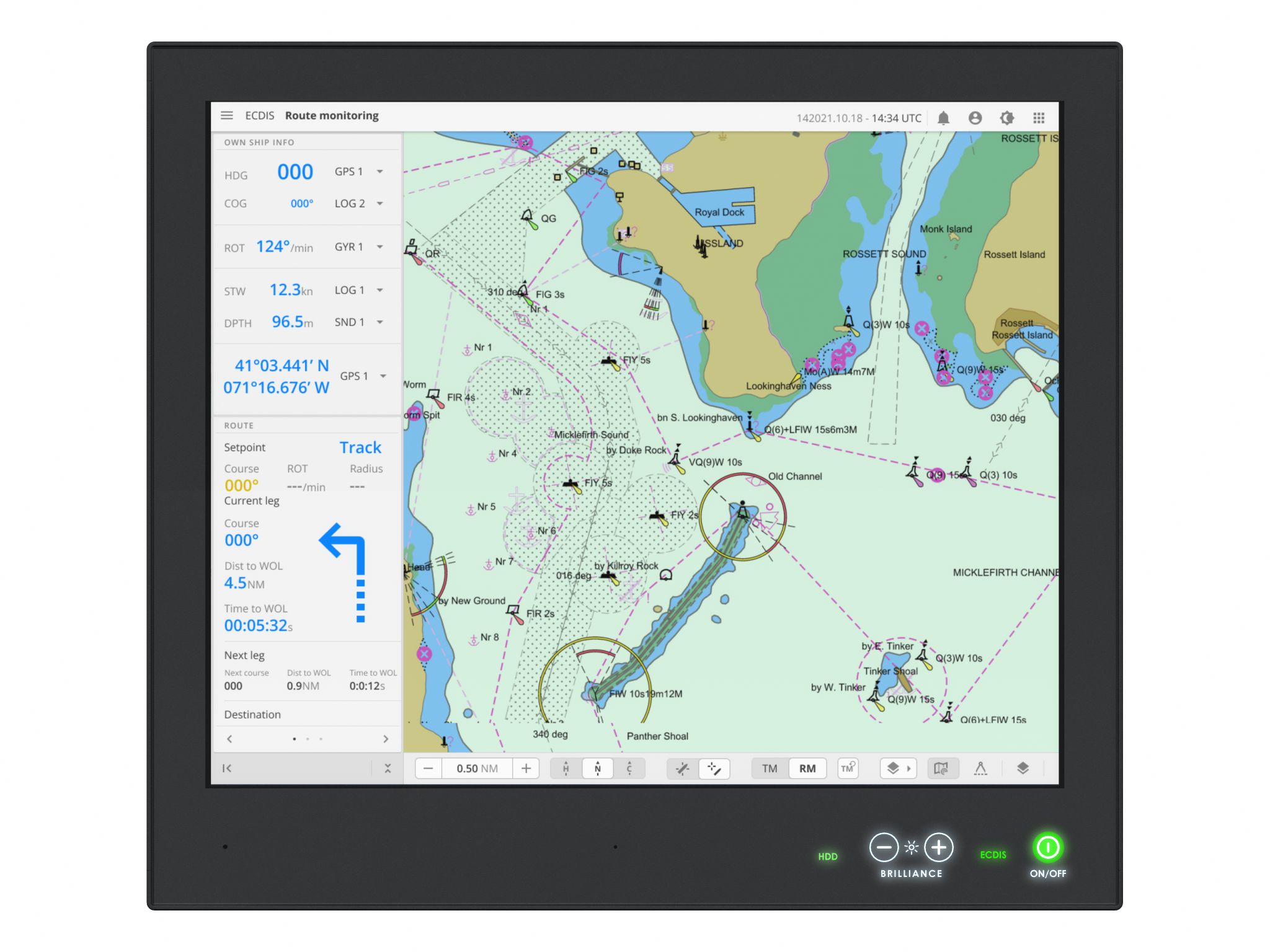

The Hatteland HD 19T26 MMC is a 19.0 inch Maritime Multi Computer designed for marine environments where both display and computing functions are required in one unit. Its 1280 x 1024 (SXGA) resolution, MVA LCD technology, 350 cd/m² typical brightness, and 1500:1 typical contrast ratio provide a clear viewing platform for marine software and operational information. The integrated Intel® Core™ i7-1185G7E processor, DDR4-3200 memory support, internal M.2 SATA SSD, and multiple display and network interfaces support a wide range of onboard computing tasks.
Usages
The Hatteland HD 19T26 MMC can be used for marine control, monitoring, navigation-related computing, vessel management, and other applications where an integrated maritime computer is required. Its multiple USB, DisplayPort, Ethernet, USB-C, AC, and DC interfaces allow it to connect with different onboard systems and peripherals.
Benefits
The integrated computer and display design helps reduce the need for separate equipment in marine workstations. The 19.0 inch screen provides a practical display area, while the Intel® Core™ i7-1185G7E processor and DDR4-3200 memory options provide computing capacity for onboard applications. Multi-power support allows AC and DC operation, while IP66 front protection and marine operating temperature specifications support use in demanding environments. Features such as TPM2.0, LAN Wakeup, GPIO, and a buzzer add useful system management and operational functions.
Key Features
- 19.0 inch MVA LCD display with 1280 x 1024 (SXGA) resolution for clear marine system viewing.
- Intel® Core™ i7-1185G7E processor provides integrated computing performance for onboard applications.
- DDR4-3200 Dual Channel memory supports configurations from 8GB > 64GB.
- M.2 SATA internal SSD provides integrated storage for the computer system.
- Multi-power AC & DC supports 100-240V AC and 24VDC operation.
- IP66 front protection supports installation in marine environments.
- Three RJ-45 Ethernet ports provide multiple network connections for onboard systems.
- Dual DisplayPort and USB-C DP ALT mode provide flexible display connectivity.
SPECIFICATION
|
High Quality TFT with LED Backlight Technology, TFT active-matrix liquid crystal panel,
MVA (Multi-domain Vertical Alignment) LCD Technology
|
| 19.0 inch - 376.32 [14.82"] (H) x 301.056 [11.85"] (V) mm [inch] |
| 1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm |
| 5:4 - 35ms (typical, "black" to "white") |
| 350 cd/m² (typ) - 1500:1 (typ) |
| 85 deg. (up/down/left/right) - 16.7 million |
| 1280 x 1024 @ 60 Hz |
| DP++ Out Max Res.: 640 x 480 to 4096 x 2304 @ 60Hz |
Multipower: 100-240V AC - 50/60Hz + 24VDC
Operating DC: 78.4W (typ) - 156W (max) |
| Dimmable 0-100%, Buzzer, Multi-power AC & DC, TPM2.0, GPIO, LAN Wakeup |
| None or Standard OS/Customized image, review datasheet for list. |
1 x SSD SATA Type M.2 internal
|
| 1 x Intel® Core™ i7-1185G7E 1.8GHz/4.4GHz 4/8, 12MB, 15W (standard) |
| DDR4-3200, Dual Channel 8GB > 64GB |
| Intel® Iris® Xe Graphics 1.35Ghz, 96 exe units (for i7-1185G7E) |
EFI, ACPI Support. Preconfigured by factory / Buzzer: 3500Hz
No Onboard PC-Beeper |
AT, ACPI (S3/S4) - TPM2.0, Temperature, Fan and voltages status
256 Segments, 0, 1, 2...255 sec/min |

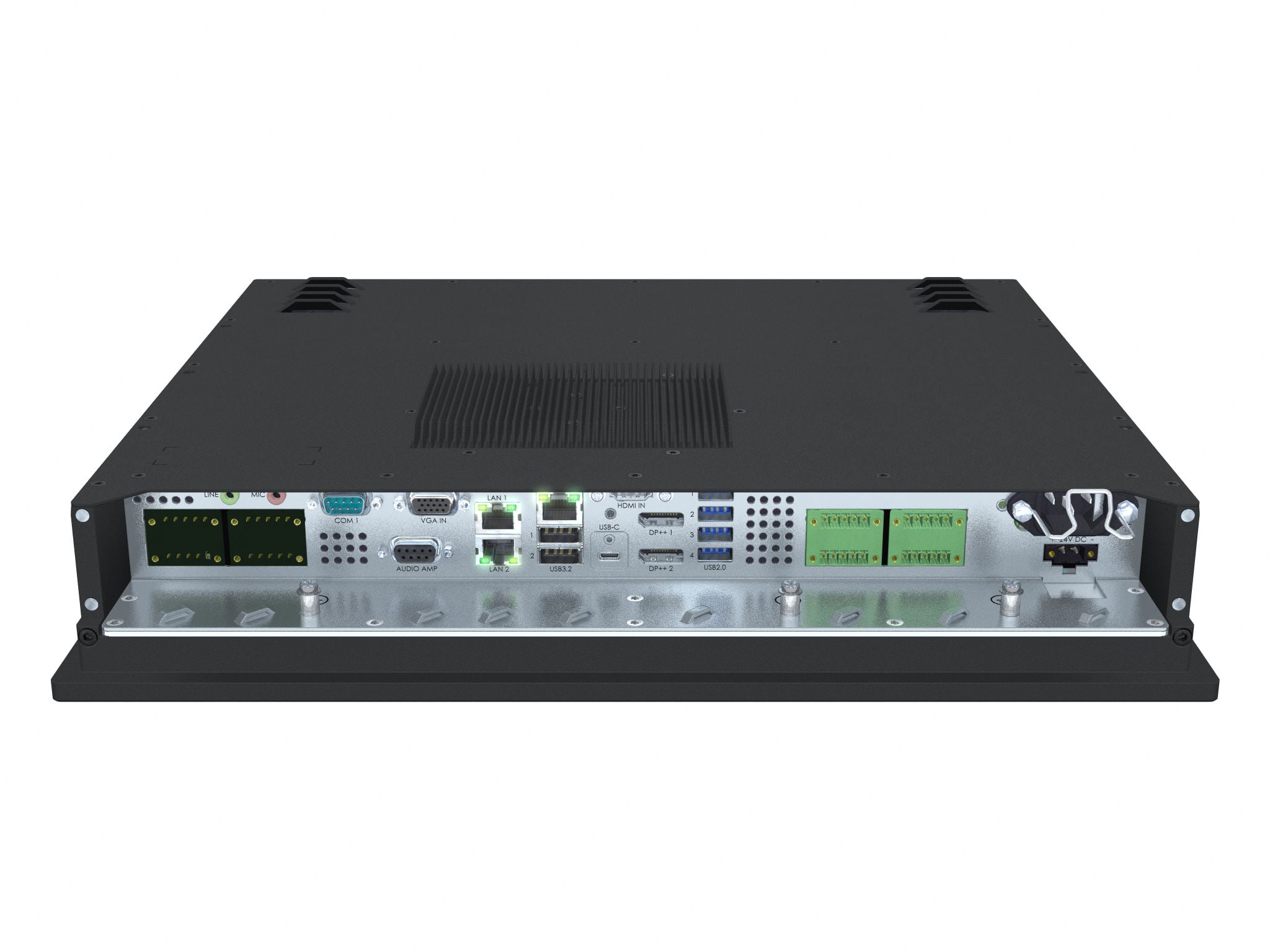

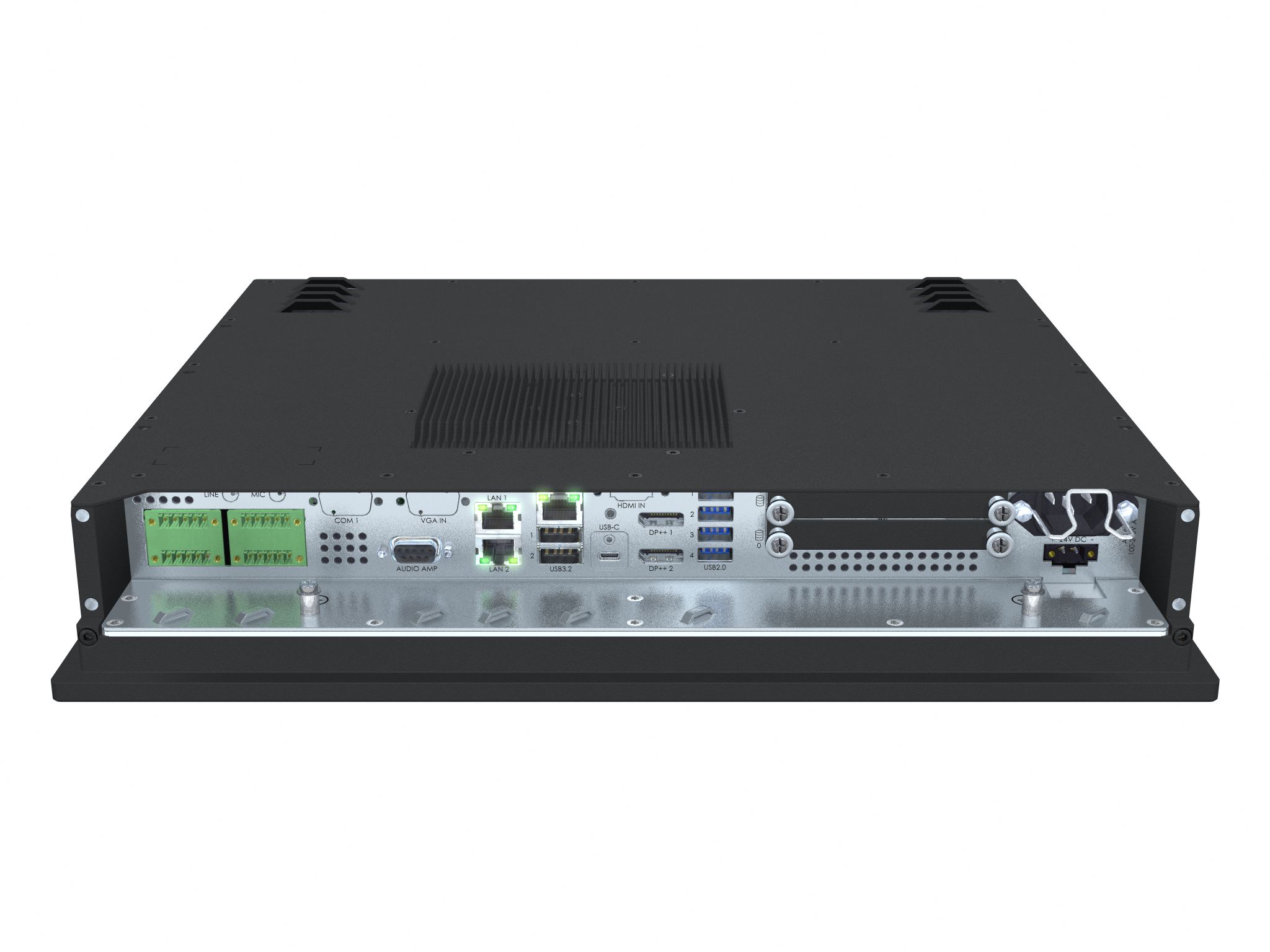

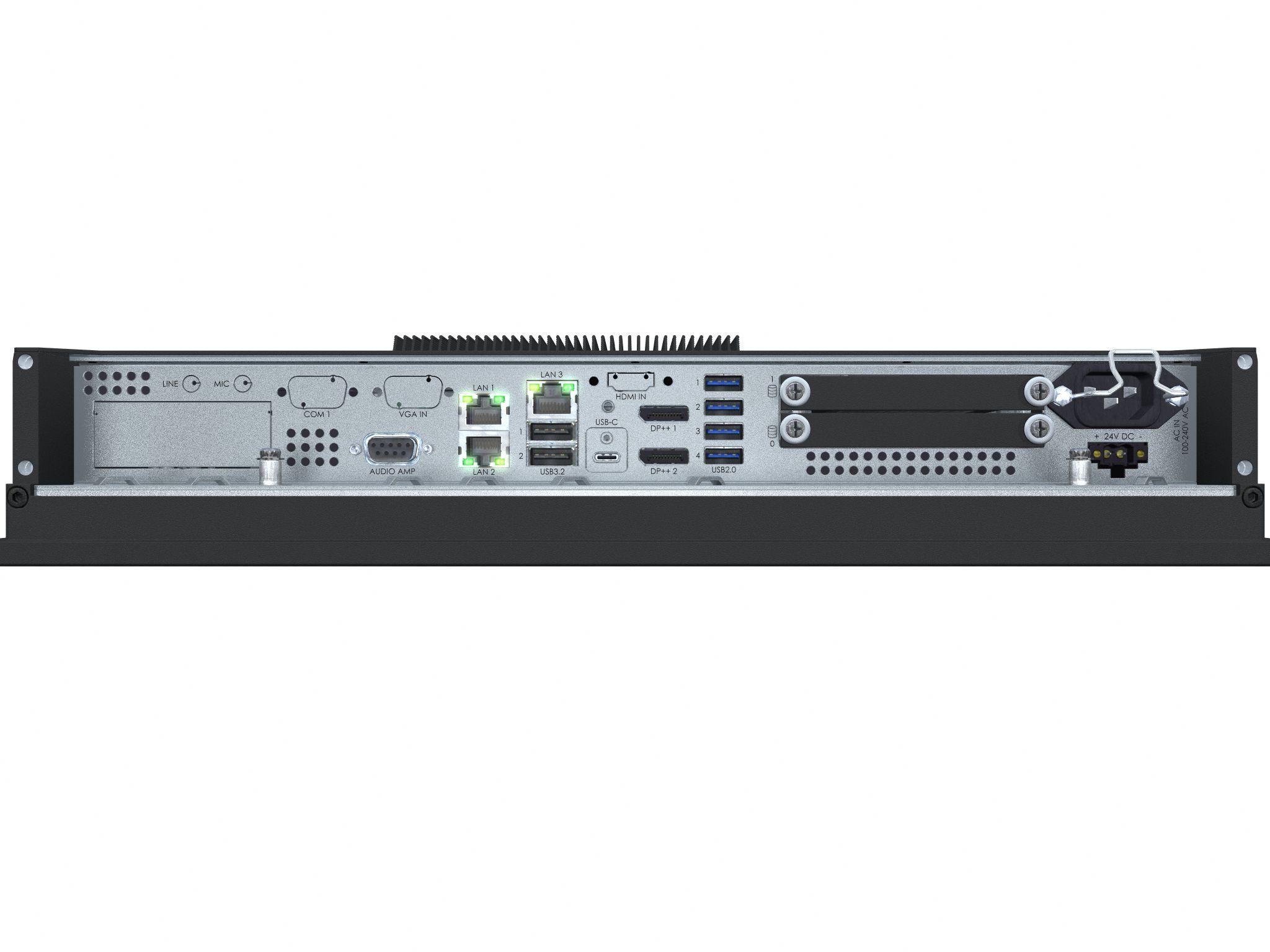

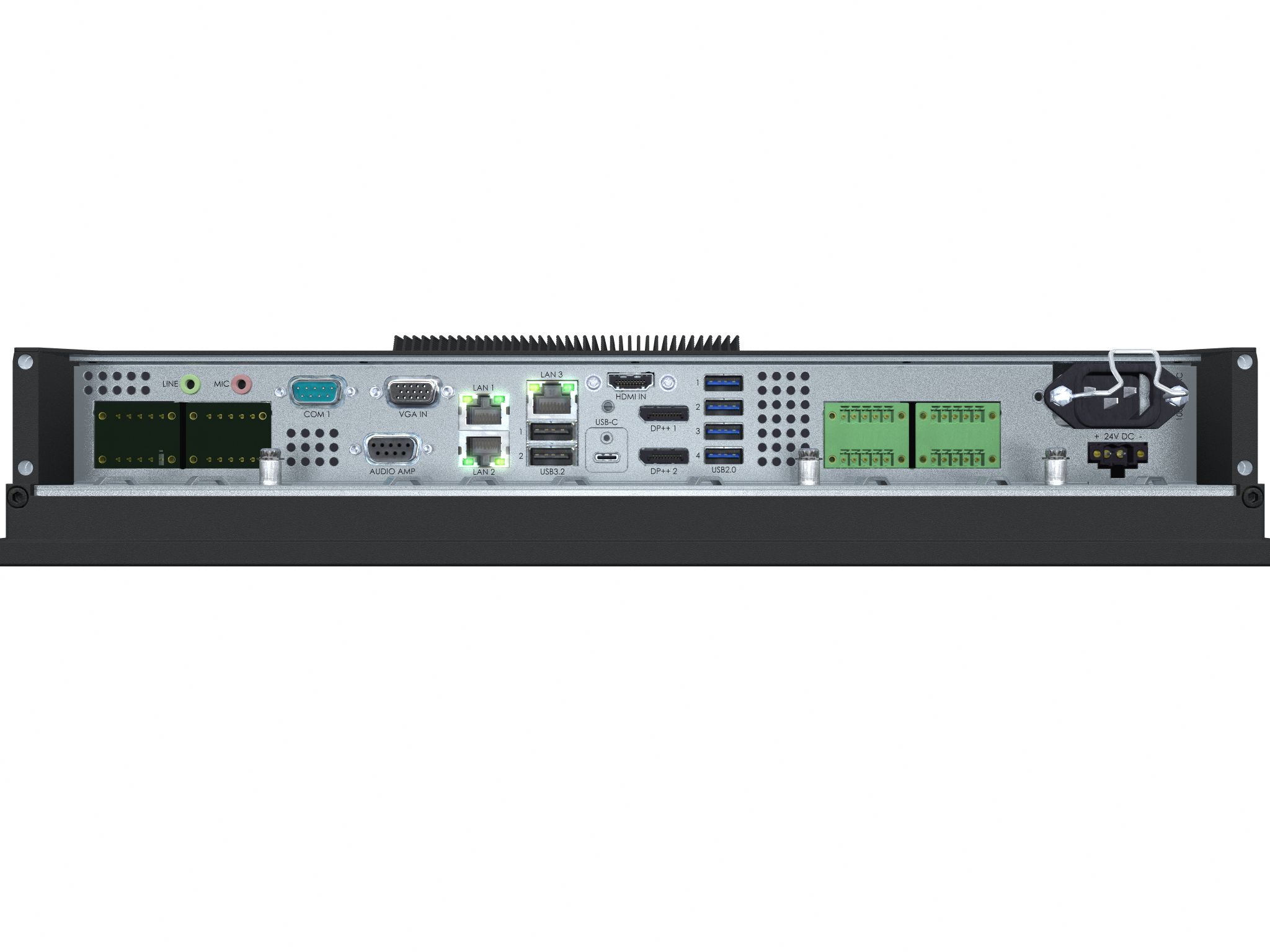

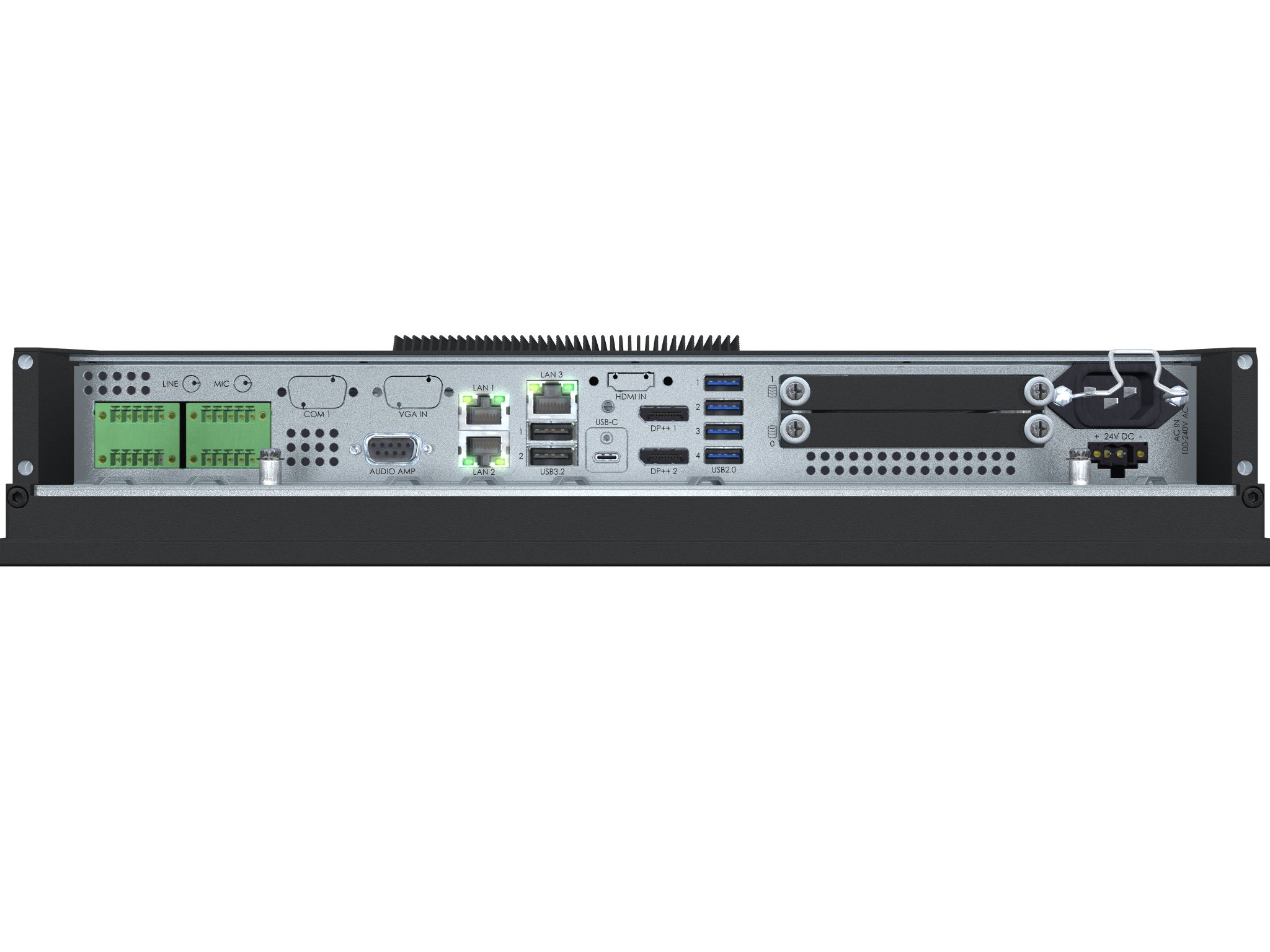

• USB-C: 1 x USB-C DP ALT mode, PD/DP (60W)
• DP++ 1.2 OUT: 2 x DisplayPort Female (Dual-Mode DP++)
• USB2.0 (<5m): 4 x USB Type A (4-pin)
• USB3.0 (<3m): 2 x USB Type A (9-pin)
• Ethernet GBLan: 3 x RJ-45
• Amplified Audio: 1 x DB9 Female 2W@70ºC
• If SSD Trays option: 2 x 2.5" Sized Tray/Bay (Factory option)
• AC Power IN: 1 x Std IEC inlet
• DC Power IN: 1 x 2-pin Terminal Block 5.08 |
W:429.00 [16.89"] x H:382.00 [15.04"] x D:80.00 [3.15"] mm [inch]
Approx. 8.5kg / 18.7lbs |
L:530.00 [20.87"] x W:200.00 [7.87"] x H:540.00 [21.26"] mm [inch]
Approx. TBDkg / TBDlbs |
| -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95% |
| -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95% |
| Protection: IP66 front - IP20 rear (EN60529). IP22=option |
| Standard: 85.00 [33.46"] - Steering: 55.00 [21.65"] cm [inch] |
