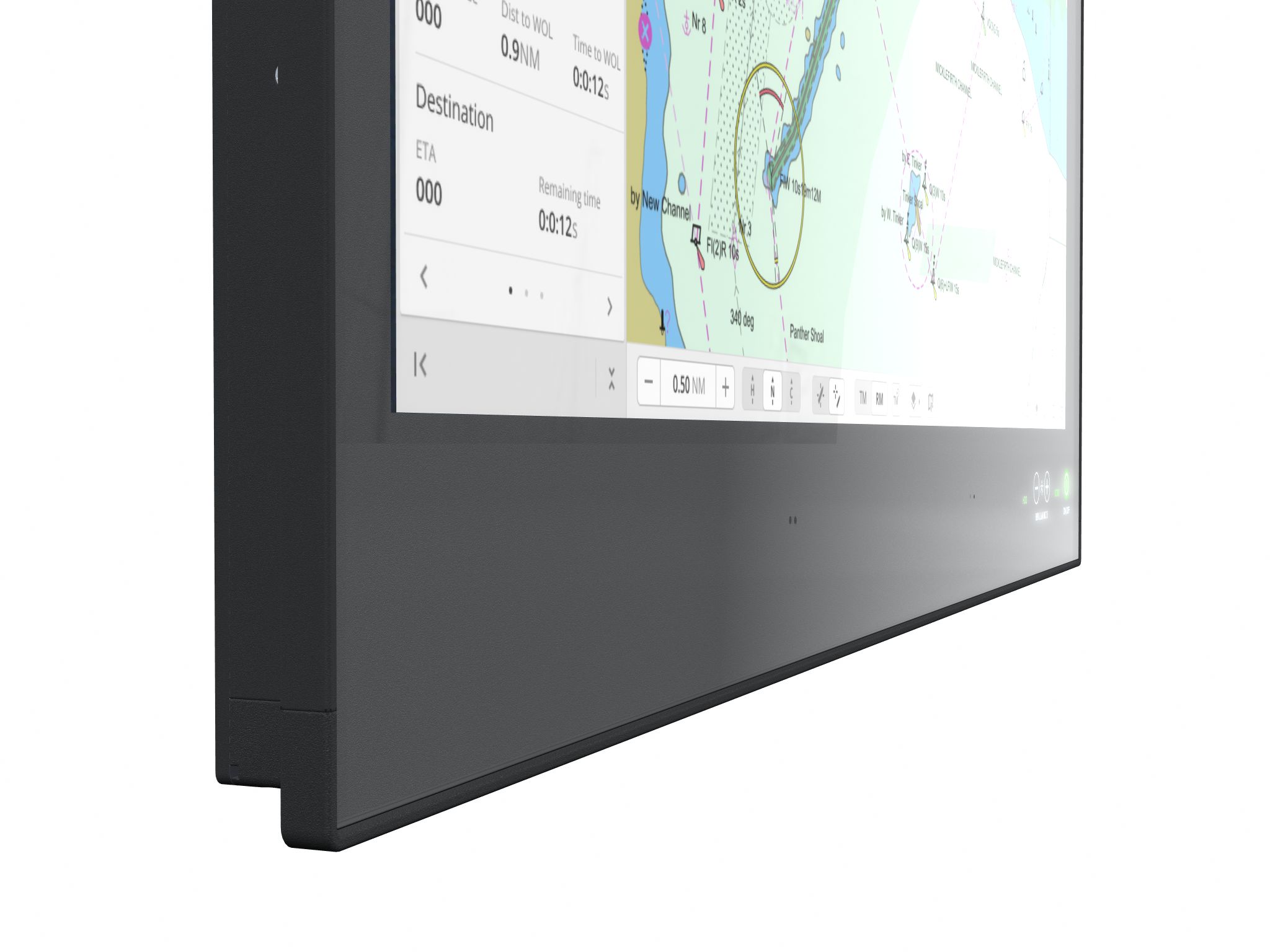

HATTELAND HD 27T26 MMC, Intel Core i7-1185G7E, 27" Panel PC
The HATTELAND HD 27T26 MMC is a 27-inch panel PC designed to provide industrial computing and large-format visualization in demanding environments. It combines a Full HD widescreen display with an Intel Core i7-1185G7E processor, making it suitable for applications that require responsive computing, clear visualization, and reliable operation.

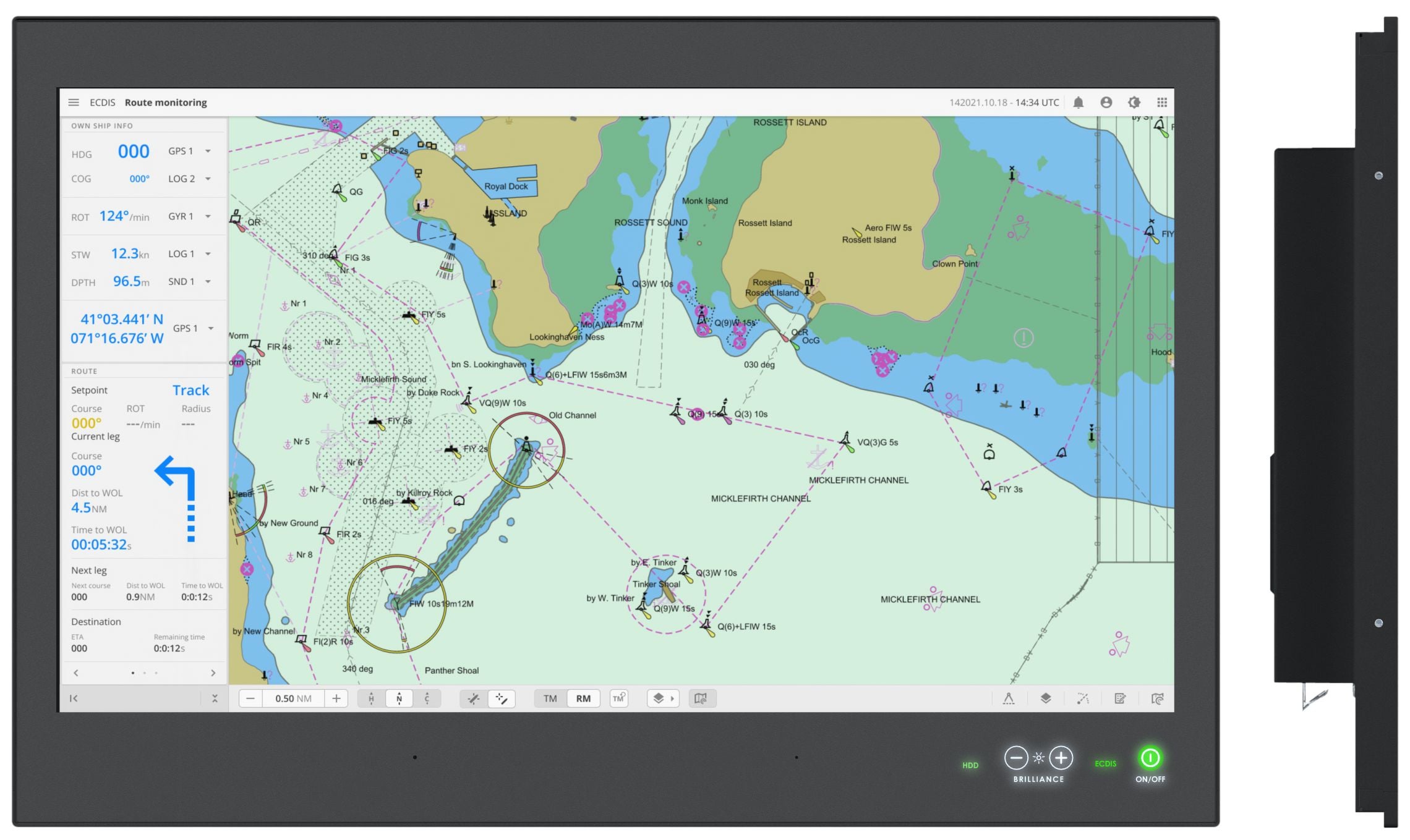

The 27-inch LED-backlit TFT display features a 1920 x 1080 native resolution, 16:9 aspect ratio, 3000:1 typical contrast ratio, and 300 cd/m² typical light intensity. Its wide viewing angle and 16.7 million color support provide clear visual information for operator interfaces, monitoring systems, control applications, and industrial workstations.
The computer platform includes Intel I225IT Gigabit LAN ports with Intel Teaming, an additional Realtek RTL8119i Gigabit LAN port, Realtek HD Audio, TPM 2.0, secure boot support, LAN wakeup, and a watchdog timer. The system also supports temperature, fan, and voltage monitoring, helping provide useful management features for industrial computing installations.
Storage options include an internal enterprise 24/7 M.2 SATA SSD with power loss protection and optional removable 2.5-inch SATA SSD trays. DDR4-3200 dual-channel memory is available from 8GB to 64GB, while operating system options include Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, and Linux. Multiple USB, DisplayPort, Ethernet, audio, and power interfaces provide connectivity for industrial peripherals and external displays.
The HATTELAND HD 27T26 MMC can be used for marine and offshore monitoring, industrial control, shipboard systems, operator stations, process visualization, equipment monitoring, and other applications requiring a large rugged panel PC. Its IP66 front protection, -15°C to +55°C operating temperature range, flexible AC/DC power configuration, and optional storage expansion support installation in demanding operational environments.
Key features
-
27-inch widescreen LED-backlit TFT display
-
1920 x 1080 Full HD native resolution
-
Intel Core i7-1185G7E processor with Intel Iris Xe Graphics
-
DDR4-3200 dual-channel memory from 8GB to 64GB
-
Internal M.2 SATA SSD with power loss protection
-
Optional 2 x 2.5-inch removable SATA SSD trays
-
Triple Gigabit Ethernet connectivity with Intel Teaming support
-
IP66 front protection with AC/DC multi-power supply
SPECIFICATION
| TFT Technology |
|
| Backlight Technology |
LED Backlight Technology, Color Active Matrix |
| Viewable Image Size |
27.0 inch |
| Aspect Ratio |
16:9 |
| TFT Type |
a-SI (amorphous silicon) Thin Film Transistor (TFT) |
| TFT Characteristics |
|
| Native Resolution |
1920 x 1080 (FHD) |
| Pixel Pitch (RGB) |
0.31125 (H) x 0.31125 (V) mm |
| Response Time |
12 ms (typical) (on/off) |
| Contrast Ratio |
3000:1 (typical) |
| Light Intensity |
300 cd/m² (typical) |
| Viewable Angle |
+/- 89 deg. (typical) (Up/Down/Left/Right) |
| Active Display Area |
597.6 (H) x 336.15 (V) mm |
| Max Colors |
16.7 million |
| Computer specs |
|
| OS Options |
None or see table below |
| Internal Storage |
1 x SSD SATA, Type m.2. See table below. |
| Removable Storage |
Factory Option: 1 or 2 x 2.5" SSD SATA See table below |
| CPU/Processor |
See table below |
| Memory |
See table below |
| System Chipset |
SOC |
| Graphics Chipset |
See table below for details. |
| Ethernet LAN #1/#2 |
Intel® I225IT Gigabit LAN 10/100/1000Mbps supports Intel® Teaming |
| Ethernet LAN #3 |
Realtek RTL8119i Gigabit LAN 10/100/1000Mbps |
| Audio Chipsets |
Realtek HD AUDIO ALC888 (on-board) |
| BIOS |
EFI, ACPI Support. Preconfigured by factory. |
| PC-Beeper / Buzzer |
Optional Buzzer (according to IEC60945/IACS-E10) |
| Watchdog Timer |
256 Segments, 0, 1, 2...255 sec/min |
| Power Manager |
AT, ACPI (S3/S4) |
| Monitoring |
Temperature, Fan and voltages status |
| Other Features |
LAN wakeup, TPM 2.0, True power on after power fail, possible to use without battery,
FAN speed regulation, Secure boot support as default
|
| DP++ Out Max Res. |
640 x 480 to 4096 x 2304 @ 60Hz |
| Available computer specification |
|
| CPU |
Intel® Core™ i7-1185G7E 1.8GHz/4.4GHz 4/8, 12MB, 15W (standard) |
| Memory |
|
| RAM |
DDR4-3200, Dual Channel 8GB > 64GB |
| Graphics |
|
| Chipset |
Intel® Iris® Xe Graphics 1.35Ghz, 96 exe units (for i7-1185G7E) |
| Storage #1 |
|
| Storage #1 |
1 x SSD SATA Type m.2 internal. Enterprise 24/7, (according to JESD218 standard
with JESD219 workload). Power loss protection.
|
| Capacity |
240GB > 480GB |
| OS |
|
| OS |
Windows® 10 IoT Enterprise 2019 LTSC (64bit) |
| Power |
|
| Multi-Power Supply |
100-240V AC 50/60Hz + 24VDC |
| Power Consumption |
Operating AC/DC: 72W (typ) - 156W (max) |
| Environment |
|
| Operating Temperature |
-15ºC to +55ºC |
| Storage Temperature |
-20ºC to +60ºC |
| Humidity |
Up to 95% (Operating / Storage) |
| IP-Rating Protection |
IP66 front - IP20 rear (EN60529). IP22=option |
| Compass Safe Distance |
Standard: 85cm - Steering: 50cm |
| Physical |
|
| Product Dimensions and Weight |
W:650.00 [25.59''] x H:437.00 [17.20''] x D:81.50 [3.21''] mm [inch] |
| Weight |
12.1kg / 26.6lbs |

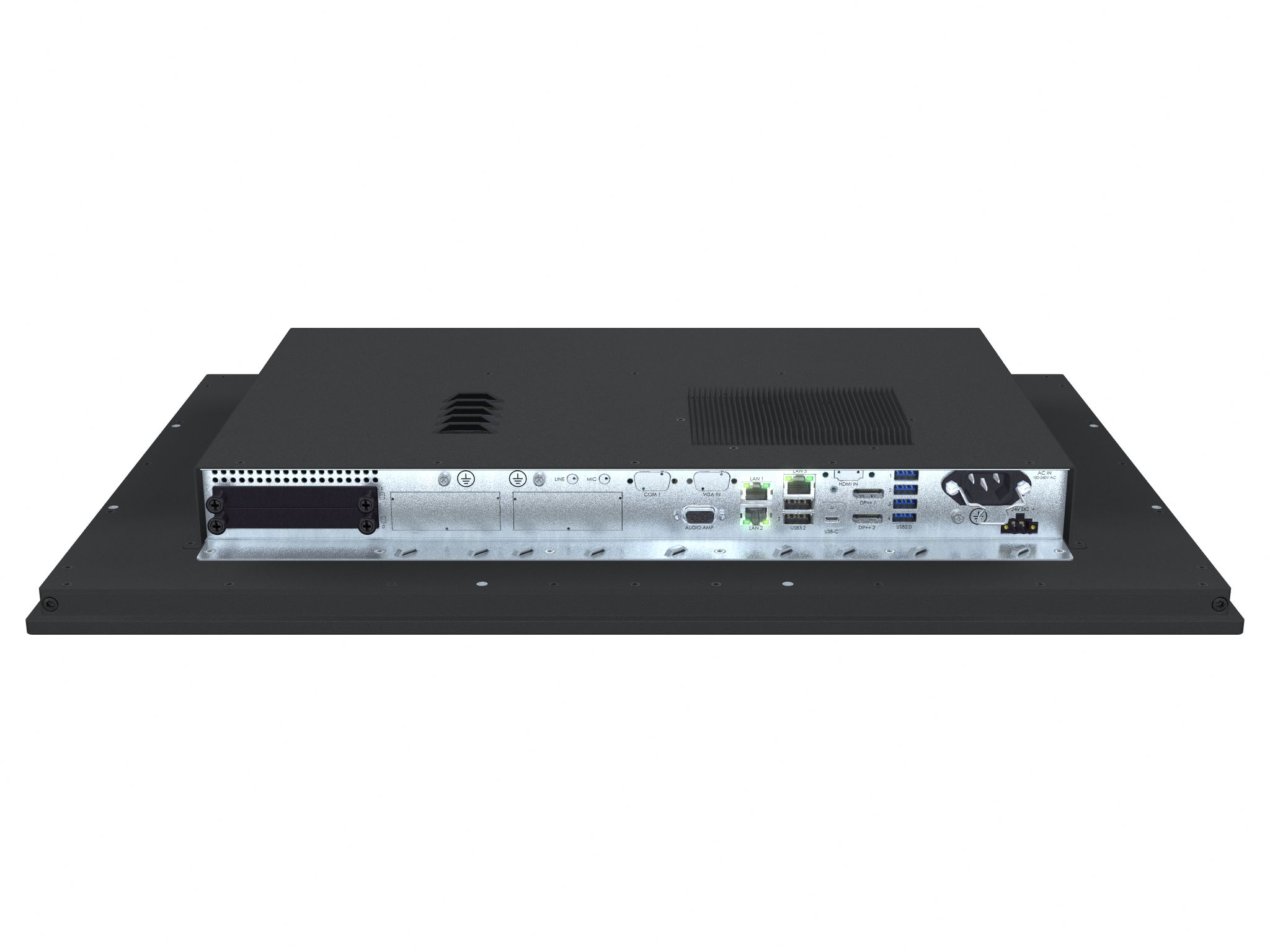

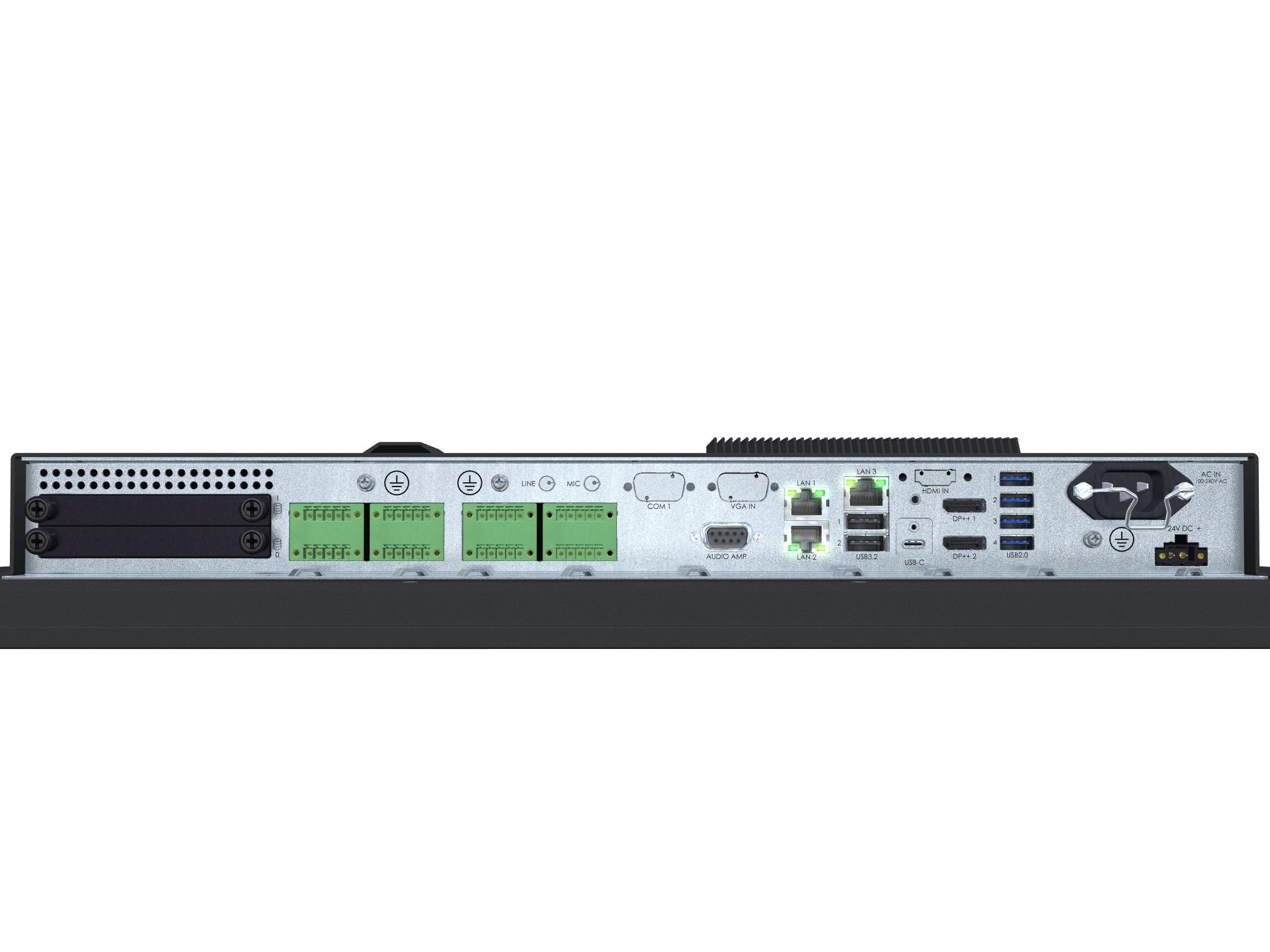

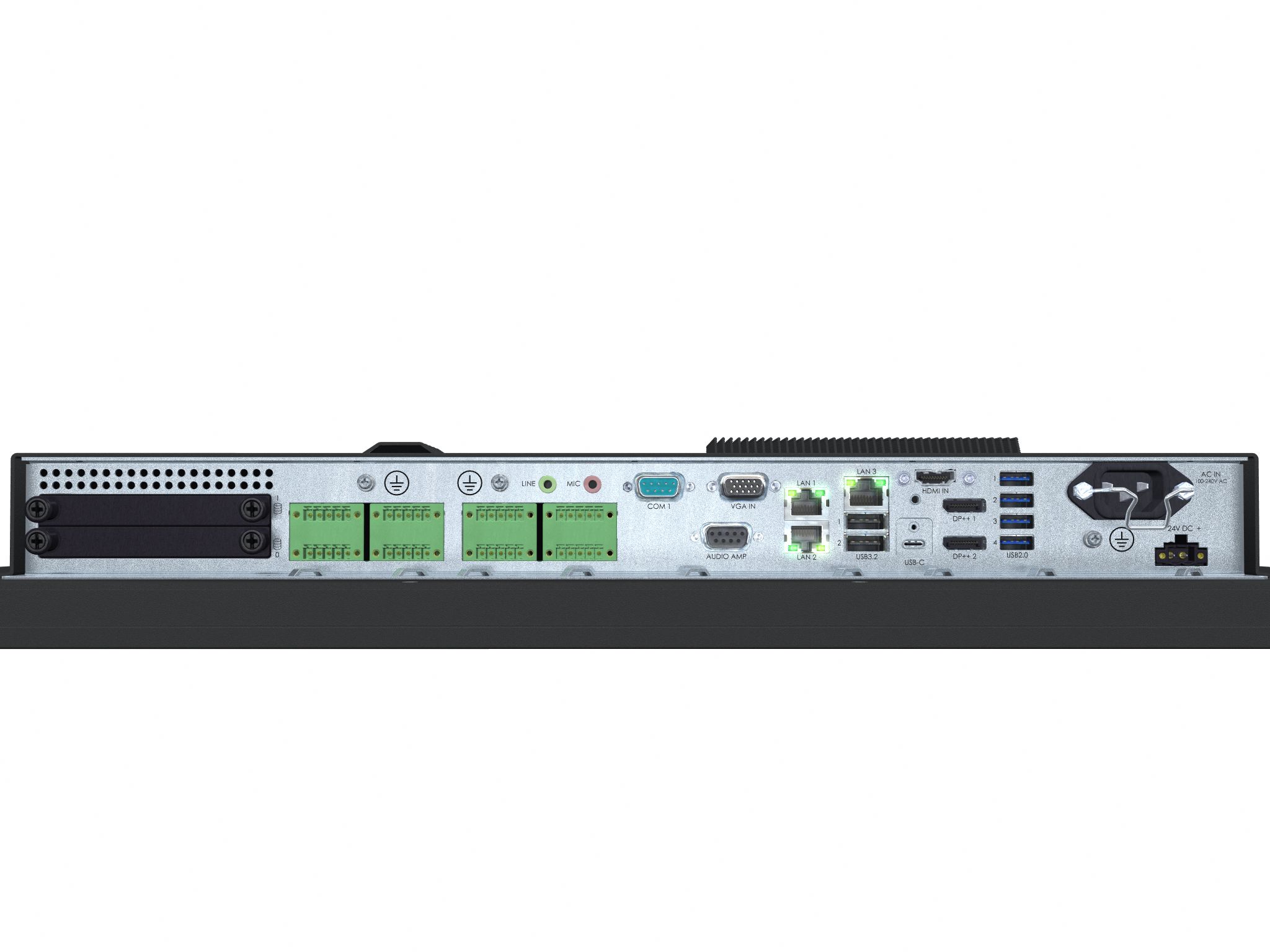

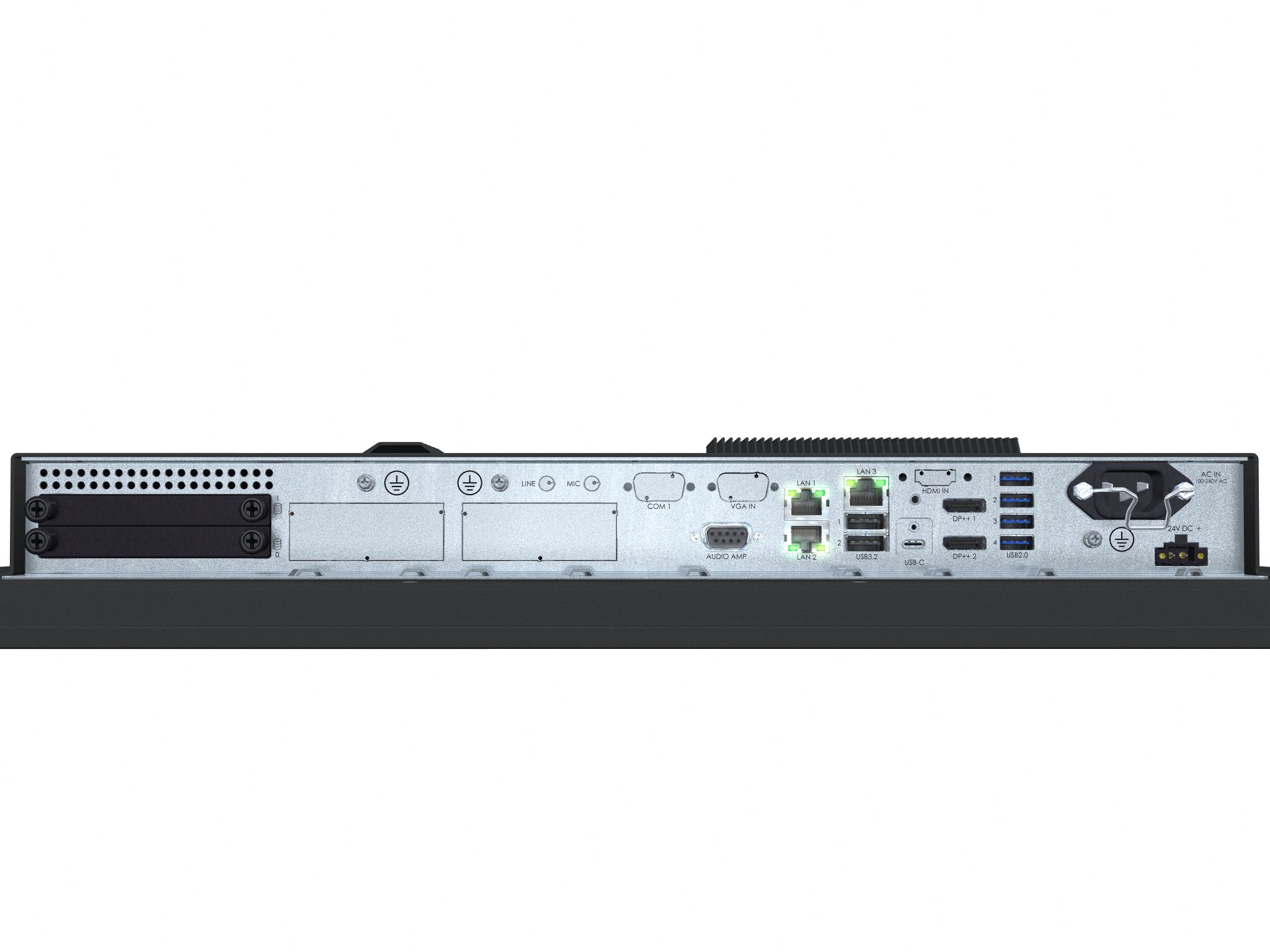

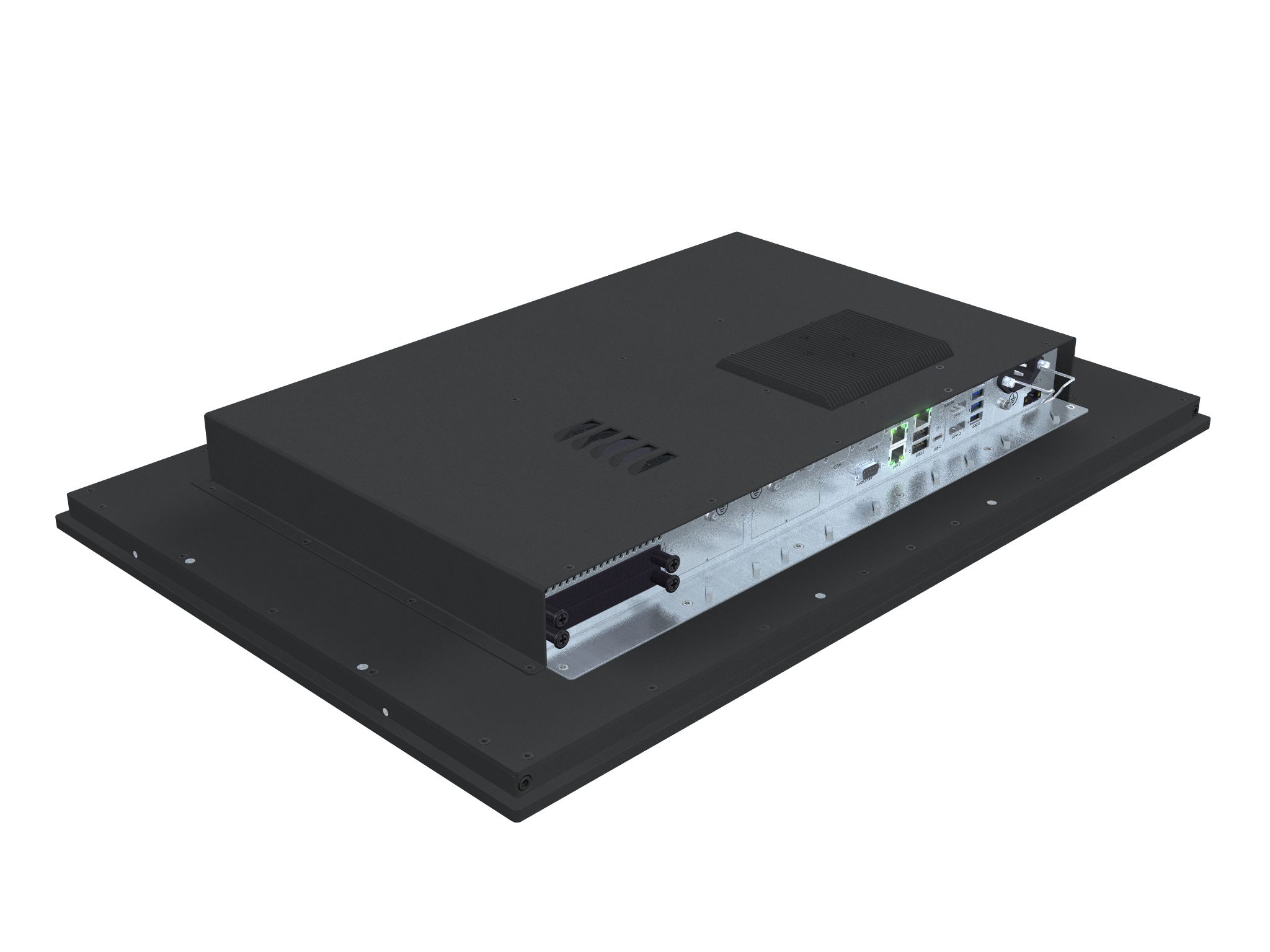

| Input/Output connector |
|
| USB-C |
1 x USB-C DP ALT mode, PD/DP (60W) |
| DP++ 1.2 OUT |
2 x DisplayPort Female (Dual-Mode DP++) |
| USB2.0 (<5m) |
4 x USB Type A (4-pin) |
| USB3.0 (<3m) |
2 x USB Type A (9-pin) |
| Ethernet GBLan |
3 x RJ-45 |
| Amplified Audio |
1 x DB9 Female 2W@70ºC |
| If SSD Trays option |
2 x 2.5" Sized Tray/Bay (Factory option) |
| AC Power IN |
1 x Std IEC inlet |
| If DC Power IN |
1 x 2-pin Terminal Block 5.08 |
