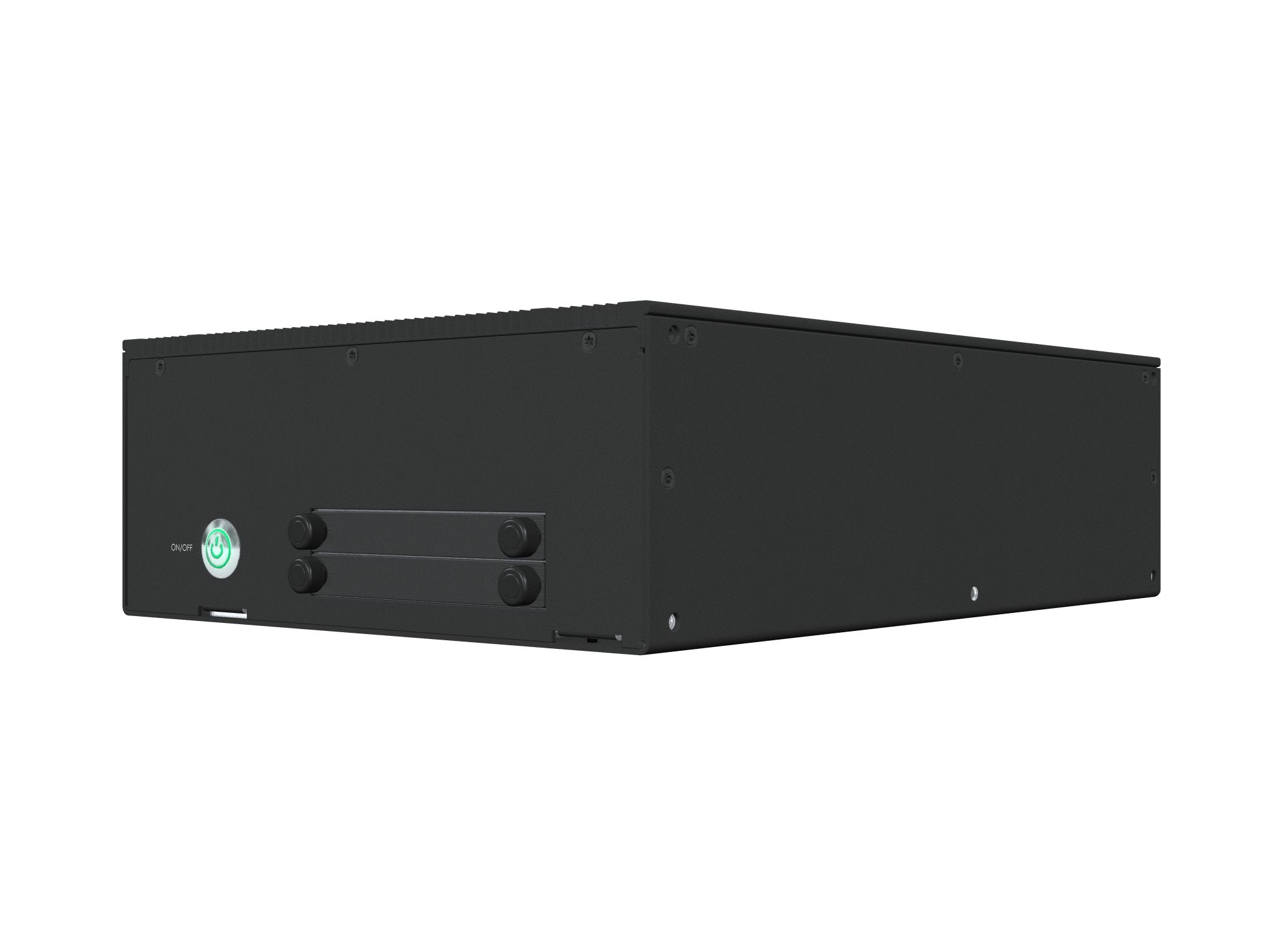

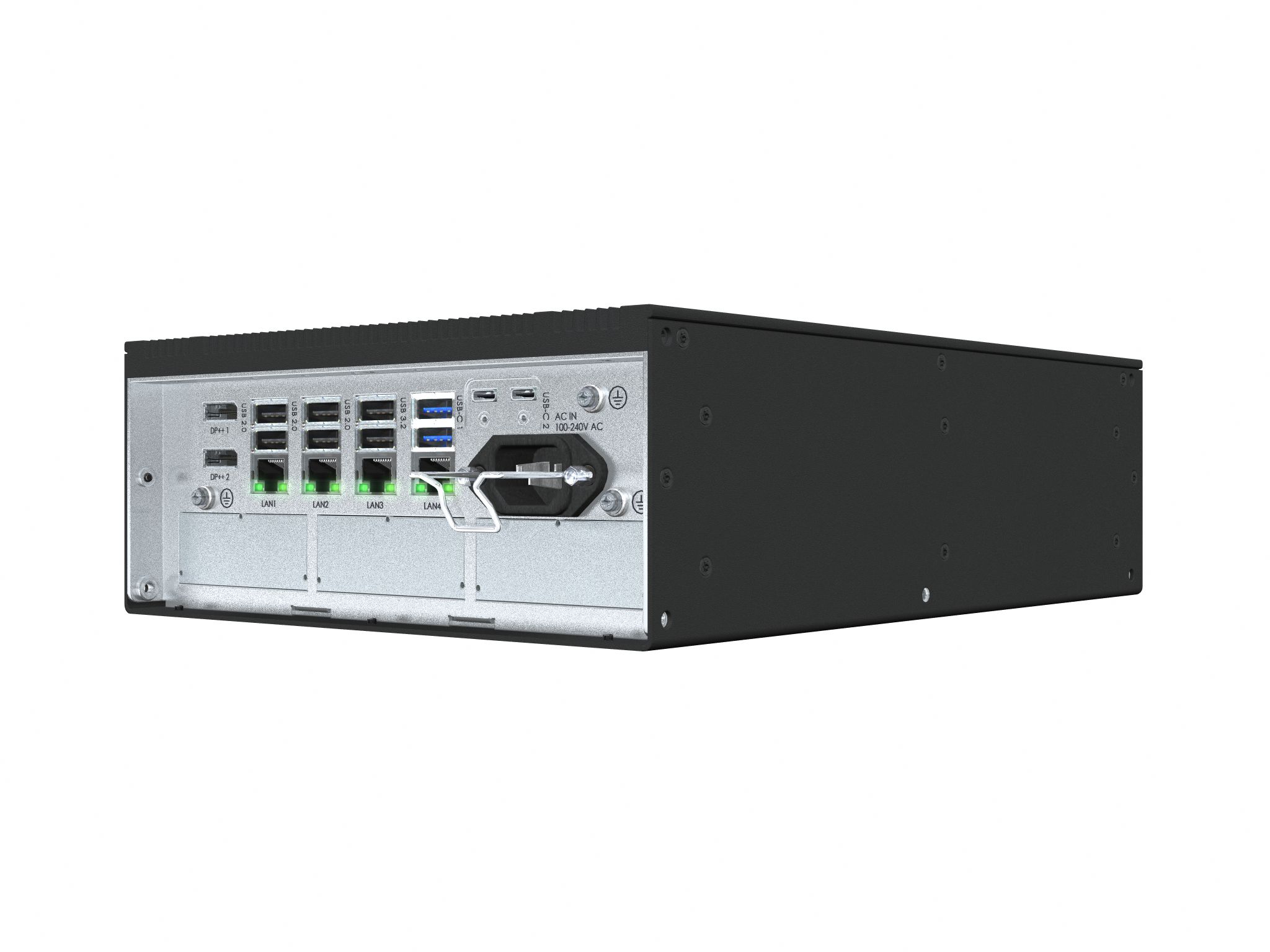

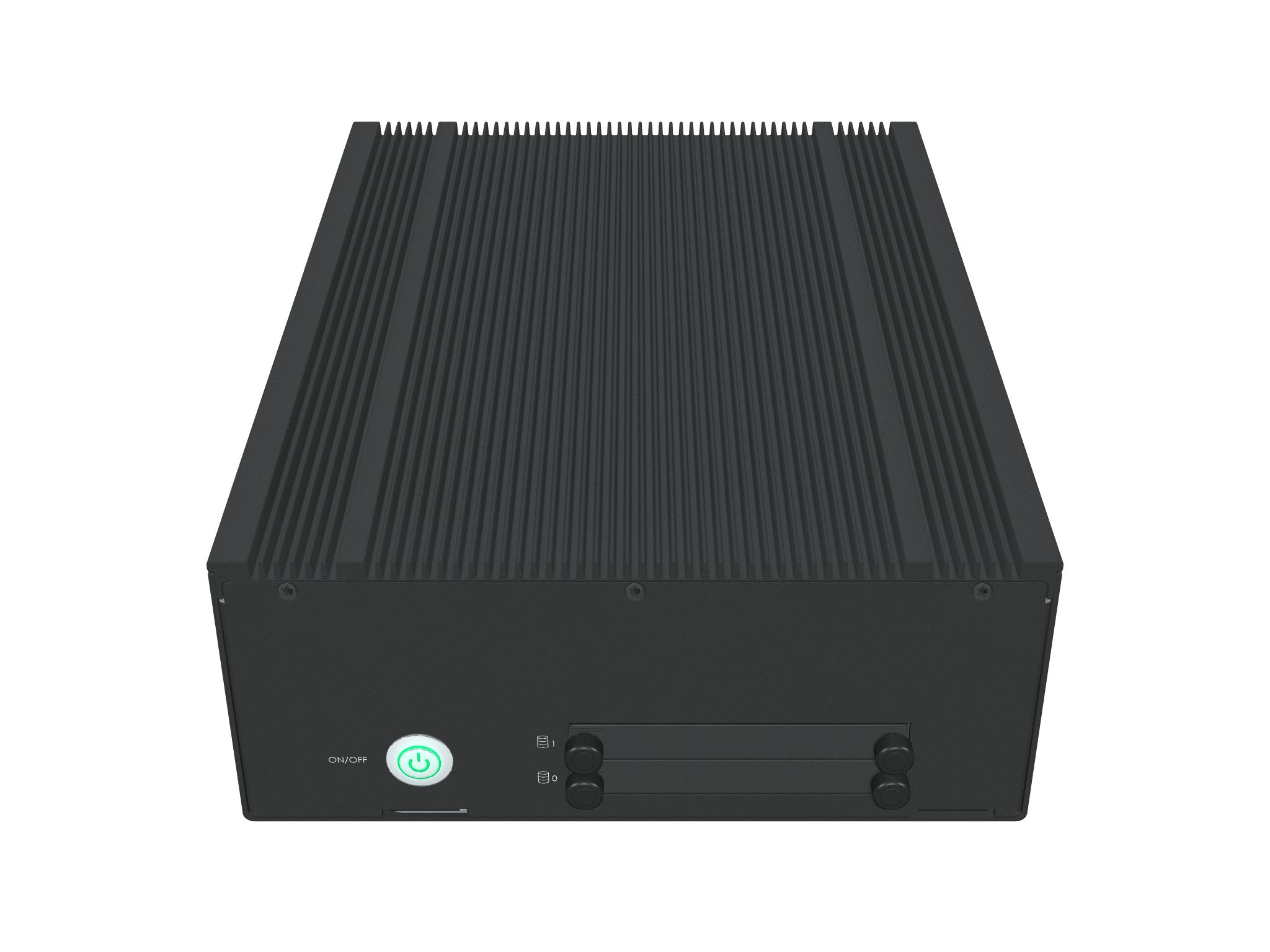

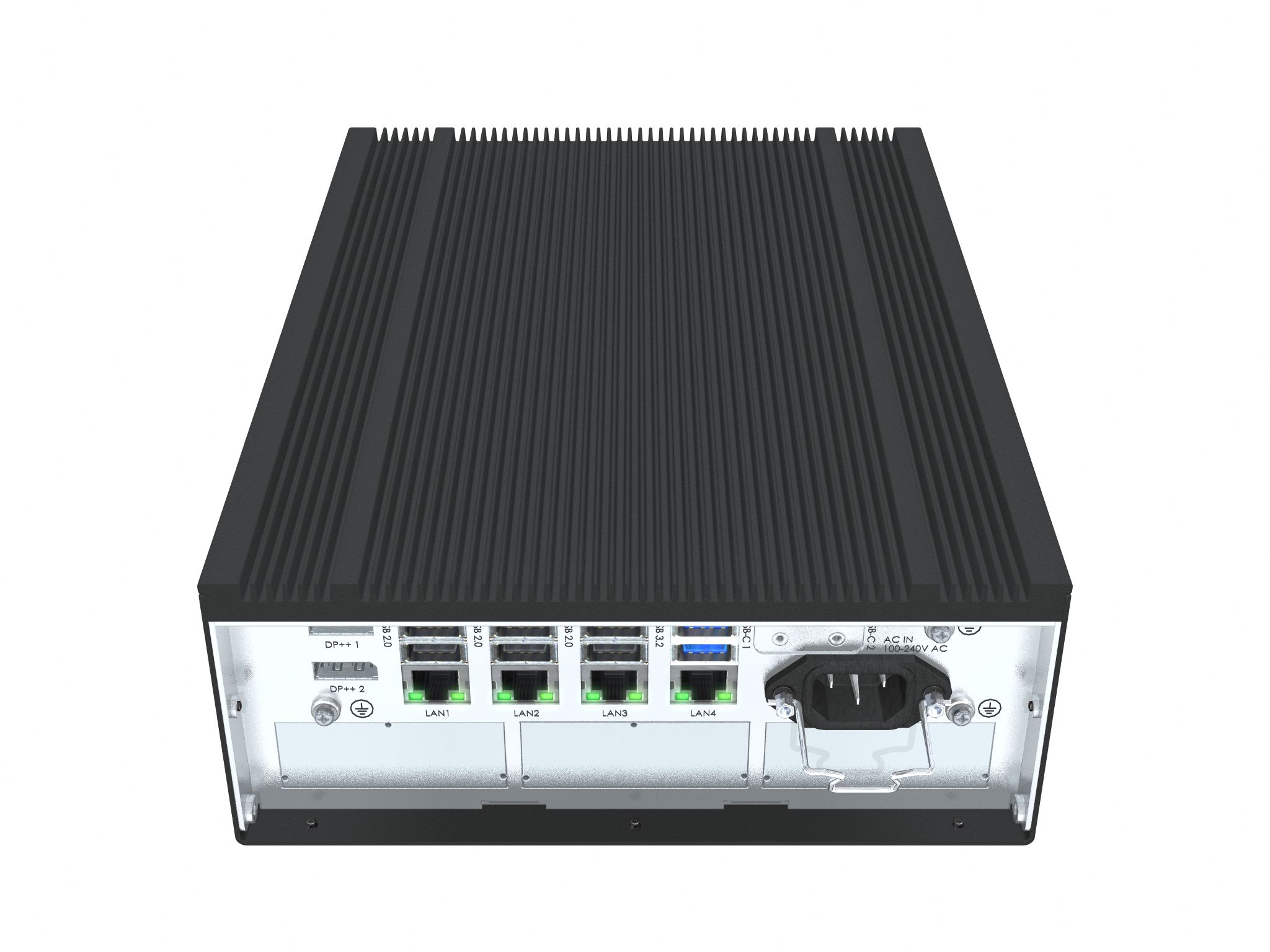

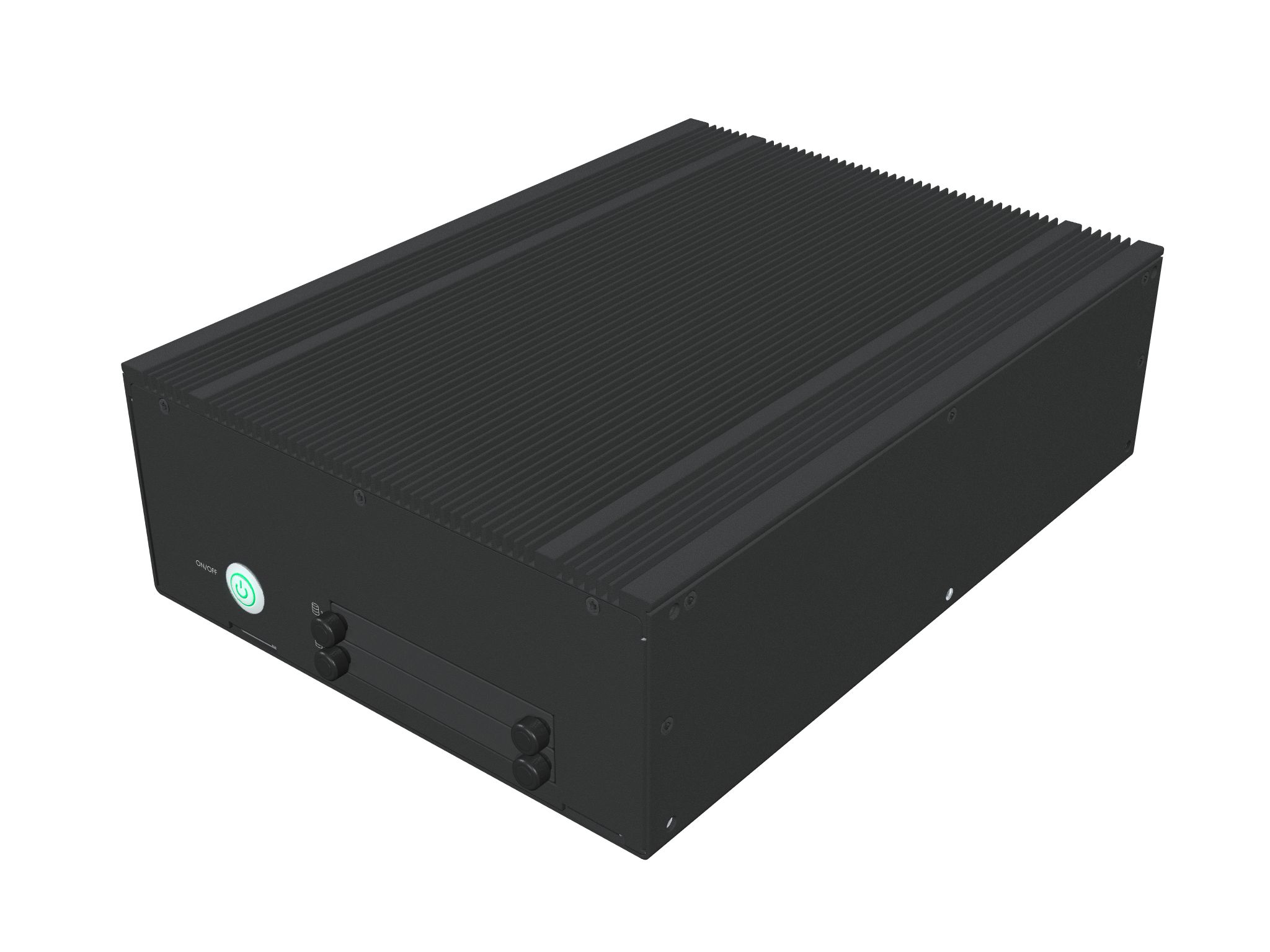

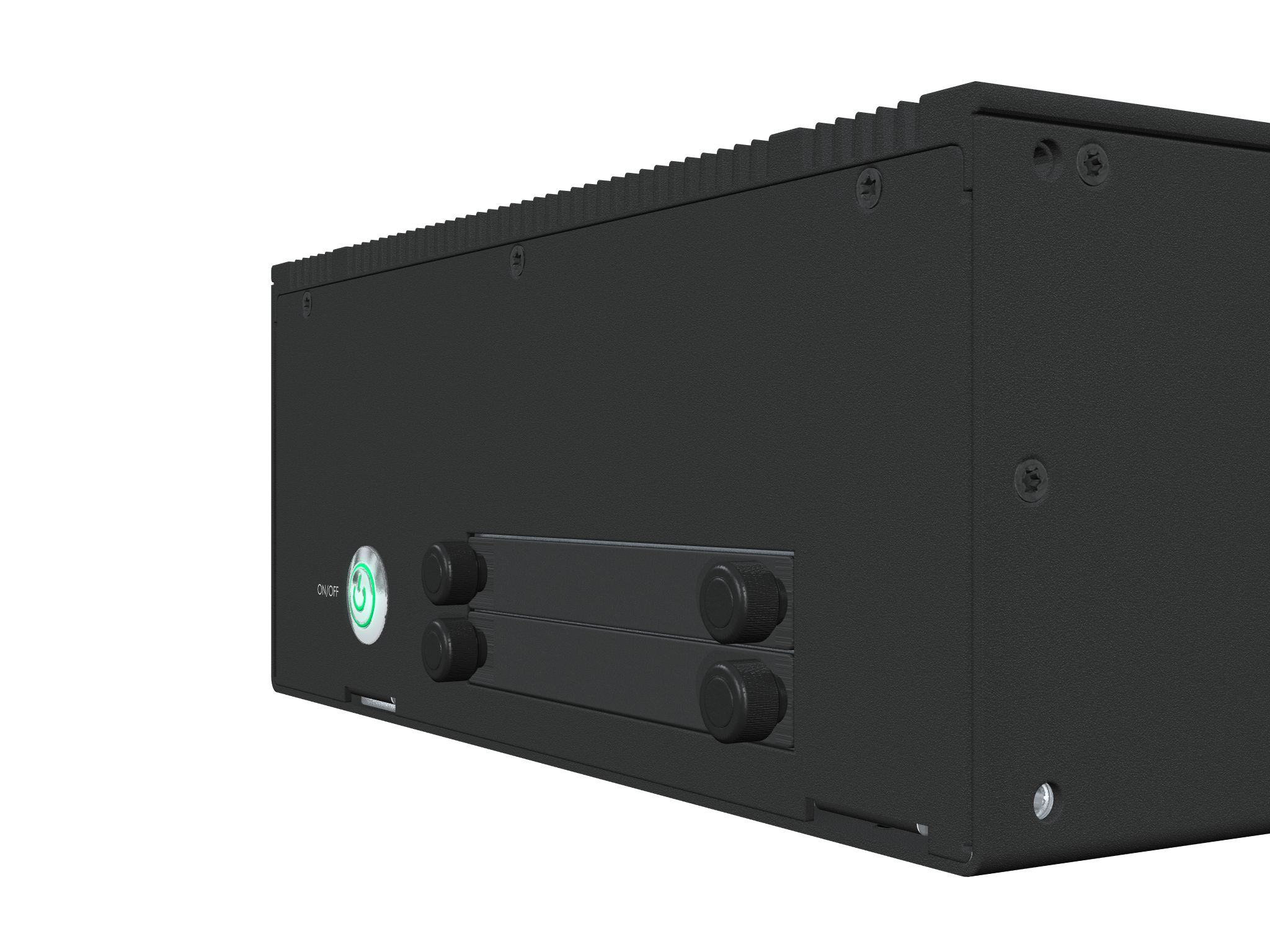

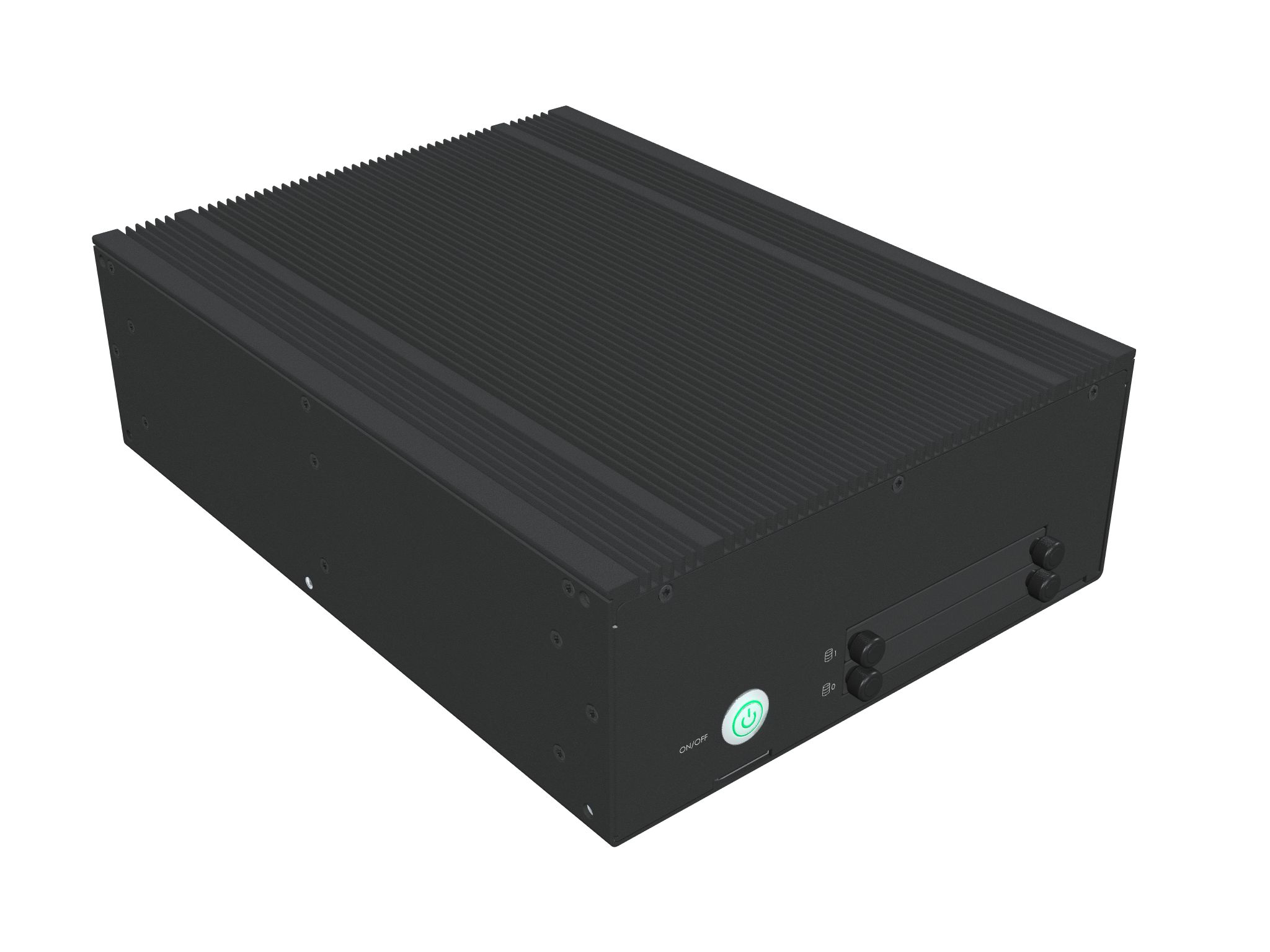

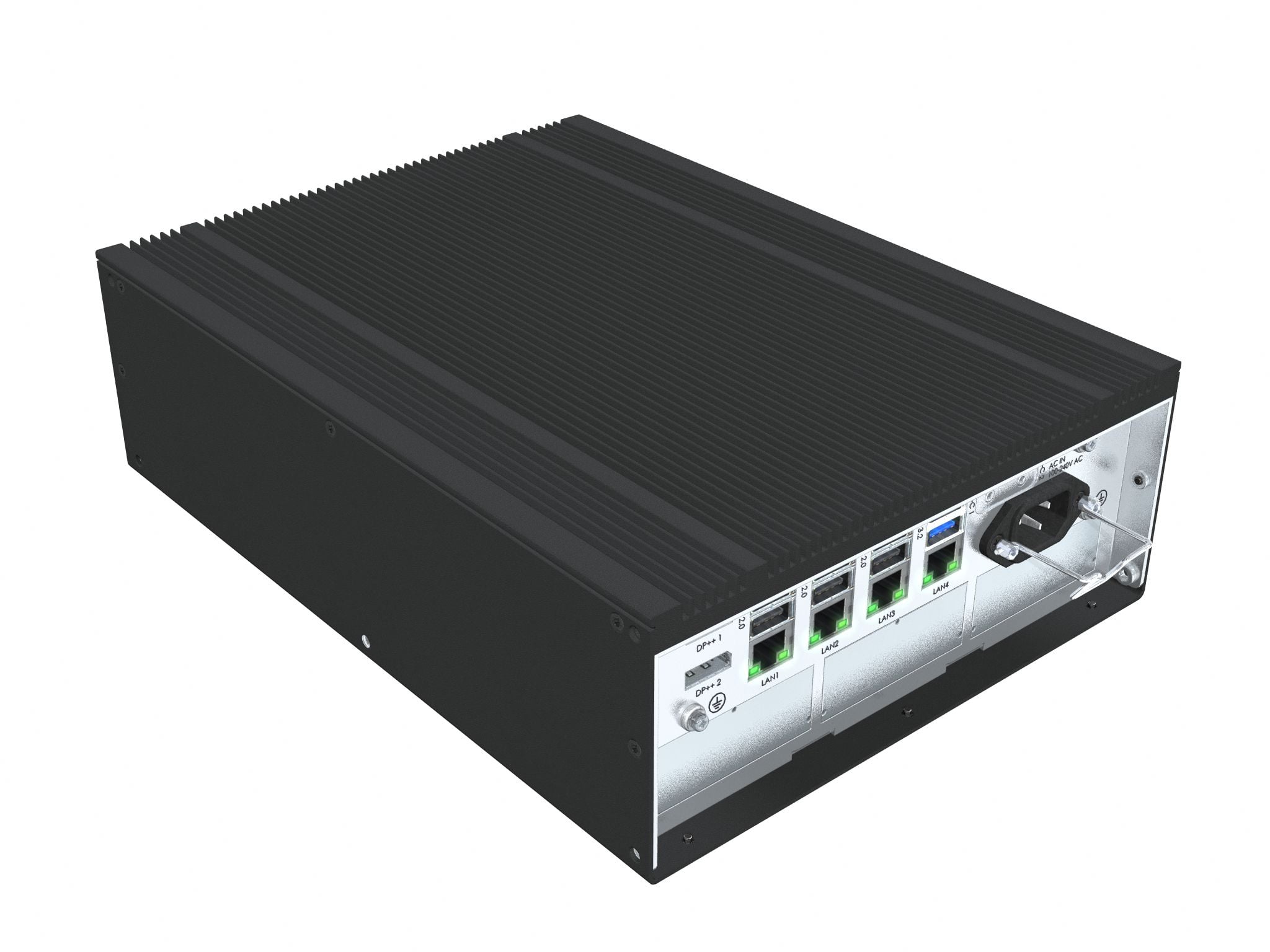

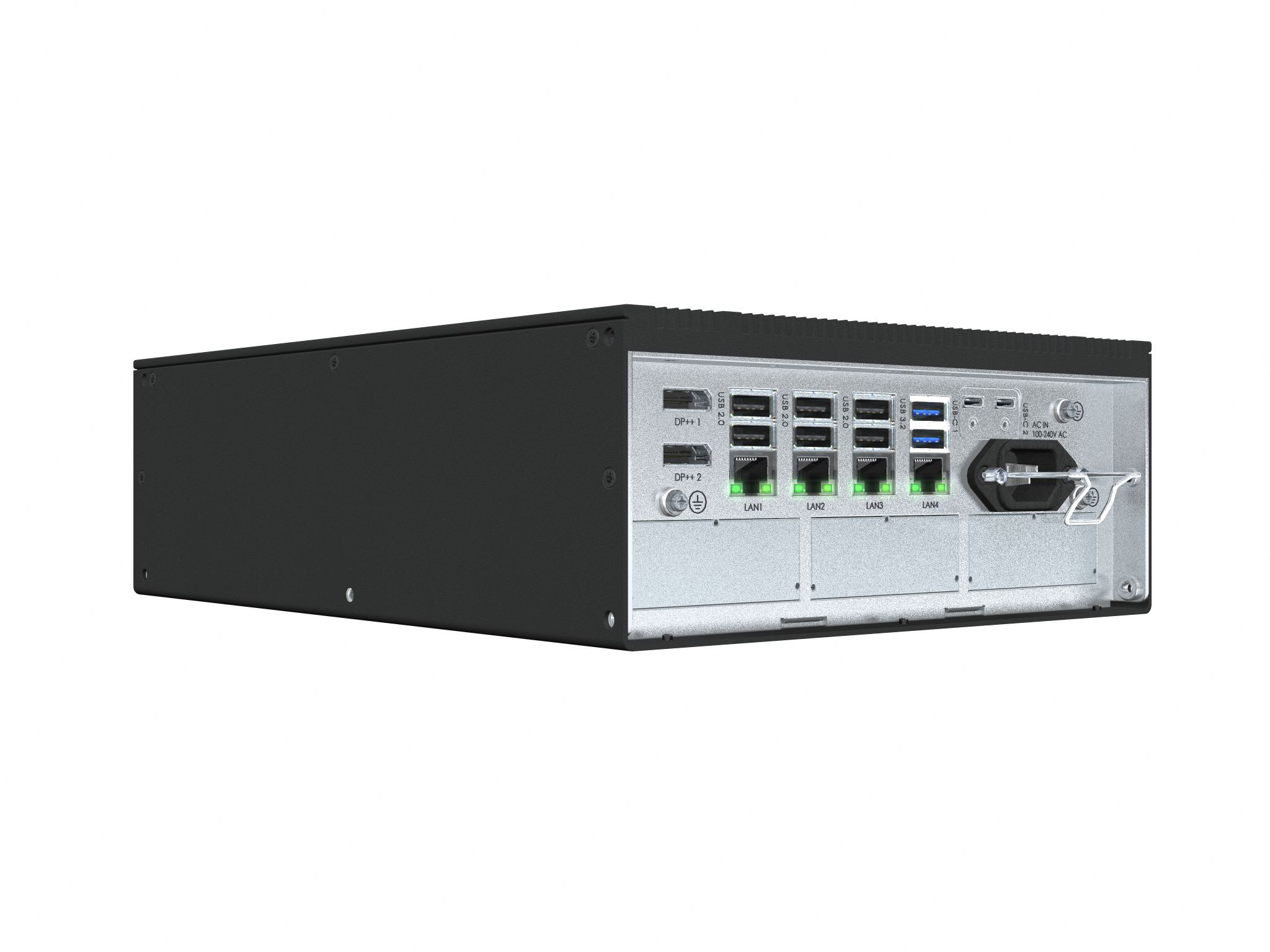

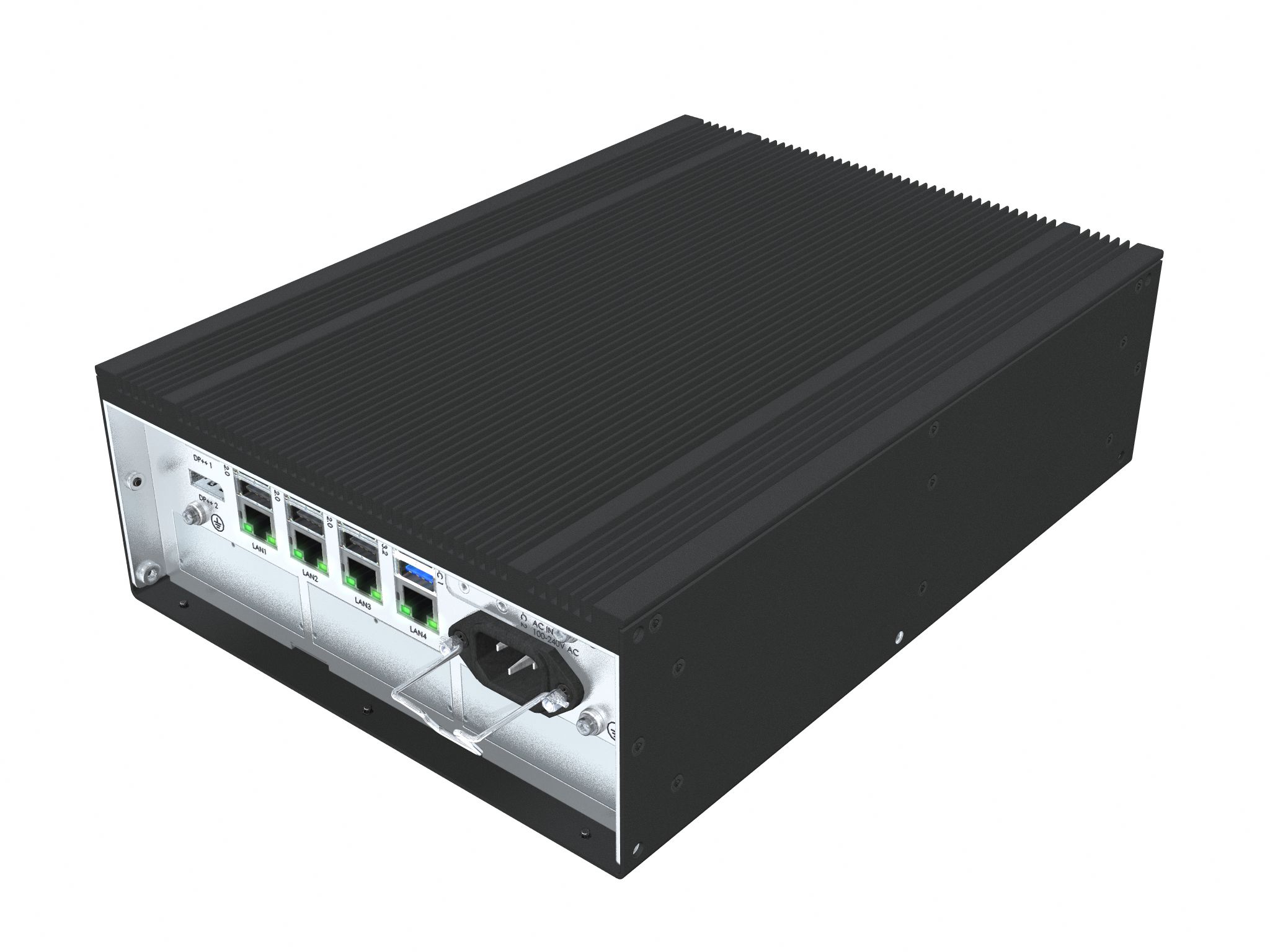

HATTELAND HTB40G, Intel Core i7-1265UE Compact Fanless Marine Computer
HATTELAND HTB40G, Intel Core i7-1265UE Compact Fanless Marine Computer is a compact marine computing solution designed for onboard applications that require dependable processing, flexible storage, and reliable connectivity. It features an Intel® Core™ i7-1265UE processor with 10 physical cores, 12 threads, and speeds up to 4.7GHz at 15W, providing a strong platform for marine monitoring, control, automation, and information systems.
The HTB40G supports DDR5-4800 memory in dual-channel configuration with two SO-DIMM slots and up to 64GB RAM. Storage options include a 2.5" SSD and an M.2 SATA/NVMe SSD, providing flexibility for different marine computing and data-handling requirements. Its compact form factor helps integrate the system into installations where available space is limited while maintaining the hardware needed for onboard computing tasks.

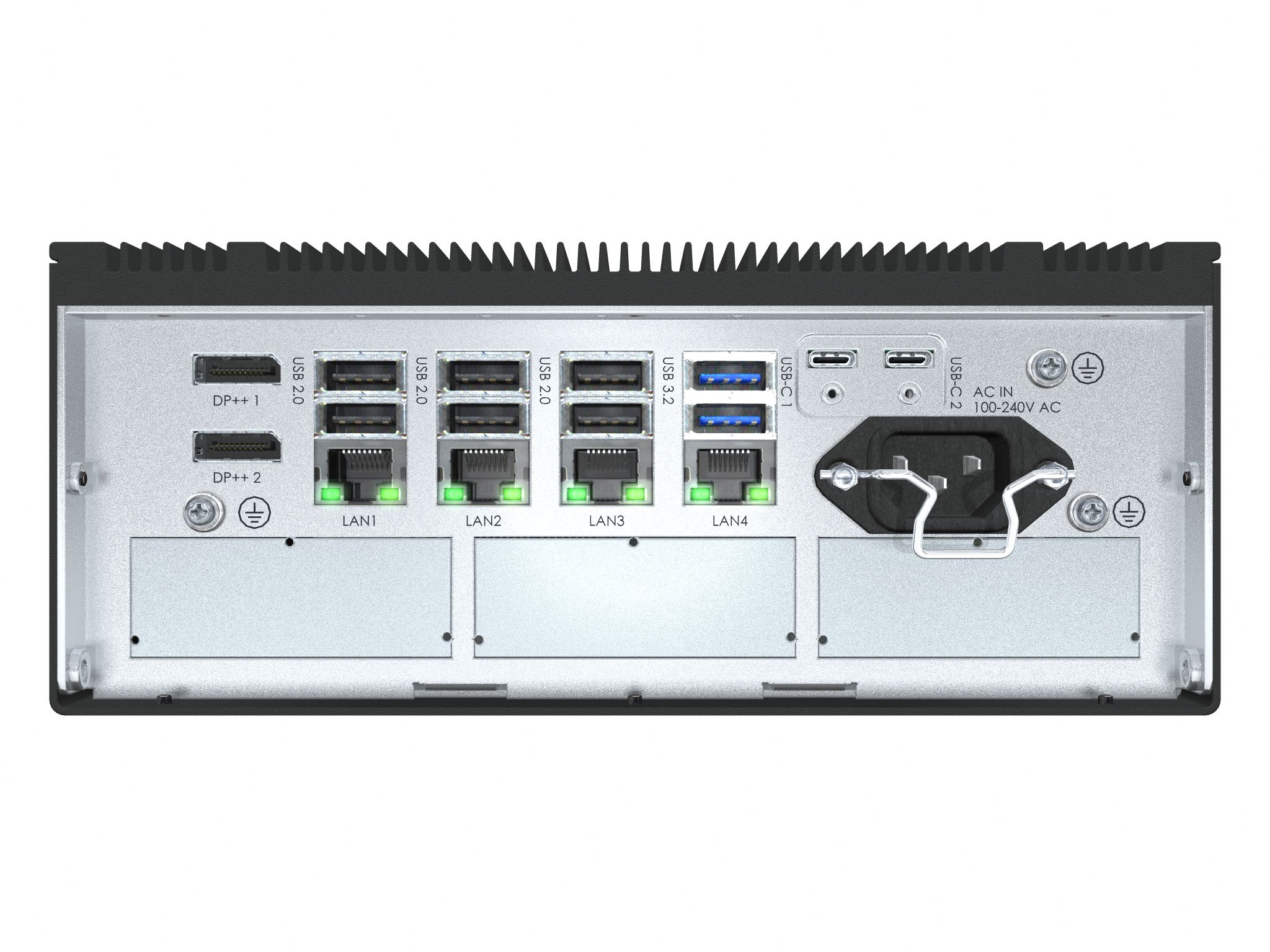

For graphics and display connectivity, the computer supports Intel® Iris® Xe Graphics and provides two DP++ 1.4a connectors along with two USB-C connectors. DisplayPort output supports resolutions up to 7680 x 4320 at 60Hz, making the system suitable for applications requiring high-resolution display output. Multiple USB ports also provide convenient connectivity for marine peripherals and equipment.
The HATTELAND HTB40G provides up to four Gigabit Ethernet connections using Realtek and Intel® LAN controllers, with teaming support. Optional isolated RS-232 and RS-422/485 NMEA serial interfaces can be configured for communication with marine equipment. Optional digital I/O modules also provide isolated digital inputs and outputs, supporting integration with marine automation and control systems.
Designed for demanding onboard environments, the fanless marine computer operates from -15.0°C to 55.0°C with humidity up to 95%, while storage temperatures range from -20.0°C to 60.0°C. The system measures 220.00 x 89.00 x 300.00 mm and weighs 3.7kg, making it suitable for compact marine installations. ACPI power management, TPM2.0, temperature and voltage monitoring, watchdog functionality, and automatic throttling control further support dependable operation in marine computing applications.
Key features
• Intel® Core™ i7-1265UE 10-core, 12-thread processor
• DDR5-4800 dual-channel memory support up to 64GB
• 2.5" SSD and M.2 SATA/NVMe storage options
• Intel® Iris® Xe Graphics with DP++ 1.4a and USB-C connectivity
• Supports up to 7680 x 4320 @ 60Hz display resolution
• Up to four Gigabit Ethernet ports with teaming support
• Optional isolated serial and digital I/O interfaces
• Compact fanless design for marine computing applications
Specifications:
1 x 2.5" SSD:
240GB (599TBW),480GB (945TBW),960GB (1750TBW), 1.9TB (8.8PBW).
1 x SSD m.2 SATA/NVMe:
240GB (599TBW),480GB (945TBW). |
| 1 x Intel® Core™ i7-1265UE (10 physical core / 12 thread), 3.5GHz / 4.7GHz @15W |
2 x SO-DIMM SLOT DDR5-4800, Dual Channel, Max 2x32GB
2 x 8GB (Standard), 2 x 16GB, 2 x 32GB (Max).
1 x 8GB RAM*
* requires system to be populated with 2x memory modules. (dual channel) |
Graphics: Intel® Iris® Xe Graphics eligible
Connectors: 2 x DP++ 1.4a + 2 x USB-C |
| DP = 7680 x 4320 @ 60Hz Max |
| ACPI support |
| None |
| None |
| None |
| None |
Ethernet #1: 1 x 10/100/1000Mbps, Realtek RTL8119I Gigabit LAN, 1 x RJ-45, Teaming
Ethernet #2: 1 x 10/100/1000Mbps, Realtek RTL8119I Gigabit LAN, 1 x RJ-45, Teaming
Ethernet #3: 1 x 10/100/1000Mbps, Intel® i226IT Gigabit LAN, 1 x RJ-45, Teaming
Ethernet #4: 1 x 10/100/1000Mbps, Intel® i219V LAN, 1 x RJ-45, Teaming |
6 x USB2.0 Type A (<5m) + 2 x USB3.2 Type A (<3m)
For signal output: 2 x USB-C |
| None |
| None or via Factory Option 1 x VSD203134-1 (2W Amplified Audio out via DB9F) |
| None |
ACPI S3/S4 - TPM2.0, Temperatures, voltages, Battery load status Alarm&cooling fan status. Auto throttling control if CPU overheats
RTC: > 0.5s/day* (requires calibration)
Watchdog Timer: 256 Segments, 0, 1, 2...255 sec/min
Battery: Normal operational conditions: life time >5 year, worst case conditions(@70C, 24/7): life time >2 year |
None or options:
PCA100297-1 (4 x Digital Input/Output isolated) module
HT 00273 OPT-A1/B1: 4 x Digital IN/OUT isolated, USB ext. module |
W:220.00 [8.66"] x H:89.00 [3.50"] x D:300.00 [11.81"] mm [inch]
3.7kg / 8.1lbs |
L:405.00 [15.94"] x W:184.00 [7.24"] x H:373.00 [14.69"] mm [inch]
5.0 kg / 11.0lbs |

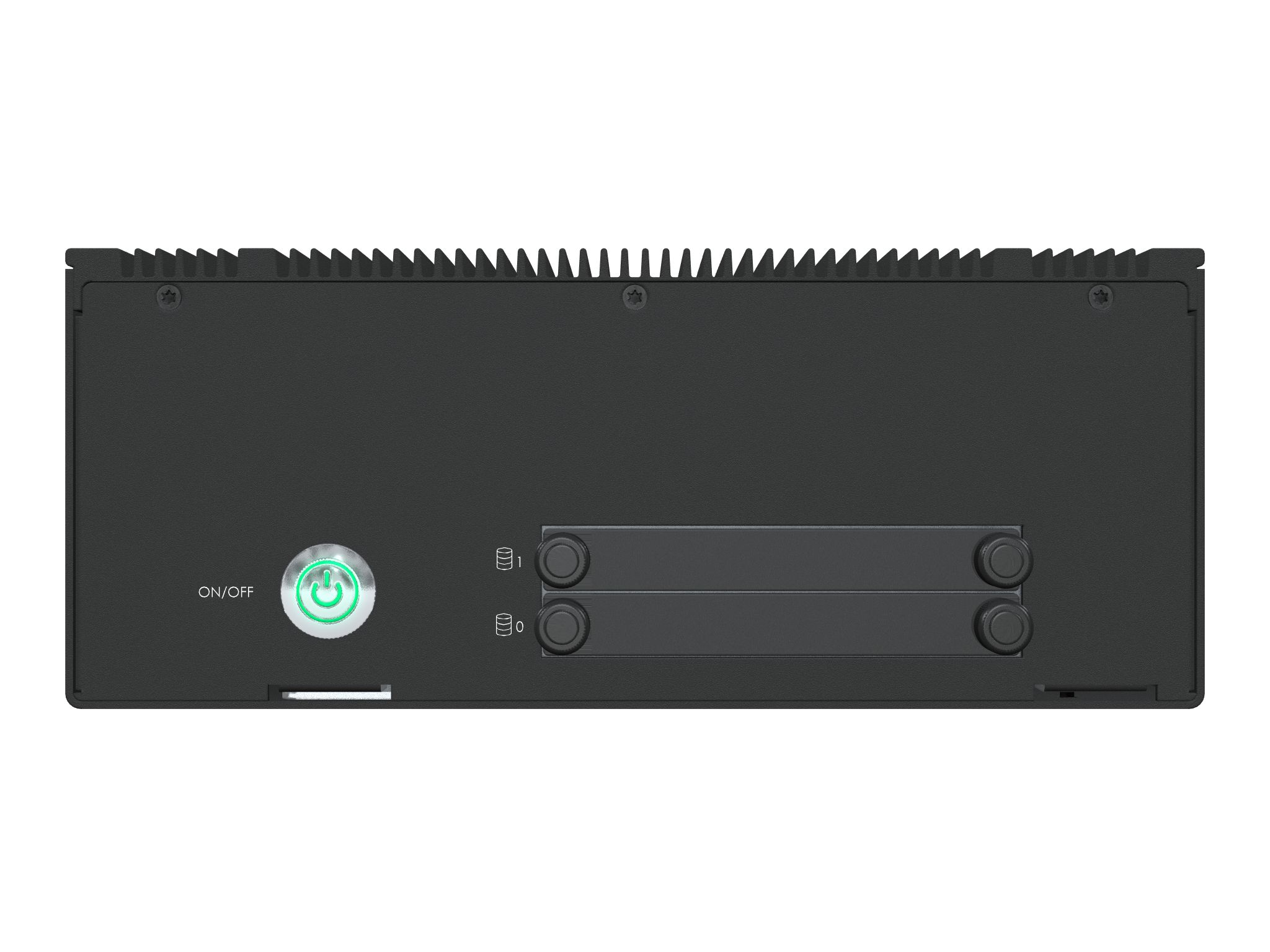

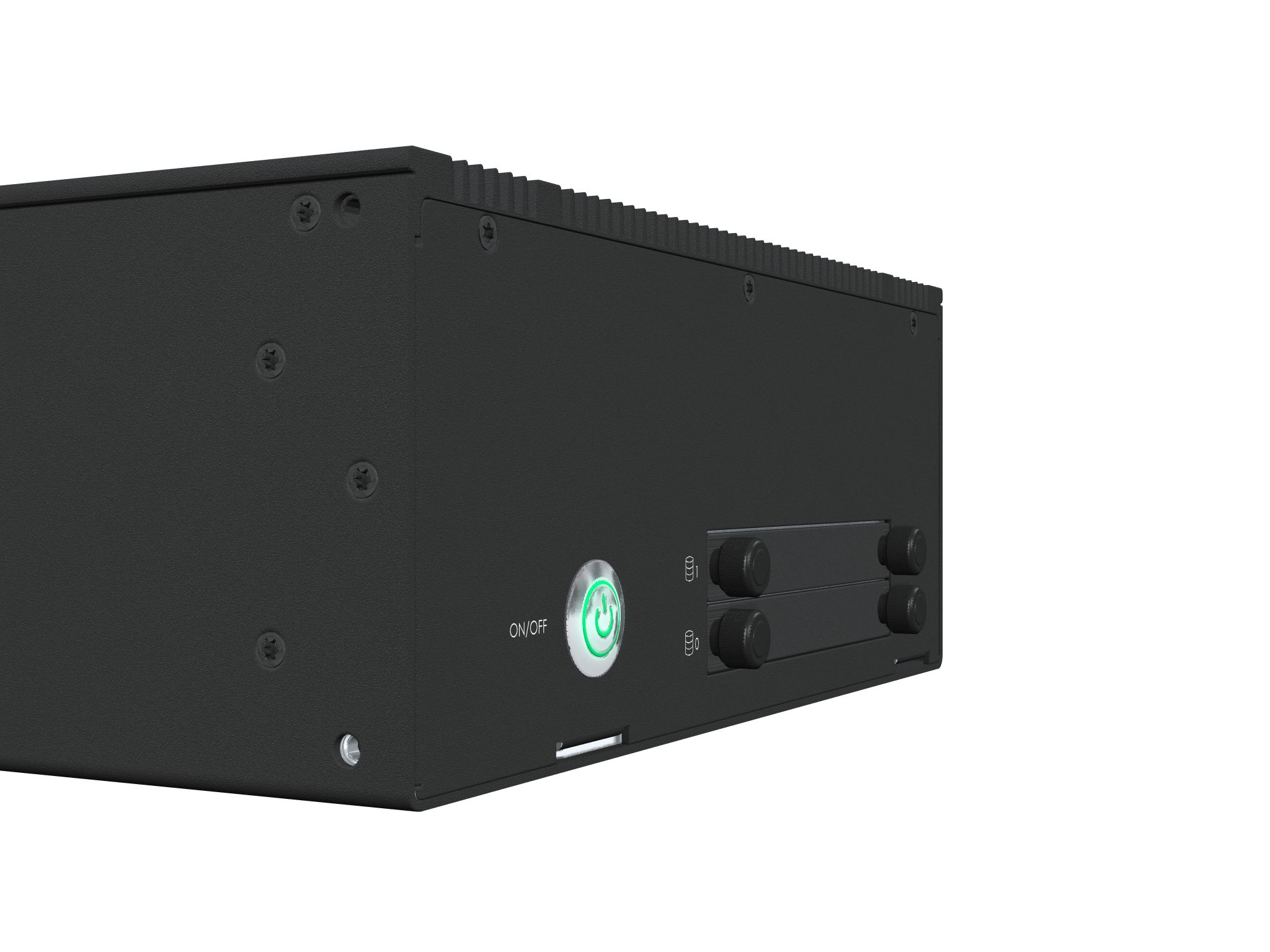

| Power/Power LED Combined Function |
| See factory options |
| -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95% |
| -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95% |
| Standard: 30.00 [11.81"] - Steering: 20.00 [7.87"] cm [inch] |
