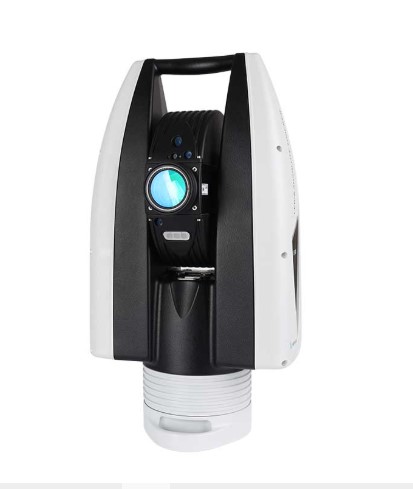

Hexagon Leica Absolute Tracker ATS800 Laser Tracker
When measuring large parts or complete assemblies, traditional measurement methods such as tape measures, theodolites, or manual inspection can be time-consuming and less suitable for high-precision applications. Inaccurate measurements can lead to rework, material waste, and production delays. The Hexagon Leica Absolute Tracker ATS800 is designed to provide fast, high-accuracy 3D measurements, helping manufacturers improve productivity and maintain tight quality tolerances.
The Hexagon Leica Absolute Tracker ATS800 is a portable laser tracker built for aerospace, automotive, energy, and heavy-industry applications. It delivers precise 3D measurement and inspection capabilities across large working volumes, tracking targets at distances from 0.6 m to 40 m. With a measurement rate of up to 2000 Hz, a 12 MP overview camera, Cat6 Ethernet connectivity, and IEEE 802.11n WLAN support, the ATS800 provides reliable and efficient measurement performance for demanding industrial environments.
Key Features
- 2000 Hz measurement rate for rapid data acquisition.
- 3D measurement range from 0.6 m to 40 m.
- Class 1 laser for safe operation.
- Integrated 12 MP overview camera for target acquisition.
- Cat6 Ethernet and IEEE 802.11n WLAN connectivity.
- Swappable lithium-ion battery with up to 6 hours typical runtime.
- Angular performance (Etwo-face, MPE): ±15 μm + 6 μm/m.
- Absolute Distance Meter (eADM): ±10 μm + 4 μm/m.
- Inclination sensor accuracy: ±1.0 arcsec.
- IP54-rated protection against dust and water ingress.
Specifications
| General Information |
|
| Tracker Size |
477 x 258 x 238 mm |
| Tracker Weight |
14.2 kg |
| Controller Size |
249 x 148 x 59 mm |
| Controller Weight |
1.65 kg |
| 3D Measurement Range |
0.6 to 40 m |
| Measurement Rate |
2000 Hz |
| Laser Class |
Class 1 |
| Overview Camera |
12 MP | 10-degree FOV |
| Power Lock Range |
40m |
| Environmental |
|
| Operating Temperature |
0°C to +40°C |
| Relative Humidity |
Max. 95% non-condensing |
| Operating Elevation |
-700 m to +5500 m |
| Ingress Protection |
IP54 |
| Interface |
|
| Wired Connectivity |
Cat6 Ethernet |
| Wireless Connectivity |
WLAN (IEEE 802.11n) |
| Power Management |
|
| Battery Type |
Lithium-ion, swappable |
| Typical Battery Runtime |
6 hours |
| Power Supply |
AC mains power supply |
| Accuracy |
|
| Angular Performance (Etwo-face, MPE) |
±15 μm + 6 μm/m |
| Absolute Distance Meter (eADM) |
±10 μm + 4 μm/m |
| Length Measurement (Edistance, MPE) |
±21 μm + 8.5 μm/m |
| Absolute Accuracy |
±21 μm + 8.5 μm/m |
| Range Noise |
< 40 μm |
| Inclination Sensor Accuracy |
±1.0 arcsec |
| Orient to Gravity UZ |
±15 μm + 8 μm/m |
