Product Code: CCEL-132
MPN #: 311325010

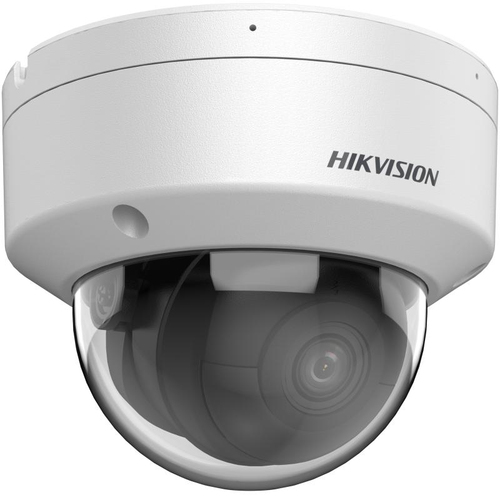

Imagine a night where you can see every movement around your home, even in total darkness. The Hikvision DS-2CD2186G2H-ISU 2.8mm Outdoor IP Security Camera Wired Multi 130dB gives you that clear view. It is built for outdoor surveillance and works with wired networks. If you worry about blind spots, false alarms, or poor image quality, this camera solves those issues so you feel safe and in control.
Many users struggle with cameras that cannot handle bright sunlight and deep shadows at the same time. That problem makes it hard to trust what you see on the screen. This camera uses a 130 dB wide dynamic range and AcuSense AI to separate people and vehicles from background noise. The result is a reliable alarm system that only alerts you when something truly matters, saving you time and worry.
You can mount this camera on a house wall, a warehouse ceiling, or a parking lot pole. It works well for home security, small business monitoring, and outdoor office grounds. The built-in microphone lets you hear unusual sounds, while the IR LEDs give clear video up to 30 m at night. It also supports multiple languages, so it fits international installations.
| Performance | |
| Dynamic range | 130 dB |
| Languages support | Multi |
| Number of languages | 33 |
| Alarm input/output | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Protection features | Dust resistant, Water resistant |
| Housing material | Aluminium |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Bullet |
| Camera | |
| Number of Privacy masking areas | 4 |
| Camera shutter speed | 1/3 - 1/100000 s |
| Pan range | 0 - 355° |
| Tilt angle range | 0 - 75° |
| Lens viewing angle, diagonal | 128.2° |
| Lens viewing angle, vertical | 54.8° |
| Lens viewing angle, horizontal | 105.1° |
| Angle of rotation | 355° |
| Minimum illumination | 0 lx |
| Image sensor | |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
| Fixed focal length | 2.8 mm |
| Identify distance | 8 m |
| Maximum aperture number | 1 |
| Recognize distance | 17 m |
| Observe distance | 35 m |
| Detect distance | 89 m |
| Number of lenses | 1 |
| Night vision | |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 30 m |
| Night vision | Yes |
| Video | |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 32 Kbps - 16 Mbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Noise reduction technology | 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800, 3840 x 2160 |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Total megapixels | 8 MP |
| Maximum resolution | 3840 x 2160 pixels |
| Audio | |
| Bit rate range | 8 - 320 Kbit/s |
| Sample rates | 8 - 48 kHz |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Audio formats supported | AAC-LC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, MP3, PCM |
| Audio output channels | 1.0 channels |
| Audio input channels | 1.0 channels |
| Network | |
| Client interoperability | iVMS-4200, Hik-Connect, Hik-Central |
| Live view | Yes |
| Number of simultaneous live view channels | 6 channels |
| Quality of Service (QoS) support | Yes |
| Number of users | 32 user(s) |
| User access level | Administrator, Operator, User |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
| Maximum memory card size | 512 GB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
| Terminal block port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Active tampering alarm | Yes |
| Audit log | Yes |
| Automatic Network Replenishment (ANR) | Yes |
| Digest authentication | Yes |
| Digital watermark | Yes |
| Flash log | Yes |
| HTTPS encryption | Yes |
| Heartbeat | Yes |
| Human and vehicle targets classification | Yes |
| IP address filtering | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Password reset via email | Yes |
| Pixel counter | Yes |
| Privacy protection | Yes |
| Security algorithms | HTTPS, TLS |
| Video motion detection | Yes |
| Password protection | Yes |
| Alarm output channels | 1 |
| Alarm input channels | 1 |
| Management features | |
| Behavior analysis | Intrusion detection, Line crossing detection |
| Reset button | Yes |
| Web-based management | Yes |
| Power | |
| DC output current | 0.66 A |
| DC output voltage | 12 |
| Power consumption (Power over Ethernet (PoE)) | 9.5 W |
| Power consumption (max) | 8 W |
| Power source type | DC, PoE |
| Operational conditions | |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | -30 - 60 °C |
| Weight & dimensions | |
| Weight | 525 g |
| Diameter | 12.2 cm |
| Height | 97.6 mm |
| Packaging data | |
| Package weight | 750 g |
| Package height | 117 mm |
| Package depth | 120 mm |
| Package width | 234 mm |
| Supplier features | |
| Manufacturer | Hikvision |
| Sustainability | |
| Compliance certificates | CB, CE, Low Voltage Directive (LVD), RoHS, UL |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Browser supported | IE 10, IE 11, Chrome 57.0+, Firefox 52.0+ |
| Maximum resolution | 3840 x 2160 pixels |
| Technical details | |
| Lens mount interface | M12 |
