Dispatch Time: Next Working Day
Product Code: CCEL-224
MPN #: 311316465

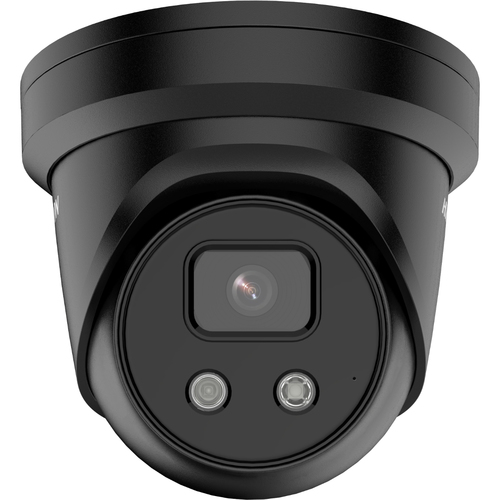

Imagine a night where you can see every corner of your home or shop, even in total darkness. The Hikvision DS-2CD2346G2-IU(2.8mm)(C)(BLACK) Indoor/Outdoor Wired IP Security Camera gives you that clear view. It records video, sends alerts, and works both inside and outside. If you worry about thieves, vandals, or simply want to watch who comes to the door, this camera solves that problem.
Many people install cameras that give blurry images or stop working when it rains. Bad footage means missed alarms and wasted money. This Hikvision model fixes those issues. It has a weather-proof IP67 rating, so rain, dust, and extreme temperatures do not stop it. The built-in AcuSense technology learns to tell the difference between people and cars, so you get only the alerts that matter.
You can mount this camera on a ceiling or a wall at a store, office, or home. It works well at a front door, a parking lot, a warehouse aisle, or a backyard. The 360 pan and 75 tilt let you cover a large area without extra lenses. Because it supports PoE, you only need one cable for power and data, making installation quick and tidy.
| Performance | |
| Certification | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Languages support | Multi |
| Number of languages | 33 |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
| International Protection (IP) code | IP67 |
| Protection features | Dust resistant, Water resistant |
| Product colour | Black |
| Mounting type | Ceiling/wall |
| Form factor | Turret |
| Camera | |
| Camera shutter speed | 1/3 - 1/100000 s |
| Pan range | 0 - 360° |
| Tilt angle range | 0 - 75° |
| Lens viewing angle, diagonal | 123° |
| Lens viewing angle, vertical | 55° |
| Lens viewing angle, horizontal | 103° |
| Angle of rotation | 360° |
| Minimum illumination | 0 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
| Detect distance (wide) | 60 m |
| Fixed focal length | 2.8 mm |
| Identify distance (wide) | 6 m |
| Observe distance (wide) | 23.8 m |
| Recognize distance (wide) | 12 m |
| Maximum aperture number | 1.4 |
| Number of lenses | 1 |
| Night vision | |
| LED type | IR |
| Night vision distance | 30 m |
| Night vision | Yes |
| Video | |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 32 Kbps - 8 Mbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Gain control type | Auto |
| Noise reduction technology | 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520 |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Total megapixels | 4 MP |
| Maximum resolution | 2688 x 1520 pixels |
| Audio | |
| Sample rates | 8 - 48 kHz |
| Voice codecs | AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Network | |
| Quality of Service (QoS) support | Yes |
| Number of users | 32 user(s) |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Networking standards | IEEE 802.3af |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
| Maximum memory card size | 256 GB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Active tampering alarm | Yes |
| Alert notification type | |
| Anti-flicker | Yes |
| Heartbeat | Yes |
| IP address filtering | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection, Scene change |
| Mirror | Yes |
| Security algorithms | TLS |
| Video motion detection | Yes |
| Password protection | Yes |
| Management features | |
| Behavior analysis | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Reset button | Yes |
| Web browser | Yes |
| Power | |
| DC output current | 0.48 A |
| DC output voltage | 12 |
| Power consumption (Power over Ethernet (PoE)) | 6.8 W |
| Power consumption (max) | 5.8 W |
| Power source type | DC, PoE |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | -30 - 60 °C |
| Weight & dimensions | |
| Weight | 730 g |
| Length | 126.3 mm |
| Diameter | 13.8 cm |
| Packaging data | |
| Package weight | 1.03 kg |
| Package height | 150 mm |
| Package depth | 170 mm |
| Package width | 170 mm |
| Supplier features | |
| Manufacturer | Hikvision |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Maximum resolution | 2688 x 1520 pixels |
