Product Code: CCEL-111
MPN #: 311316219

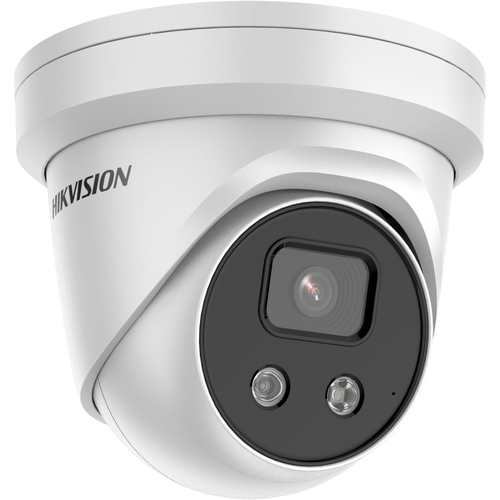

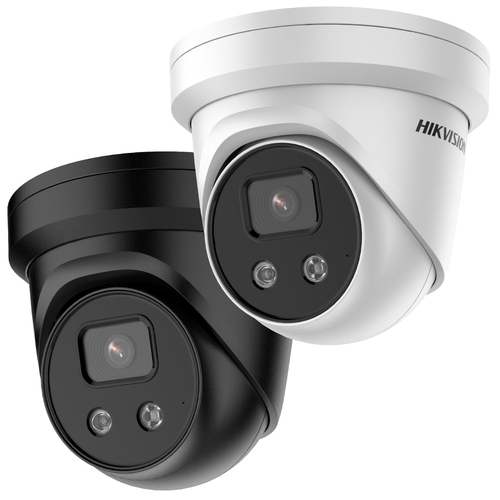

Imagine never worrying if a door is left open or a hallway is dark. The Hikvision DS-2CD2366G2-IU 2.8mm Indoor Outdoor IP Security Camera Wired Ceiling gives you clear, reliable video wherever you need it. It is made for homes, offices, and small stores that need a watchful eye day and night. If you have missed a break-in because your old camera was blurry or stopped working in rain, this camera solves that problem.
You often worry about blind spots, low light, or weather damage. Those gaps let trouble slip by and make you feel unsafe. This camera removes the gaps with a 128 wide view, true night vision up to 30 m, and an IP67 rating that resists dust and water. It sends sharp 6 MP video over a wired or PoE connection, so you get instant, reliable footage without the hassle of batteries.
Place it in a home entryway to see who arrives before opening the door. Mount it in a retail store aisle to watch customers and prevent shoplifting. Use it in a warehouse ceiling to monitor large areas and catch any unauthorized movement. It also works well in outdoor patios, parking lots, or school corridors where weather protection and night vision are essential.
| Performance | |
| Certification | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Languages support | Multi |
| Number of languages | 33 |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
| International Protection (IP) code | IP67 |
| Protection features | Dust resistant, Water resistant |
| Housing material | Metal |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Turret |
| Camera | |
| Pan range | 0 - 360° |
| Tilt angle range | 0 - 75° |
| Lens viewing angle, diagonal | 128.6° |
| Lens viewing angle, vertical | 53.4° |
| Lens viewing angle, horizontal | 105.1° |
| Angle of rotation | 360° |
| Minimum illumination | 0 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.4 mm (1 / 2.4") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
| Detect distance (wide) | 78.6 m |
| Fixed focal length | 2.8 mm |
| Identify distance (wide) | 7.9 m |
| Observe distance (wide) | 31.2 m |
| Recognize distance (wide) | 15.7 m |
| Maximum aperture number | 1.6 |
| Number of lenses | 1 |
| Night vision | |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 30 m |
| Night vision | Yes |
| Video | |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 32 Kbps - 16 Mbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Gain control type | Auto |
| Noise reduction technology | 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800 |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Total megapixels | 6 MP |
| Maximum resolution | 3200 x 1800 pixels |
| Audio | |
| Sample rates | 8 - 48 kHz |
| Voice codecs | AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Network | |
| Quality of Service (QoS) support | Yes |
| Number of users | 32 user(s) |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Networking standards | IEEE 802.3af |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
| Maximum memory card size | 256 GB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Active tampering alarm | Yes |
| Anti-flicker | Yes |
| HTTPS encryption | Yes |
| Heartbeat | Yes |
| IP address filtering | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection, Scene change |
| Mirror | Yes |
| Security algorithms | TLS |
| Video motion detection | Yes |
| Password protection | Yes |
| Management features | |
| Behavior analysis | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Reset button | Yes |
| Web browser | Yes |
| Power | |
| DC output current | 0.45 A |
| DC output voltage | 12 |
| Power consumption (Power over Ethernet (PoE)) | 6.5 W |
| Power consumption (max) | 5.4 W |
| Power source type | DC, PoE |
| Operational conditions | |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | -30 - 60 °C |
| Weight & dimensions | |
| Weight | 740 g |
| Length | 111.4 mm |
| Diameter | 13.8 cm |
| Packaging data | |
| Package weight | 1.07 kg |
| Package height | 150 mm |
| Package depth | 170 mm |
| Package width | 170 mm |
| Supplier features | |
| Manufacturer | Hikvision |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Maximum resolution | 3200 x 1800 pixels |
