Imagine a night when you can see every corner of your property, even in total darkness, without worrying about cables or weak signals. The Hikvision DS-2CD2543G2-IWS Outdoor Wired/Wireless Dome IP Camera Ceiling/Wall gives you that peace of mind. It is a compact dome camera that works on the wall or ceiling, inside or outside. If you have struggled with blind spots, broken wires, or low-quality video, this camera solves those problems with clear, reliable footage.

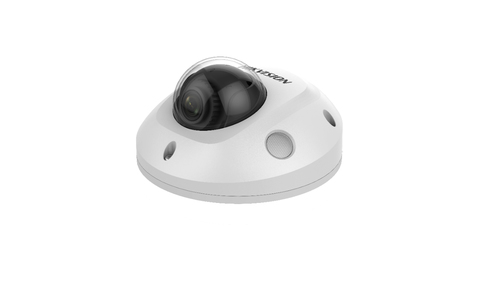

Hikvision DS-2CD2543G2-IWS Outdoor Wired/Wireless Dome IP Camera Ceiling/Wall
Many users cannot protect their homes or businesses because traditional cameras need a fixed wired connection and often fail in rain or dust. When a camera stops working, security gaps appear and loss of evidence follows. This Hikvision model removes the need for permanent cabling, offers both wired and Wi-Fi options, and is built to survive rain, dust and vandalism with an IP67 rating. The result is a camera that stays online, records clear video, and lets you watch live from any device.
Usages of Hikvision
You can mount this dome on a storefront to watch customers and deter theft. It works on a warehouse roof to monitor large outdoor areas. Install it on a home ceiling to keep an eye on kids and pets. The wireless mode lets you add it to a rental property without drilling new cables. It also fits well in parking lots, schools, and small office entrances where a discreet, weather-proof camera is needed.
Benefits
- Clear 4 MP video lets you read faces and license plates.
- Night vision up to 30 m shows detail even in total darkness.
- IP67 housing protects against rain, dust and vandalism.
- Both wired and Wi-Fi connections give flexible installation.
- Built-in motion detection sends alerts so you act fast.
Key Features
- 4 MP CMOS sensor with 2688 1520 resolution.
- Wide 123.8 diagonal view covers large areas.
- WDR and HLC balance bright and dark spots in one frame.
- IR cut filter switches automatically for day/night mode.
- 30 m infrared range provides clear night images.
- PoE power (7 W) or 12 V DC for flexible power options.
- MicroSD slot supports up to 256 GB for local storage.
- Face detection and intrusion alerts improve security intelligence.
- 30 fps video smoothness captures fast movement.
- Supports H.264, H.265 and M-JPEG compression to save bandwidth.
Specifications
| Performance |
| Number of languages |
33 |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired & Wireless |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
| IK code |
IK08 |
| International Protection (IP) code |
IP67 |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Camera shutter speed |
1/3 - 1/100000 s |
| Pan range |
-30 - 30° |
| Tilt angle range |
0 - 75° |
| Lens viewing angle, diagonal |
123.8° |
| Lens viewing angle, vertical |
55.9° |
| Lens viewing angle, horizontal |
104.3° |
| Angle of rotation |
360° |
| Minimum illumination |
0 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 3 mm (1 / 3") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Fixed focal length |
2.8 mm |
| Identify distance |
6 m |
| Maximum aperture number |
1.6 |
| Recognize distance |
13 m |
| Observe distance |
25 m |
| Detect distance |
64 m |
| Number of lenses |
1 |
| Night vision |
| Infra-red wavelength |
850 nm |
| LED type |
IR |
| Night vision distance |
30 m |
| Night vision |
Yes |
| Video |
| Back Light Compensation (BLC) |
Yes |
| Bit rate |
32 Kbps - 8 Mbps |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) |
Yes |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Region of Interest (ROI) encoding |
Yes |
| Gain control type |
Auto |
| Noise reduction technology |
3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Video compression formats |
H.264, H.264+, H.265, H.265+, M-JPEG |
| Total megapixels |
4 MP |
| Maximum resolution |
2688 x 1520 pixels |
| Audio |
| Voice codecs |
G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2 |
| Sample rate |
48 kHz |
| Audio formats supported |
AAC, MP3 |
| Audio output channels |
1.0 channels |
| Audio input channels |
1.0 channels |
| Network |
| Quality of Service (QoS) support |
Yes |
| Number of users |
32 user(s) |
| Wi-Fi data rate (max) |
300 Mbit/s |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Supported network protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Storage |
| Maximum memory card size |
256 GB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Intelligent Video Surveillance (IVS) system features |
Face detection |
| Video motion detection |
Yes |
| Management features |
| Behavior analysis |
Intrusion detection, Line crossing detection |
| Reset button |
Yes |
| Web-based management |
Yes |
| Power |
| DC output voltage |
12 |
| Power consumption (Power over Ethernet (PoE)) |
7 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-30 - 60 °C |
| Operating temperature (T-T) |
-30 - 60 °C |
| Weight & dimensions |
| Weight |
380 g |
| Diameter |
11 cm |
| Height |
57.4 mm |
| Packaging data |
| Package weight |
615 g |
| Package height |
108 mm |
| Package depth |
134 mm |
| Package width |
134 mm |
| Supplier features |
| Manufacturer |
Hikvision |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
2688 x 1520 pixels |
