You need a camera that works in bright sun, dark night, rain or dust. Many cheap cameras miss details, give false alarms, or stop working when the weather gets rough. When you cannot trust a camera, you feel unsafe and waste time checking footage. The Hikvision DS-2CD2546G2-IS Outdoor IP Security Dome Camera Wired Ceiling Wall IR gives you clear video, reliable motion alerts and night vision, so you can protect your home or business without worry.

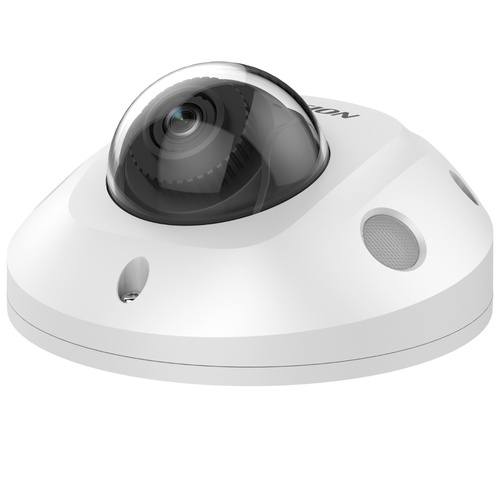

Hikvision DS-2CD2546G2-IS Outdoor IP Security Dome Camera Wired Ceiling Wall IR with Hikvision
Keep your property safe day and night with this tough dome camera. It is an IP security camera that mounts on a ceiling or wall and connects by wired PoE. It records in 4 MP, switches to infrared up to 30 m, and uses Hikvision AcuSense to tell the difference between people and vehicles. If you have missed alarms or blurry night images before, this camera solves those problems with sharp color video and smart alerts.
Usages
Install it at the front door of a house to see who arrives after dark. Use it in a retail store to watch the sales floor and catch shoplifting. Place it in a parking lot to monitor cars and detect illegal parking. It works in warehouses, schools and office lobbies where you need clear view of people moving in and out.
Benefits
- Clear video in any light saves you from missing important events.
- Smart human-vehicle detection reduces false alarms and saves time.
- Weather-proof design (IP67) keeps the camera working in rain or dust.
- Easy wired PoE installation means no extra power adapters.
- Built-in microphone lets you hear sounds as well as see images.
Key Features
- 4 MP CMOS sensor with 122.5 wide view.
- Infrared LEDs provide clear night vision up to 30 m.
- Hikvision AcuSense AI separates people from vehicles.
- WDR and BLC handle strong backlight and shadows.
- IP67 rating protects against water and dust.
- PoE power (7 W) simplifies wiring and installation.
- MicroSD slot supports up to 256 GB for local storage.
- 30 fps video with H.265 compression saves bandwidth.
- Built-in alarm I/O for external sensors.
- Remote access via HTTPS and web interface.
Specifications
| Performance |
| Number of languages |
33 |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
| IK code |
IK08 |
| International Protection (IP) code |
IP67 |
| Housing material |
Aluminium |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Camera shutter speed |
1/3 - 1/100000 s |
| Pan range |
-30 - 30° |
| Tilt angle range |
0 - 75° |
| Lens viewing angle, diagonal |
122.5° |
| Lens viewing angle, vertical |
55.2° |
| Lens viewing angle, horizontal |
102.7° |
| Angle of rotation |
360° |
| Minimum illumination |
0 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 3 mm (1 / 3") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Fixed focal length |
2.8 mm |
| Maximum aperture number |
1.4 |
| Number of lenses |
1 |
| Night vision |
| Infra-red wavelength |
850 nm |
| LED type |
IR |
| Night vision distance |
30 m |
| Night vision |
Yes |
| Video |
| Back Light Compensation (BLC) |
Yes |
| Bit rate |
32 Kbps - 8 Mbps |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) |
Yes |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
Yes |
| Region of Interest (ROI) encoding |
Yes |
| Noise reduction technology |
3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Video compression formats |
H.264, H.264+, H.265, H.265+, M-JPEG |
| Total megapixels |
4 MP |
| Maximum resolution |
2688 x 1520 pixels |
| Audio |
| Voice codecs |
G.711, G.722.1, G.726, MP2L2, PCM |
| Built-in microphone |
Yes |
| Sample rate |
48 kHz |
| Audio formats supported |
MP3 |
| Network |
| Quality of Service (QoS) support |
Yes |
| Number of users |
32 user(s) |
| Supported network protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1 (except for -W model), QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Networking standards |
IEEE 802.1x, IEEE 802.3af |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Maximum memory card size |
256 GB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Anti-flicker |
Yes |
| HTTPS encryption |
Yes |
| Heartbeat |
Yes |
| IP address filtering |
Yes |
| Intelligent Video Surveillance (IVS) system features |
Scene change |
| Mirror |
Yes |
| Video motion detection |
Yes |
| Password protection |
Yes |
| Management features |
| Behavior analysis |
Intrusion detection, Line crossing detection |
| Reset button |
Yes |
| Web-based management |
Yes |
| Power |
| DC output voltage |
12 |
| Power consumption (Power over Ethernet (PoE)) |
7 W |
| Power consumption (max) |
6 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-30 - 60 °C |
| Operating temperature (T-T) |
-30 - 60 °C |
| Weight & dimensions |
| Weight |
380 g |
| Diameter |
11 cm |
| Height |
57.4 mm |
| Packaging data |
| Package weight |
620 g |
| Package height |
108 mm |
| Package depth |
134 mm |
| Package width |
134 mm |
| Supplier features |
| Manufacturer |
Hikvision |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
2688 x 1520 pixels |
