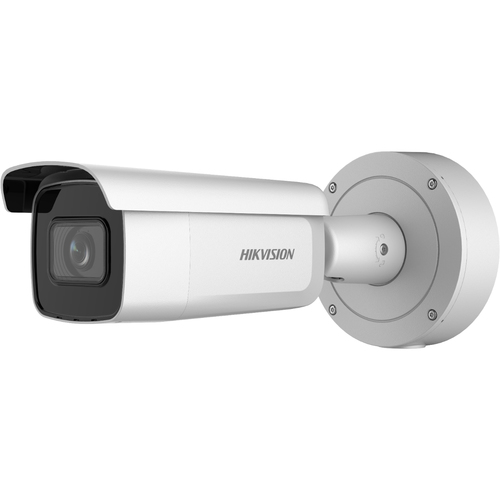

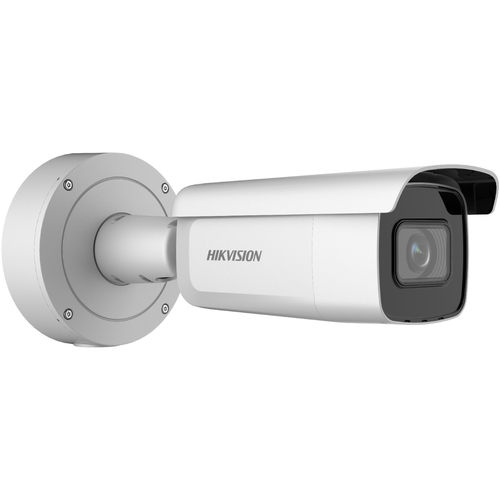

Hikvision DS-2CD2646G2-IZS Wired IP Security Camera Indoor/Outdoor Ceiling/Wall

UK Free Shipping UK Free Shipping over £249


Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: CCEL-332

MPN #: 311315192

Imagine a night where you can see every movement around your home or shop, even in total darkness, without false alarms. The Hikvision DS-2CD2646G2-IZS Wired IP Security Camera Indoor/Outdoor Multi Ceiling/Wall gives you that clear view. It is built for places that need reliable video, whether on a ceiling, a wall, inside a store or outside a building. If you have struggled with blurry footage, missed alerts, or cameras that cant survive rain, this camera solves those problems.



Hikvision DS-2CD2646G2-IZS Wired IP Security Camera Indoor/Outdoor Multi Ceiling/Wall

Many users worry about cameras that trigger alarms for every passing car or leaf. That creates panic and wastes time. The problem matters because you need to trust every alert to protect people and property. This camera uses AcuSense deep-learning to tell the difference between humans, vehicles and background motion. It sends an alarm only when a real threat is detected, giving you peace of mind and fewer false notifications.



Benefits
    • Human and vehicle detection reduces false alarms, saving you time.
    • IP66 rating keeps the camera safe from rain, dust and vandalism.
    • 4 MP sensor and 131 wide view capture clear details at long distance.
    • Night vision up to 60 m lets you monitor dark areas without extra lights.
    • PoE power simplifies installation with a single cable for data and electricity.



Usages

Install the camera on a ceiling in a retail store to watch aisles and entrances. Mount it on a wall outside a warehouse to monitor loading docks and parking lots. Use it in a school hallway to keep an eye on student traffic. It also works well for home security, watching front doors, backyards or garages. The flexible mounting lets you choose the angle that best fits each space.



Key Features
    • IP66, IK10 protection for harsh weather and vandal resistance.
    • AcuSense deep-learning for human and vehicle classification.
    • 4 MP CMOS sensor with 1/3" size for sharp images.
    • 2.8-12 mm varifocal lens, 108 horizontal view.
    • WDR and BLC handle bright and dark spots in the same scene.
    • IR LEDs provide clear night vision up to 60 m.
    • H.265+ compression reduces bandwidth and storage needs.
    • MicroSD slot supports up to 256 GB for local recording.
    • PoE (15 W) and DC 12 V power options.
    • Built-in alarm I/O and active tampering detection.
    • HTTPS, TLS and password protection keep video streams secure.
    • Supports up to 32 users and multiple network protocols.



Specifications
Performance
Certification FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Languages support Multi
Number of languages 33
Alarm input/output Yes
Day/night mode Yes
Infrared (IR) cut-off filter Yes
Wide Dynamic Range (WDR) Yes
Connectivity technology Wired
Placement supported Indoor & outdoor
Type IP security camera
Design
IK code IK10
International Protection (IP) code IP66
Protection features Dust resistant, Vandal proof, Water resistant
Product colour White
Mounting type Ceiling/wall
Form factor Bullet
Camera
Camera shutter speed 1/3 - 1/100000 s
Pan range 0 - 355°
Tilt angle range 0 - 90°
Lens viewing angle, diagonal 131°
Lens viewing angle, vertical 56°
Lens viewing angle, horizontal 108°
Angle of rotation 360°
Minimum illumination 0 lx
Camera tilt control Yes
Camera pan control Yes
Image sensor
Progressive scan Yes
Optical sensor size 25.4 / 3 mm (1 / 3")
Number of sensors 1
Sensor type CMOS
Lens system
Detect distance (tele) 190 m
Detect distance (wide) 64 m
Identify distance (tele) 19 m
Identify distance (wide) 6.4 m
Observe distance (tele) 75.4 m
Observe distance (wide) 25.4 m
Recognize distance (tele) 38 m
Recognize distance (wide) 12.8 m
Maximum aperture number 1.4
Focal length range 2.8 - 12 mm
Number of lenses 1
Night vision
LED type IR
Night vision distance 60 m
Night vision Yes
Video
Back Light Compensation (BLC) Yes
Bit rate 32 Kbps - 8 Mbps
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC) Yes
Image quality adjustment Brightness, Contrast, Saturation, Sharpness
Region of Interest (ROI) encoding Yes
Gain control type Auto
Noise reduction technology 3D noise reduction
Noise reduction Yes
Video streaming Yes
Frame rate 30 fps
Supported graphics resolutions 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Video compression formats H.264, H.264+, H.265, H.265+, M-JPEG
Total megapixels 4 MP
Maximum resolution 2688 x 1520 pixels
Audio
Sample rates 8 - 48 kHz
Voice codecs AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Signal-to-Noise Ratio (SNR) 52 dB
Audio output channels 1.0 channels
Audio input channels 1.0 channels
Network
Quality of Service (QoS) support Yes
Number of users 32 user(s)
Supported network protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
Networking standards IEEE 802.3af
Ethernet interface type Fast Ethernet
Bluetooth No
Wi-Fi No
Ethernet LAN Yes
Storage
Maximum memory card size 256 GB
Compatible memory cards MicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integrated Yes
Built-in HDD No
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Security
Active tampering alarm Yes
Alert notification type E-mail
Anti-flicker Yes
HTTPS encryption Yes
Heartbeat Yes
IP address filtering Yes
Intelligent Video Surveillance (IVS) system features Face detection, Scene change
Mirror Yes
Security algorithms TLS
Video motion detection Yes
Password protection Yes
Management features
Behavior analysis Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Reset button Yes
Web browser Yes
Power
DC output current 1.08 A
DC output voltage 12
Power consumption (Power over Ethernet (PoE)) 15 W
Power consumption (max) 13 W
Power source type DC, PoE
Operational conditions
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -30 - 60 °C
Operating temperature (T-T) -30 - 60 °C
Weight & dimensions
Weight 1.45 kg
Length 345.7 mm
Diameter 14.4 cm
Packaging data
Package weight 2.57 kg
Package height 180 mm
Package depth 190 mm
Package width 385 mm
Supplier features
Manufacturer Hikvision
Packaging content
Number of cameras 1
Other features
Maximum resolution 2688 x 1520 pixels
