Product Code: CCEL-107
MPN #: 311324115

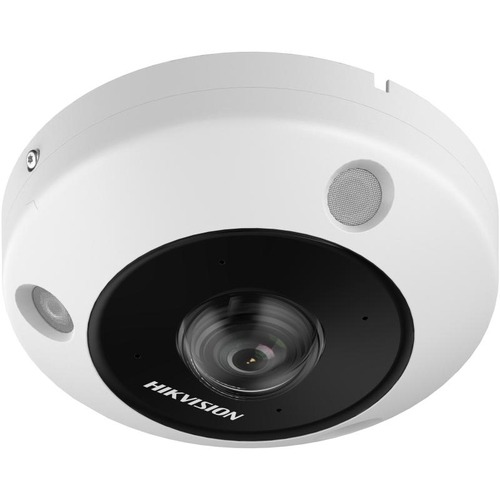

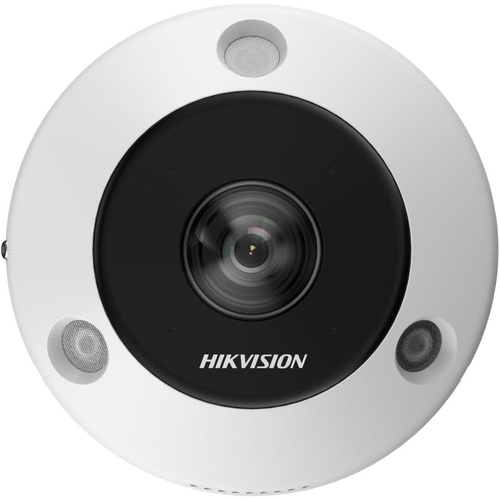

Imagine a night when a stranger tries to enter your home and you never see them. The Hikvision DS-2CD63C5G1-IVS 1.29mm Indoor Outdoor IP Security Camera Wired watches every corner, day or night, and sends you clear video instantly. If you worry about blind spots, low light, or missed alarms, this camera gives you the eyes you need to feel safe.
Many homes and businesses suffer from poor video quality that makes it hard to recognize faces or read license plates. Bad lighting, weather, and limited storage only add to the problem, leaving you unsure if an event was captured correctly. Hikvision solves this by delivering 12 MP ultra-high resolution, true-color night vision up to 15 m, and intelligent video analytics that flag people, motion, and scene changes. The result is a reliable, all-weather eye that reduces false alarms and lets you act fast.
You can mount this dome camera on a ceiling in a shop to watch customers and deter theft. It works on a factory floor where dust and rain are common, thanks to its IP67 rating. Install it at a front gate to capture clear license plates even after dark. Use it in a school hallway to count students and send alerts if a door is forced. The wired PoE connection makes power and data simple, so you can place it wherever you need constant surveillance.
| Performance | |
| Certification | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Languages support | Multi |
| Number of languages | 33 |
| Alarm input/output | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Housing material | Metal |
| Product colour | White |
| Mounting type | Ceiling |
| Form factor | Dome |
| Camera | |
| Camera shutter speed | 1 - 1/100000 s |
| Lens viewing angle, vertical | 180° |
| Lens viewing angle, horizontal | 180° |
| Minimum illumination | 0 lx |
| Image sensor | |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
| Fixed focal length | 1.29 mm |
| Identify distance | 2.8 m |
| Maximum aperture number | 2.2 |
| Recognize distance | 5.6 m |
| Observe distance | 11.1 m |
| Detect distance | 27.9 m |
| Number of lenses | 1 |
| Night vision | |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 15 m |
| Night vision | Yes |
| Video | |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 32 Kbps - 16 Mbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Gain control type | Auto |
| Noise reduction technology | 3D noise reduction |
| Noise reduction | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 320 x 240, 640 x 480 (VGA), 720 x 720, 1600 x 1280, 2048 x 1536 (QXGA), 2048 x 2048, 2560 x 2560, 3072 x 2304 |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Total megapixels | 12 MP |
| Maximum resolution | 3504 x 3504 pixels |
| Audio | |
| Bit rate range | 8 - 320 Kbit/s |
| Sample rates | 8 - 48 kHz |
| Built-in microphone | Yes |
| Audio codecs | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio output channels | 1.0 channels |
| Audio input channels | 1.0 channels |
| Built-in speaker(s) | Yes |
| Network | |
| Live view | Yes |
| Number of simultaneous live view channels | 20 channels |
| Quality of Service (QoS) support | Yes |
| Number of users | 32 user(s) |
| User access level | Administrator, Operator, User |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets |
| Networking standards | IEEE 802.3af |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
| Internal memory | 800 MB |
| Flash memory | 2048 MB |
| Maximum memory card size | 256 GB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
| RS-485 ports | 1 |
| Security | |
| Active tampering alarm | Yes |
| Alert notification type | |
| Digest authentication | Yes |
| Digital watermark | Yes |
| Flash log | Yes |
| HTTPS encryption | Yes |
| Heartbeat | Yes |
| IP address filtering | Yes |
| Intelligent Video Surveillance (IVS) system features | Defocus, People counting, Scene change |
| Motion sensor | Yes |
| Network access storage (NAS) | Yes |
| Password reset via email | Yes |
| Security algorithms | EAP-MD5, EAP-PEAP, EAP-TLS, TLS |
| Password protection | Yes |
| Alarm output channels | 2 |
| Alarm input channels | 2 |
| Management features | |
| Behavior analysis | Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection |
| Reset button | Yes |
| Web browser | Yes |
| Power | |
| DC output current | 1 A |
| DC output voltage | 12 |
| Power consumption (Power over Ethernet (PoE)) | 12.5 W |
| Power consumption (max) | 11.5 W |
| Power source type | DC |
| Operational conditions | |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | -40 - 60 °C |
| Weight & dimensions | |
| Weight | 715 g |
| Diameter | 14 cm |
| Height | 59.4 mm |
| Packaging data | |
| Package weight | 1.21 kg |
| Package height | 135 mm |
| Package depth | 230 mm |
| Package width | 260 mm |
| Supplier features | |
| Manufacturer | Hikvision |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Maximum resolution | 3504 x 3504 pixels |
