Tired of blind spots that let intruders slip by? The Hikvision DS-2TD2138-25/QY Wired IP Security Camera Outdoor 35 mK 0.48 mRad gives you clear thermal vision even in total darkness. It is built for tough outdoor sites where normal cameras fail, so you can see heat signatures, stop theft, and catch fire hazards before they become emergencies.

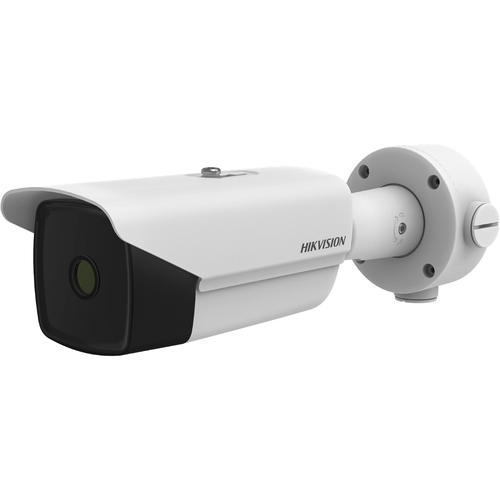

Hikvision DS-2TD2138-25/QY Wired IP Security Camera Outdoor 35 mK 0.48 mRad
Large facilities often struggle with perimeter defense and early fire detection because traditional video cant see through fog, rain or darkness. Missing a heat source can mean a costly breach or a dangerous blaze. This camera solves the problem with a high-sensitivity thermal sensor, anti-corrosion coating, and IP67 protection, delivering reliable images in any weather and alerting you to temperature changes instantly.
Benefits
- Detects human and vehicle heat signatures up to 3.2 km, giving you early warning.
- Thermal sensitivity of 35 mK shows even the smallest temperature differences.
- Works day and night, in rain, dust, or extreme temperatures.
- Integrates with Hikvision iVMS-4200 and Hik-Connect for easy monitoring.
- Low power draw and PoE support keep installation simple and cost-effective.
Usages
Install the camera at airport runways to spot unauthorized vehicles at night, on railway lines to catch trespassers before they reach tracks, or around prison walls to prevent escapes. Power stations benefit from early fire detection, while 4S stores use it to protect valuable inventory in outdoor parking lots. Anywhere you need reliable heat detection in a harsh environment, this camera fits the job.
Key Features
- Thermal sensitivity: 35 mK (NETD)
- IFOV: 0.48 mRad for precise detail
- Resolution: 384 288 pixels
- 25 mm fixed focal length, f/1.1 aperture
- Infrared band: 8-14 m
- IP67 weatherproof and corrosion-resistant coating
- Power over Ethernet (PoE) up to 5.5 W
- 8 digital zoom for distant targets
- 2 alarm inputs and 2 alarm outputs for external sensors
- Supports H.264, H.265, and M-JPEG compression
Specifications
| Performance |
| IFOV (spatial resolution) |
0.48 mRad |
| Languages support |
Multi |
| Number of languages |
32 |
| Thermal sensitivity (NETD) |
35 mK |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
| Weatherproof |
Yes |
| International Protection (IP) code |
IP67 |
| Protection features |
Corrosion resistant |
| Product colour |
White |
| Mounting type |
Wall |
| Form factor |
Bullet |
| Camera |
| Camera pixel size |
12 µm |
| Field of view (FOV) angle (thermal module) |
11 x 8° |
| Image sensor |
| Effective sensor resolution (thermal module) |
384 x 288 pixels |
| Sensor type (thermal module) |
Vanadium Oxide Uncooled Focal Plane Arrays |
| Sensor type |
CMOS |
| Lens system |
| Aperture number (thermal module) |
1.1 |
| Fixed focal length (thermal module) |
25 mm |
| Infrared spectral band |
8 - 14 µm |
| Identify distance |
399 m |
| Recognize distance |
799 m |
| Detect distance |
3194 m |
| Digital zoom |
8x |
| Number of lenses |
1 |
| Video |
| Supported graphics resolutions |
704 x 576, 1280 x 720 (HD 720), 352 x 288, 640 x 512 |
| Video compression formats |
H.264, H.265, M-JPEG |
| Maximum resolution |
1280 x 720 pixels |
| Audio |
| Audio formats supported |
G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM |
| Network |
| Client interoperability |
iVMS-4200, Hik-Connect |
| Live view |
Yes |
| Number of simultaneous live view channels |
20 channels |
| Quality of Service (QoS) support |
Yes |
| Number of users |
32 user(s) |
| User access level |
Administrator, Operator, User |
| Supported network protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SRTP, SFTP |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Maximum memory card size |
256 GB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| RS-485 ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Automatic Network Replenishment (ANR) |
Yes |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Security algorithms |
EAP-MD5, EAP-TLS |
| Password protection type |
User |
| Password protection |
Yes |
| Temperature measurement accuracy |
8 °C |
| Temperature measurement range |
-20 - 150 °C |
| Alarm output channels |
2 |
| Alarm input channels |
2 |
| Management features |
| Behavior analysis |
Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Web-based management |
Yes |
| Power |
| DC output current |
0.61 A |
| DC output voltage |
12 |
| Power consumption (Power over Ethernet (PoE)) |
5.5 W |
| Power consumption (max) |
5 W |
| AC input voltage |
24 V |
| Power source type |
DC, PoE |
| Operational conditions |
| Operating temperature (T-T) |
-40 - 65 °C |
| Weight & dimensions |
| Weight |
1.77 kg |
| Length |
351.3 mm |
| Height |
115.2 mm |
| Width |
113.5 mm |
| Supplier features |
| Manufacturer |
Hikvision |
| Packaging content |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
1280 x 720 pixels |
