Keep your workplace safe and your entry points screened in seconds. The Hikvision DS-2TD2617B-6/PA Indoor Outdoor IP Security Camera Wired Ceiling White is a thermographic bullet camera that reads skin-surface temperature instantly. It is built for offices, factories, stations, airports and any public area where a quick, reliable health check is needed. If you worry about missed fevers and want a single device that watches and alerts, this camera gives you that confidence.

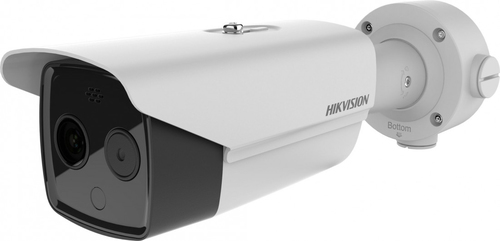

Hikvision DS-2TD2617B-6/PA Indoor Outdoor IP Security Camera Wired Ceiling White
Many businesses struggle to screen large numbers of people without slowing down traffic. A delayed check can cause queues, frustration and a higher risk of illness spreading. This camera solves the problem by combining high-resolution video with accurate temperature detection in one wired unit. It works day or night, indoors or outdoors, and sends an alarm the moment a temperature exceeds the set limit. The result is a smooth flow of people and a safer environment.
Benefits
- Instant temperature alerts help stop potential infections early.
- Clear 4 MP video lets you verify identity and behavior at the same time.
- IP66 rating protects the camera from rain, dust and harsh weather.
- Wired PoE connection simplifies installation and ensures reliable power.
- Built-in microphone and alarm I/O enable two-way communication and quick response.
Usages
Install the camera at building entrances, lobby ceilings or factory gates to screen every person who walks in. Use it in hospital waiting rooms to monitor visitors without adding staff. Place it at airport security lines to keep travelers moving while checking for fevers. The same unit works in outdoor warehouses, school corridors, or public transport stations, providing both surveillance and health screening in one device.
Key Features
- Thermographic sensor with high-accuracy temperature measurement.
- 4 MP CMOS sensor delivering 2688 1520 pixel resolution.
- Wide Dynamic Range (WDR) for clear images in bright or dark light.
- Night vision up to 40 m using IR LEDs.
- Day/night mode automatically switches for optimal picture.
- Supports H.264, H.265 and MPEG video compression.
- MicroSD slot up to 128 GB for local video storage.
- 32 user accounts with HTTPS encryption for secure access.
- PoE power consumption of 8 W, no separate power cable needed.
- IP66 enclosure and white finish blend with indoor or outdoor decor.
Specifications
| Performance |
| Languages support |
Multi |
| Number of languages |
32 |
| Alarm input/output |
Yes |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
| International Protection (IP) code |
IP66 |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Bullet |
| Camera |
| Adjustment shutter speed |
Auto/Manual |
| Camera shutter speed |
1 - 1/100000 s |
| Camera shutter type |
Electronic |
| White balance |
ATW, Auto, Daylight, Indoor, Lamp, Manual, Outdoor, Sodium lamp |
| Lens viewing angle, vertical |
22.14° |
| Lens viewing angle, horizontal |
39.42° |
| Minimum illumination |
0.0018 lx |
| Image sensor |
| Number of effective pixels (H x V) |
2688 x 1520 pixels |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.7 mm (1 / 2.7") |
| Sensor type |
CMOS |
| Lens system |
| Fixed focal length |
8 mm |
| Maximum aperture number |
1.1 |
| Fixed focus |
Yes |
| Night vision |
| LED type |
IR |
| Night vision distance |
40 m |
| Night vision |
Yes |
| Video |
| Noise reduction technology |
3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Supported video modes |
240p, 360p, 480p, 540p, 576p, 720p, 768p, 1080p, 1440p, 1520p |
| Supported graphics resolutions |
176 x 144, 320 x 240, 352 x 288, 384 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520 |
| Video compression formats |
H.264, H.265, MPEG |
| Total megapixels |
4 MP |
| Maximum resolution |
2688 x 1520 pixels |
| Audio |
| Audio formats supported |
G.711, G.711 A-law, G.711 μ-law, G.726, MP2L2, PCM |
| Audio input channels |
1.0 channels |
| Network |
| Quality of Service (QoS) support |
Yes |
| Number of users |
32 user(s) |
| Supported network protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Networking standards |
IEEE 802.1x, IEEE 802.3af |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Maximum memory card size |
128 GB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| DC-in jack |
Yes |
| Microphone in |
Yes |
| RS-485 ports |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Management features |
| Reset button |
Yes |
| Web browser |
Yes |
| Power |
| DC output voltage |
12 |
| Power consumption (Power over Ethernet (PoE)) |
8 W |
| Power consumption (max) |
7.5 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
10 - 35 °C |
| Weight & dimensions |
| Weight |
1.76 kg |
| Length |
358.3 mm |
| Height |
115.2 mm |
| Width |
113.5 mm |
| Packaging data |
| Package type |
Box |
| Supplier features |
| Manufacturer |
Hikvision |
| Packaging content |
| Manual |
No |
| Cables included |
LAN (RJ-45) |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
2688 x 1520 pixels |
