In busy warehouses and distribution centers, a missed or unreadable barcode can stop a line, cause extra data entry, and waste valuable time. When labels are torn, smudged, or printed on cheap material, workers often have to re-type numbers, which leads to errors and slower shipments. The Honeywell 1990i handheld scanner removes that bottleneck by reading even the worst codes quickly, so you keep the flow moving and avoid costly delays.

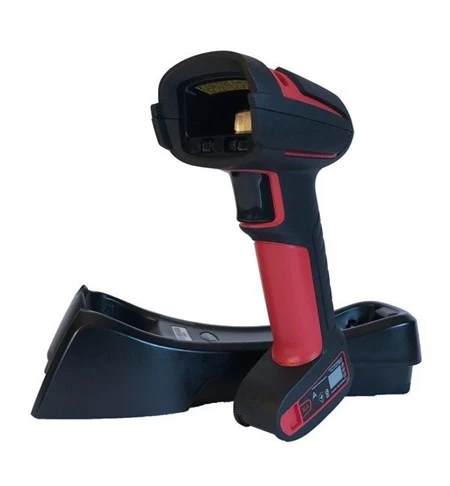

Honeywell 1990i 1D/2D 1280 x 800 pixels Handheld Barcode Scanner with Honeywell
Imagine a scanner that never quits, even when the floor is dusty and the labels are faded. The Honeywell 1990i is a rugged, handheld device built for fast 1D and 2D scanning. It captures every code, from tiny QR tags to large matrix symbols, and sends the data instantly to your system. If you struggle with slow, error-prone data capture, this scanner gives you the speed and reliability you need to stay ahead.
Key Features
- 10-foot (3 m) drop tolerance.
- Light level handling from 0 to 100000 lx, even in direct sunlight.
- Supports Code 39, Data Matrix, PDF417, QR, UPC-A, UPC-E and more.
- LED sensor with 1280 x 800 pixel resolution.
- Built-in rechargeable battery with low standby power.
- Wired connectivity via USB, keyboard wedge, or RS-232.
- Weight only 320 g for easy handheld use.
- IP67 dust and moisture sealing for harsh workplaces.
Specifications
| Scanning |
| Yaw reading angle |
-65 - 65° |
| Pitch reading angle |
-45 - 45° |
| Light levels (direct sunlight) |
0 - 100000 lx |
| Optical sensor resolution (W x H) |
1280 x 800 pixels |
| 2D (matrix & stacked) barcodes supported |
Code 39, Data Matrix, PDF417, QR Code |
| Linear (1D) barcodes supported |
PDF417, UPC-A, UPC-E |
| Sensor type |
LED |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| Standard interfaces |
Keyboard wedge, RS-232, USB |
| Connectivity technology |
Wired |
| Performance |
| International Protection (IP) code |
IP67 |
| Product colour |
Black, Red |
| Power |
| Power consumption |
2.35 mA |
| Input voltage |
4 - 5.5 V |
| Battery type |
Built-in battery |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
2.35 W |
| Power source type |
Battery, DC |
| Weight & dimensions |
| Weight |
320 g |
| Height |
192 mm |
| Depth |
76 mm |
| Width |
100 mm |
| Packaging data |
| Cables included |
USB |
| Operational conditions |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
-30 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
