Imagine scanning every item without stopping your work flow. The Honeywell 8690i, 1D/2D Wearable RFID Mini Mobile Computer (EU Version) lets you do just that. It is a small, hands-free scanner that reads barcodes and RFID tags while you move. Workers in busy warehouses, retail floors, or factories often miss a scan because they have to hold a device or bend down. This device solves that problem and keeps your data accurate.

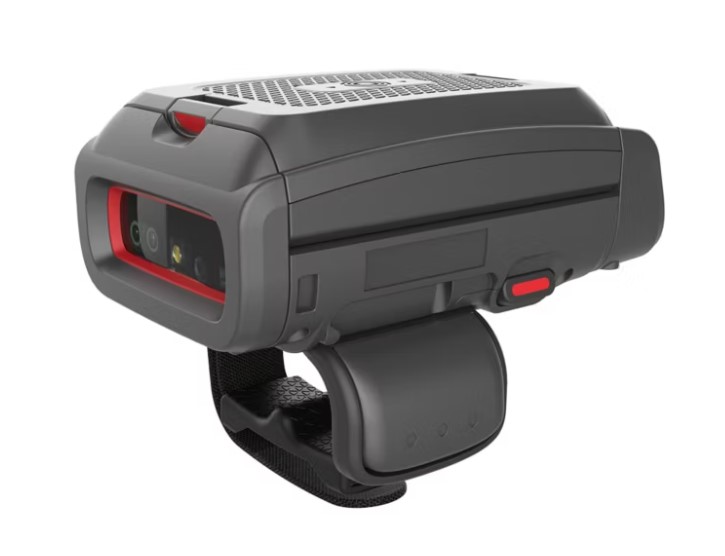

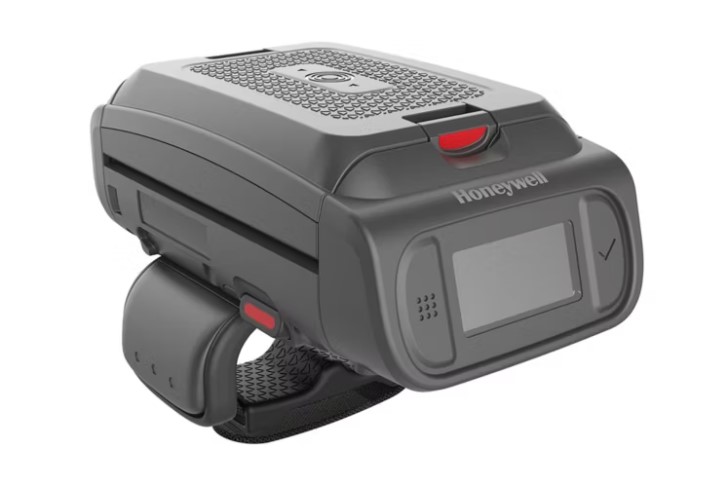

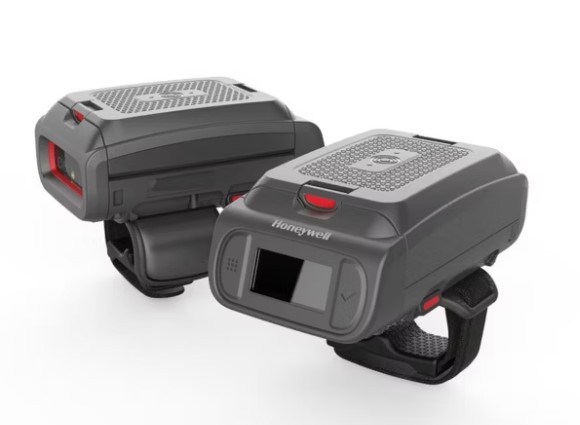

Honeywell 8690i, 1D/2D Wearable RFID Mini Mobile Computer (EU Version)
The main issue is lost time when a scanner is not ready or is too big to wear. When you lose seconds on each item, the whole operation slows down and errors increase. The 8690i attaches to a belt or vest and stays ready to scan. Its Bluetooth and Wi-Fi connections send data instantly to your system. This clear solution lets you keep moving, keep scanning, and keep your inventory correct.
Key Features
- 1D and 2D barcode decoding.
- Standard scan range up to 1 meter.
- Bluetooth 5.0 Class 1 and Wi-Fi connectivity.
- Compact size 95.7 mm 56 mm 39.4 mm.
- Motion tolerance up to 584 cm/s.
- Brightness tolerance from 0 to 100,000 lux.
- IP54 protection against dust and water.
- Drop resistance from 1.5 m onto concrete.
- Operating temperature -20 C to 50 C.
- Storage temperature -20 C to 60 C.

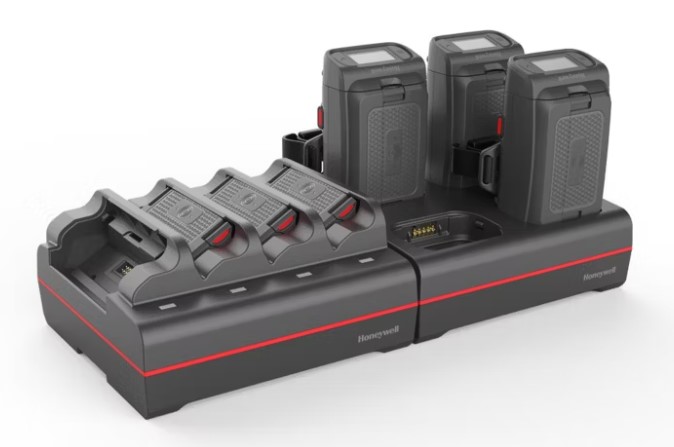

- Battery charging by contact method.
- Designed for aerospace, logistics, manufacturing, and retail.
Specifications
| Category |
Barcode Scanner |
| Brand |
Honeywell |
| Connectivity |
Bluetooth & Wi-Fi |
| Bluetooth Specification |
2.4 GHz – 2.5 GHz ISM band, Adaptive Frequency Hopping, Bluetooth 5.0 Class 1 |
| Dimensions |
95.7 mm × 56 mm × 39.4 mm (3.8 in × 2.2 in × 1.6 in) |
| Scan Range |
Standard Range (0–1 m) |
| Scanning Range Type |
Standard Range (SR) |
| Decode Capability |
1D / 2D |
| Skew |
±60° |
| Pitch |
±45° |
| Motion Tolerance |
Up to 584 cm/s (230 in/s) |
| Brightness Tolerance |
0 – 100,000 lux |
| Battery Type |
Li-ion Battery |
| Power Connector Type |
Cordless |
| Charging Method |
Contact Charging |
| Operating Temperature |
-20°C to 50°C (-4°F to 122°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Operating Humidity |
0% to 95% RH (non-condensing) |
| Minimum Operating Temperature |
-20°C (-4°F) |
| Protection Rating |
IP54 |
| Drop Specification |
36 × 1.5 m (4.9 ft) drops to concrete |
| Industries |
Aerospace, Logistics & Warehouses, Manufacturing, Retail |
