Running a busy warehouse or a production line means you need labels fast, clear and reliable. When a printer stalls or prints blurry barcodes, shipments get delayed, inventory errors rise and costs go up. The Honeywell PM45 solves these problems by delivering high-speed, high-resolution thermal transfer printing that keeps your operations moving without interruption.

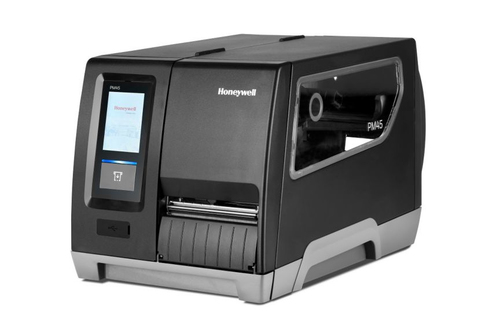

Honeywell PM45 (PM45A10000030200) 203x203 DPI 350mm/sec Thermal transfer Printer with Honeywell
This printer is built for industrial label work. It prints black labels up to 10.8 cm wide at 350 mm per second with 203 203 dpi quality. You can connect it by USB, Ethernet or wireless radio, and it works with many barcode languages. If you need fast, accurate tags for food, pharma, or warehouse items, this machine gives you the speed and precision you need.
Key Features
- 14 ips maximum print speed.
- 0.5 mm print registration for precise placement.
- Supports 1D and 2D barcodes, plus BMP, GIF, PNG images.
- 512 MB flash memory and 256 MB internal storage for label templates.
- Multiple print languages: DP, DPL, IPL, XML, ZPL II.
- Touch LCD display for easy local control.
Specifications
| Printing |
| Maximum print length |
4.8 m |
| Margin depth settings |
Fixed |
| Maximum printing width |
10.8 cm |
| Printing colours |
Black |
| Print speed |
350 mm/sec |
| Print speed |
350 mm/sec |
| Print speed |
350 mm/sec |
| Number of printable dots |
8 dot |
| Maximum resolution |
203 x 203 DPI |
| Colour |
No |
| Print technology |
Thermal transfer |
| Paper handling |
| Core diameter |
7.62 cm |
| Maximum label width |
11.4 cm |
| Maximum roll diameter |
21.3 cm |
| Ports & interfaces |
| RS-232 ports |
1 |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired & Wireless |
| Performance |
| Image formats supported |
BMP, GIF, PCX, PNG |
| Built-in barcodes |
1D, 2D |
| Flash memory |
512 MB |
| Internal memory |
256 MB |
| Page description languages |
DP, DPL, IPL, XML, ZPL II |
| Design |
| Control type |
Touch |
| Display |
LCD |
| Built-in display |
Yes |
| Product colour |
Black |
| Power |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (standby) |
9.6 W |
| System requirements |
| Linux operating systems supported |
Yes |
| Mobile operating systems supported |
Android, iOS |
| Windows operating systems supported |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
20 - 85% |
| Weight & dimensions |
| Weight |
12.6 kg |
| Height |
181 mm |
| Depth |
432 mm |
| Width |
253 mm |
| Technical details |
| Compliance certificates |
CE, RoHS |
| Sustainability certificates |
ENERGY STAR |
| Other features |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian,
Japanese, Korean, Portuguese, Russian, Thai
|
| Maximum resolution |
203 x 203 DPI |
| Supported network protocols |
TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/ LPD, Telnet/SSH, FTP/SFTP, BOOTP,
DHCP, HTTP/HTTPS, SNMPv1/2c/3, SNMP-MIBII supported – over UDP/IP
(private enterprise MIB included), SMTP Supports IPv4 and IPv6
|
