Tired of slow, blurry labels that cause scanning errors and production delays? The Honeywell PM45A (PM45A10030030300) 300x300 DPI Thermal transfer Printer is built to end that frustration. It prints clear, high-resolution barcodes and text fast enough to keep your line moving. If you need reliable labeling for a busy warehouse or a regulated factory, this printer gives you the speed and precision you cannot afford to lose.

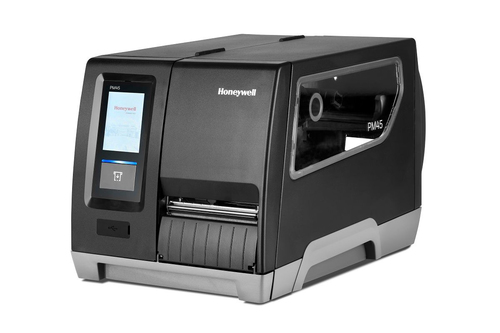

Honeywell PM45A (PM45A10030030300) 300x300 DPI Thermal transfer Printer
Many businesses struggle with inconsistent label quality that leads to mis-reads and costly re-work. Poor label quality hurts inventory control, slows shipping, and can even cause compliance issues. The PM45A solves this by delivering 300 300 dpi prints with 0.5 mm registration, so every barcode scans the first time. Its rugged design, fast 14 ips speed, and built-in connectivity let you print where you need it, without downtime.
Key Features
- 300 x 300 dpi resolution for sharp graphics.
- Print speed up to 300 mm/sec (14 ips).
- Maximum label width 11.4 cm and length 2.2 m.
- Thermal transfer technology for long-lasting prints.
- Ethernet LAN port for reliable wired networking.
- Two USB 2.0 ports for easy PC connection.
- 512 MB flash memory and 256 MB internal storage.
Specifications
| Printing |
| Maximum print length |
2.2 m |
| Margin depth settings |
Fixed |
| Maximum printing width |
10.6 cm |
| Printing colours |
Black |
| Print speed |
300 mm/sec |
| Print speed |
300 mm/sec |
| Print speed |
300 mm/sec |
| Number of printable dots |
11.8 dot |
| Maximum resolution |
300 x 300 DPI |
| Colour |
No |
| Print technology |
Thermal transfer |
| Paper handling |
| Core diameter |
7.62 cm |
| Maximum label width |
11.4 cm |
| Maximum roll diameter |
21.3 cm |
| Ports & interfaces |
| RS-232 ports |
1 |
| USB 2.0 ports quantity |
2 |
| USB port |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Connectivity technology |
Wired |
| Performance |
| Image formats supported |
BMP, GIF, PCX, PNG |
| Built-in barcodes |
1D, 2D |
| Flash memory |
512 MB |
| Internal memory |
256 MB |
| Page description languages |
DP, DPL, IPL, XML, ZPL II |
| Design |
| Control type |
Touch |
| Display |
LCD |
| Built-in display |
Yes |
| Product colour |
Black |
| Power |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (standby) |
9.6 W |
| System requirements |
| Linux operating systems supported |
Yes |
| Mobile operating systems supported |
Android, iOS |
| Windows operating systems supported |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
20 - 85% |
| Weight & dimensions |
| Height |
295 mm |
| Depth |
483 mm |
| Width |
284 mm |
| Technical details |
| Compliance certificates |
RoHS, CE |
| Sustainability certificates |
ENERGY STAR |
| Other features |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian,
Japanese, Korean, Portuguese, Russian, Thai
|
| Maximum resolution |
300 x 300 DPI |
| Supported network protocols |
TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/ LPD, Telnet/SSH, FTP/SFTP, BOOTP,
DHCP, HTTP/HTTPS, SNMPv1/2c/3, SNMP-MIBII supported – over UDP/IP
(private enterprise MIB included), SMTP Supports IPv4 and IPv6
|
