Tired of devices that die mid shift? Need a scanner that can survive drops and dust? The Honeywell ScanPal EDA61K keeps you moving.

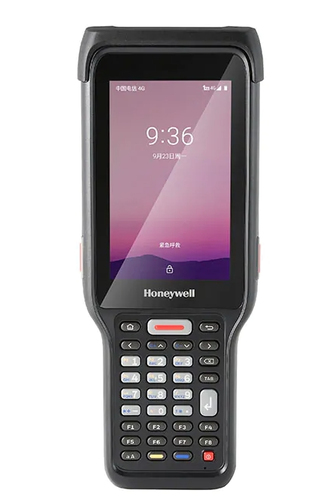

Honeywell ScanPal EDA61K Rugged Mobile 4" LCD 3GB/32GB | EDA61K-0NUB34PEOK
The ScanPal EDA61K is a rugged keyed mobile computer built for indoor and outdoor warehouses, distribution centers and retail backrooms. Its lightweight, ergonomically balanced design reduces user fatigue, so you can work all day without strain. A 7,000 mAh hot‑swappable lithium‑ion battery delivers up to 25 hours of operation, covering two to three full shifts on a single charge.
Powered by a Qualcomm 1.8 GHz octa‑core processor, the device offers fast data access and smooth multitasking. The 4 inch capacitive touchscreen displays clear 800 x 480 pixel images, while the numeric keypad provides reliable entry. With dual‑band Wi‑Fi, Bluetooth 4.2 and optional cellular, you stay connected wherever you go.
Benefits
The EDA61K improves workflow accuracy by capturing barcodes from a few centimeters up to 15 meters with Honeywell’s N6703 and EX20 imagers. Its 13 MP autofocus camera adds visual verification for inventory tasks. The rugged construction meets IP65 standards and survives drops from 150 cm, protecting your investment in harsh environments.
Features
- 1.8 GHz octa‑core Qualcomm chipset
- 4 inch capacitive touchscreen
- 3 GB RAM, 32 GB storage
- 7,000 mAh hot‑swappable battery
- IP65 dust and water protection
- Drop proof to 150 cm
- Dual‑band Wi‑Fi and Bluetooth 4.2
- 13 MP autofocus camera
Usage
Use the ScanPal EDA61K to scan, track and verify items as they move through your facility. Its long‑range scanner reads tags from across the floor, while the built‑in GPS supports location‑based tasks. The device operates from minus 20 to 50 Celsius and tolerates high humidity, making it ideal for cold storage, outdoor docks and busy retail stockrooms.
Specifications
| Display |
| Touch technology |
Multi-touch |
| Touchscreen |
Yes |
| Touchscreen type |
Capacitive |
| Display resolution |
800 x 480 pixels |
| Display diagonal |
10.2 cm (4") |
| Memory |
| Maximum memory card size |
128 GB |
| Compatible memory cards |
MicroSDHC |
| Flash memory |
32 GB |
| Internal memory |
3 GB |
| Processor |
| Built-in processor |
Yes |
| Number of cores |
8 |
| Processor manufacturer |
Qualcomm |
| Processor family |
Qualcomm |
| Processor frequency |
1.8 GHz |
| Network |
| Bluetooth version |
4.2 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| GPS Performance |
| GPS (satellite) |
Yes |
| Camera |
| Built-in camera |
No |
| Performance |
| Drop proof |
Yes, 150 cm |
| Drop proof |
Yes, 150 cm |
| International Protection (IP) code |
IP65 |
| Keyboard layout |
Numeric |
| Barcode reader |
Yes |
| Product colour |
Black |
| Software |
| Operating system upgradeable |
Yes |
| Operating system version |
9.0 |
| Operating system installed |
Android |
| Power |
| Battery voltage |
3.6 V |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
7000 mAh |
| Weight & dimensions |
| Height |
206 mm |
| Depth |
41.9 mm |
| Width |
78 mm |
| Weight |
460 g |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 50 °C |
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Battery |
| Battery capacity |
7000 mAh |
