Imagine trying to control dozens of sensors and actuators with a clunky box that cannot talk to your network. The Horner HE-RC C6512, Remote Compact Controller with Integrated I/O & Networking gives you a single, compact device that handles digital and analog signals while connecting directly to Ethernet, CAN, and serial networks. If you have ever wasted time rewiring or adding separate modules, this controller solves the mess and saves space.

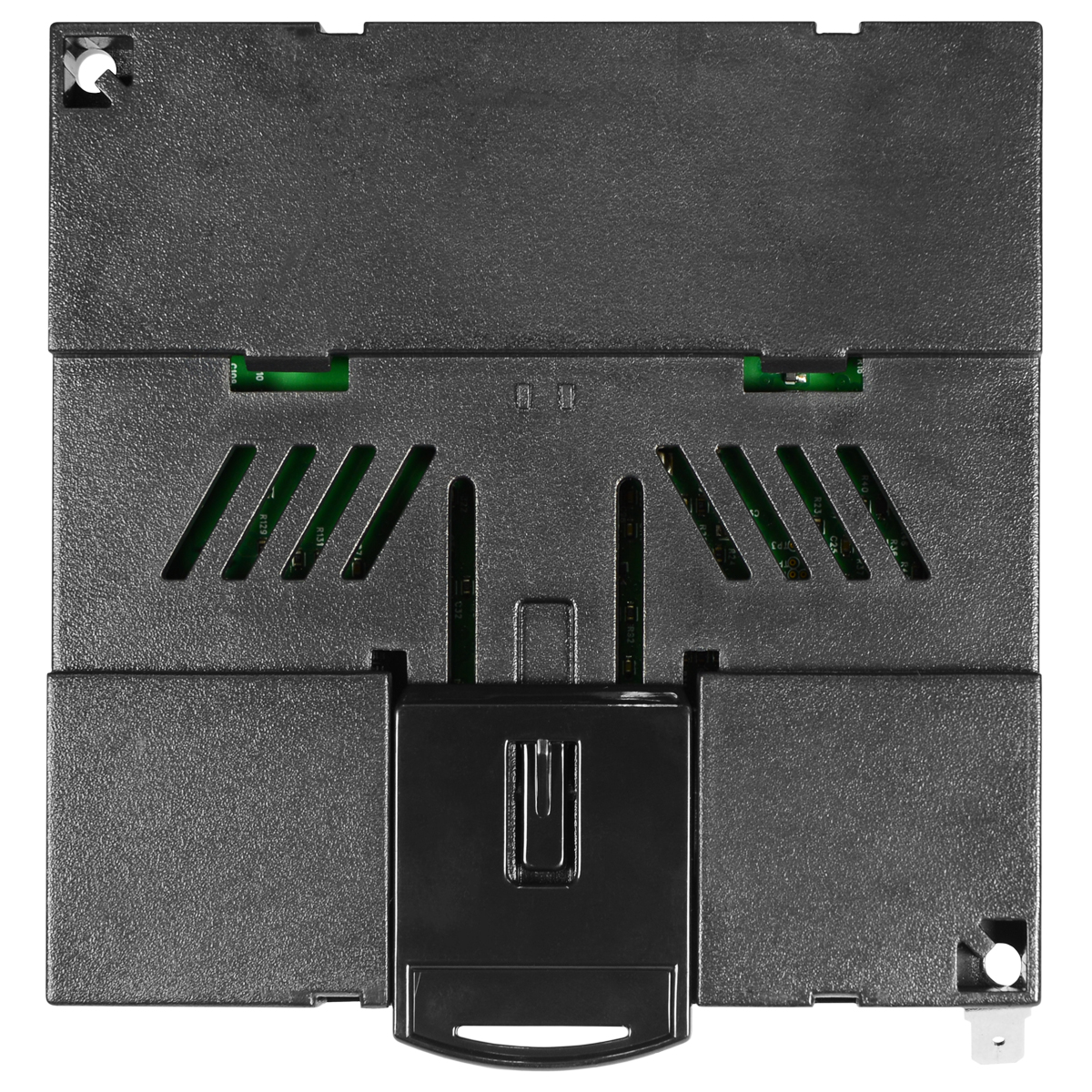

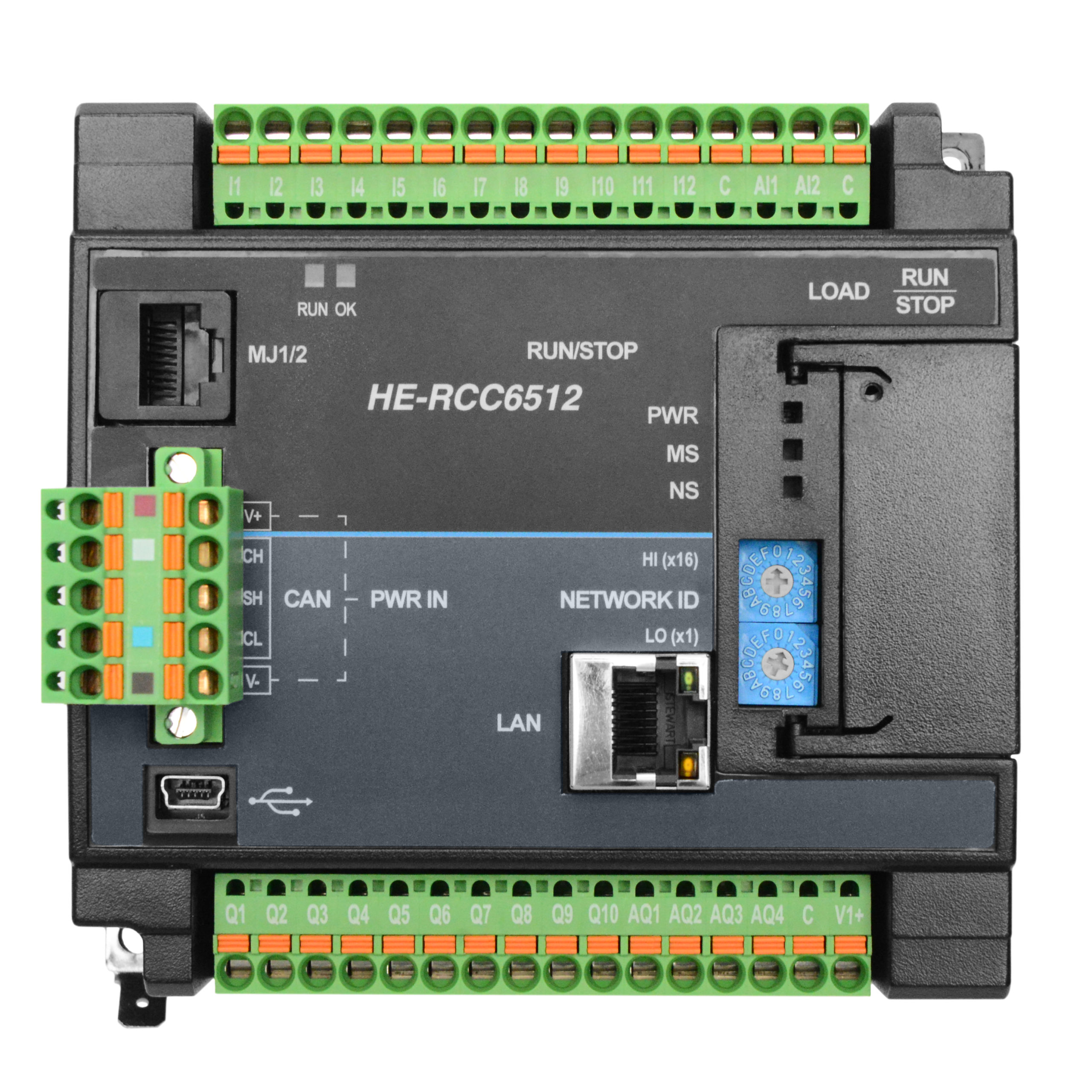

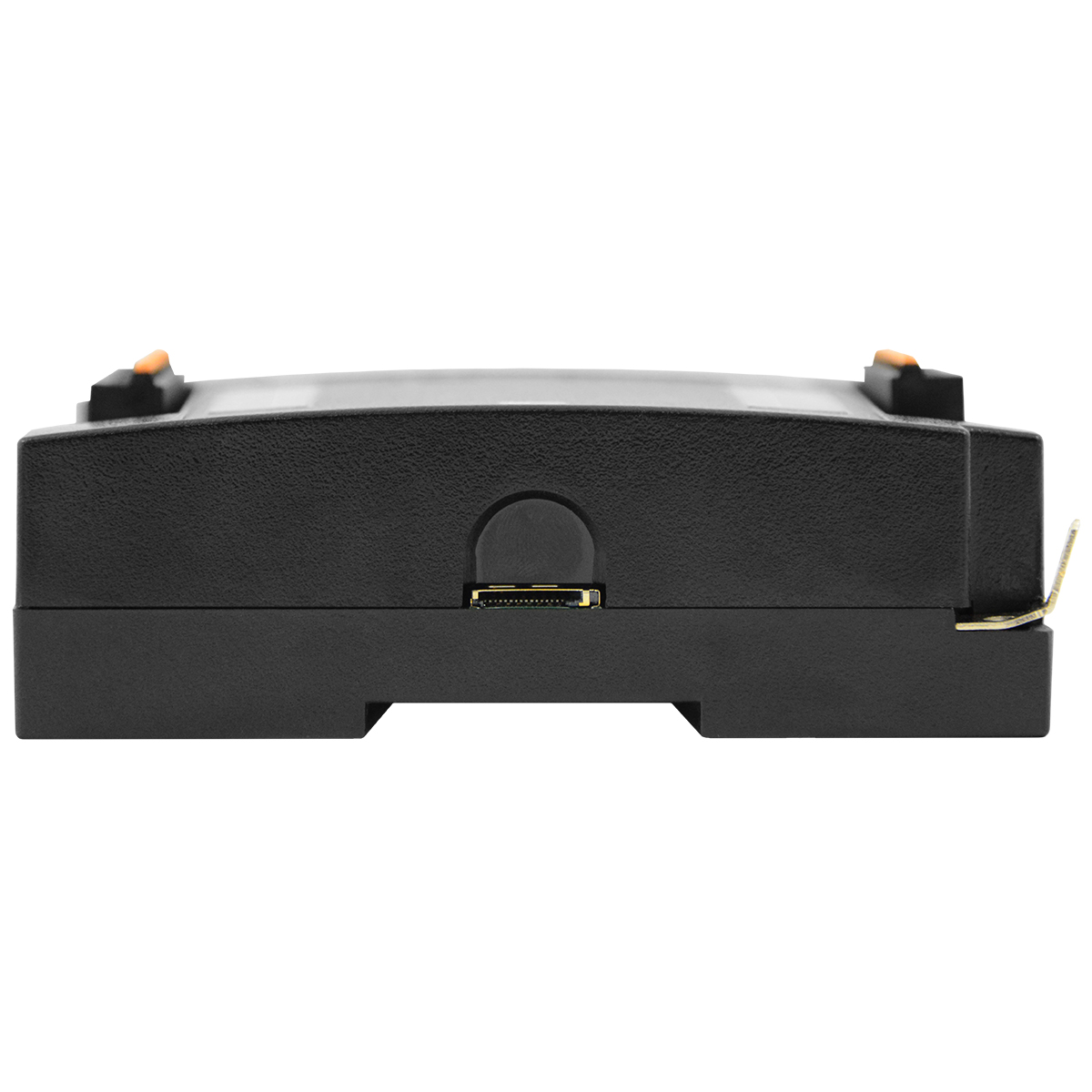

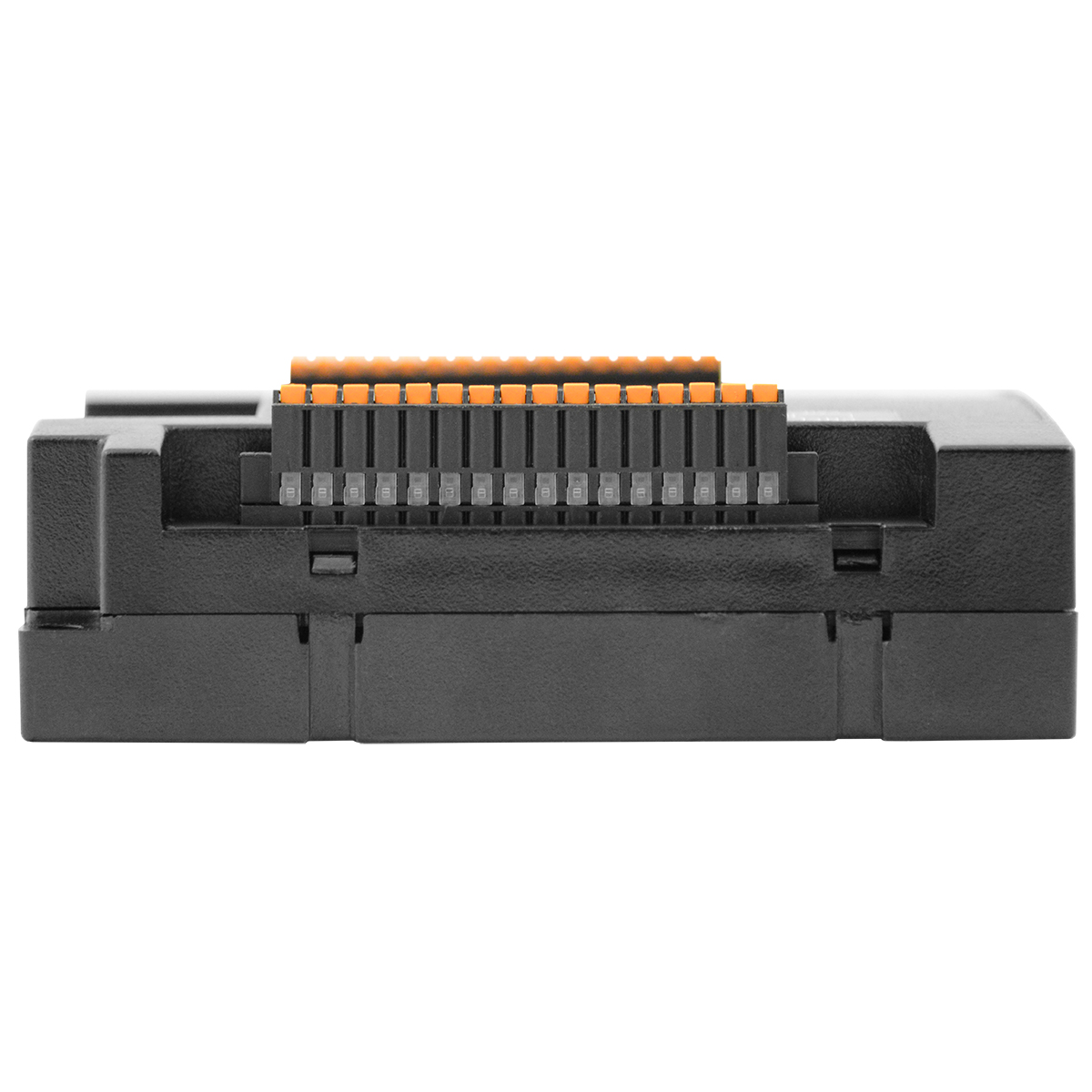

Horner HE-RCC6512, Remote Compact Controller with Integrated I/O & Networking
The main issue on many automation projects is the need for many separate I/O modules, each with its own power and wiring. This leads to higher cost, larger panels, and more points of failure. The problem matters because downtime or wiring errors can cost thousands. The H-RCC6512 integrates 12 digital inputs, 10 digital outputs, analog channels, and full networking in one 350-gram unit, giving you a reliable, low-maintenance solution.
Key Features
- 12 digital inputs, 10 digital outputs, 2 analog inputs, 4 analog outputs.
- Analog range 0-10 VDC or 0-20 mA for inputs, -10 V to +10 V for outputs.
- 1 x 10/100 Mbps Ethernet port, 1 RS-232, 1 RS-485, 1 CAN.
- USB Mini-B slave port for configuration and programming.
- MicroSD slot supports SD, SDHC, SDXC (FAT32).
- PID control for up to six loops directly in the controller.
- Mounts on 35 mm DIN rail or panel surface, housed in ABS blend.
- Operating temperature -10 C to +60 C, suitable for harsh environments.
- Power range 10-28 VDC, only 120 mA steady-state at 24 VDC.
- UL and CE certifications for safety and compliance.
Specifications:
| General |
|
| Model |
HE-RCC6512 |
| Product Type |
Remote Compact Controller (RCC) |
| Built-in I/O |
12 Digital Inputs, 10 Digital Outputs, 2 Analog Inputs, 4 Analog Outputs |
| Programming |
Advanced Ladder Logic or IEC 61131-3 Languages |
| Logic Size |
16 KB |
| Logic Scan Rate |
0.7 ms/kB |
| PID Support |
Up to 6 |
| Power |
|
| Primary Power Range |
10–28 VDC |
| Required Power (Steady State) |
120 mA @ 24 VDC |
| Required Power (Inrush) |
25 A for 1 ms @ 24 VDC Switched |
| Real-Time Clock |
Battery Backed (3 V Coin Battery CR2450) |
| Clock Accuracy |
±60 Seconds/Month at 25°C |
| Digital Inputs |
|
| Number of Inputs |
12 |
| Input Voltage Range |
-5 VDC to 24 VDC |
| Absolute Maximum Voltage |
35 VDC |
| Input Impedance |
10 kΩ |
| High Speed Counters |
8 |
| Maximum HSC Frequency |
500 kHz |
| Input Filter |
500 kHz, 50 kHz, 5 kHz |
| Logic Polarity |
Selectable in Cscape |
| Digital Outputs |
|
| Number of Outputs |
10 |
| Output Type |
Sourcing Outputs |
| Maximum Output Current |
0.5 A per Point |
| Maximum Total Output Current |
4 A |
| Output Supply Range |
5 VDC to 30 VDC |
| Output Protection |
Short Circuit and Overvoltage |
| PWM Outputs |
8 |
| Maximum PWM Frequency |
500 kHz |
| Minimum PWM Pulse Width |
1 μs |
| Analog Inputs |
|
| Number of Channels |
2 |
| Input Ranges |
0–10 VDC, 0–20 mA DC |
| Resolution |
12-bit |
| Conversion Rate |
One Update per Ladder Scan |
| Analog Outputs |
|
| Number of Channels |
4 |
| Output Range |
-10 VDC to +10 VDC |
| Resolution |
12-bit |
| Conversion Rate |
One Update per Ladder Scan |
| Communications |
|
| Ethernet |
1 × 10/100 Mbps |
| Serial Ports |
1 × RS-232, 1 × RS-485 (Full/Half Duplex Software Selectable) |
| CAN |
1 × 125 kbps to 1 Mbps |
| USB |
USB Mini-B Slave (Configuration and Application Programming Only) |
| microSD |
SD, SDHC, SDXC (FAT32) |
| Communication Support |
TCP/IP, Modbus TCP/IP |
| Memory |
|
| %I (Digital Inputs) |
512 |
| %Q (Digital Outputs) |
512 |
| %AI (Analog Inputs) |
256 |
| %AQ (Analog Outputs) |
256 |
| %M Registers |
1024 Non-Retentive |
| %T Registers |
1024 Non-Retentive |
| %R Registers |
2048 (256 Retentive) |
| Environmental |
|
| Operating Temperature |
-10°C to +60°C |
| Storage Temperature |
-10°C to +60°C |
| Relative Humidity |
5–95% Non-Condensing |
| Maximum Altitude |
2000 m |
| Mechanical |
|
| Mounting |
35 mm DIN Rail or Panel Surface |
| Housing |
ABS Blend |
| Weight |
354.37 g (12.5 oz) |
| Certifications |
|
| Certifications |
UL, CE |
