| Printing |
| Print head |
5 |
| Borderless printing |
Yes |
| Printing colours |
Cyan, Photo black, Matte black, Magenta, Yellow |
| Page description languages |
PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4 |
| Number of print cartridges |
9 |
| Print resolution colour |
2400 x 1200 DPI |
| Maximum resolution |
2400 x 1200 DPI |
| Colour |
Yes |
| Print technology |
Thermal inkjet |
| Copying |
| Copying |
No |
| Scanning |
| Scanning |
No |
| Paper handling |
| Custom media sizes |
210 x 279 to 1118 x 1676 mm |
| Roll paper |
Yes |
| Print margin roll |
5 mm |
| Maximum roll diameter |
13.5 cm |
| Media thickness |
0.8 mm |
| ISO A-series sizes (A0...A9) |
A0, A1, A2, A3, A4 |
| Paper tray media types |
Coated paper, Bond paper, Photo paper, Banner |
| Maximum print size |
1118 x 1676 mm |
| Ports & interfaces |
| Mobile printing technologies |
HP ePrint |
| Direct printing |
Yes |
| Wi-Fi Direct |
Yes |
| USB 2.0 ports quantity |
1 |
| USB connector |
USB Type-A |
| Ethernet interface type |
Gigabit Ethernet |
| USB port |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Performance |
| HP segment |
Business |
| Certification |
Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| Country of origin |
China, Thailand |
| Sound power level (standby) |
5.1 dB |
| Storage media |
HDD |
| Internal storage capacity |
500 GB |
| Built-in display |
Yes |
| Product colour |
Black, Silver |
| Brand-specific features |
| HP Dynamic security |
Yes |
| Power |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.1 W |
| Power consumption (sleep) |
6.5 W |
| Power consumption (standby) |
32 W |
| Power consumption (typical) |
100 W |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-25 - 55 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
5 - 40 °C |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR, Forest Stewardship Council (FSC) |
| Weight & dimensions |
| Weight |
98 kg |
| Height |
998 mm |
| Depth |
695 mm |
| Width |
1802 mm |
| Packaging data |
| Bundled software |
HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional) |
| Package weight |
137 kg |
| Package height |
718 mm |
| Package depth |
766 mm |
| Package width |
1950 mm |
| Other features |
| UNSPSC-code |
43212107 |
| Electromagnetic compatibility |
Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| Technical details |
| Box contents |

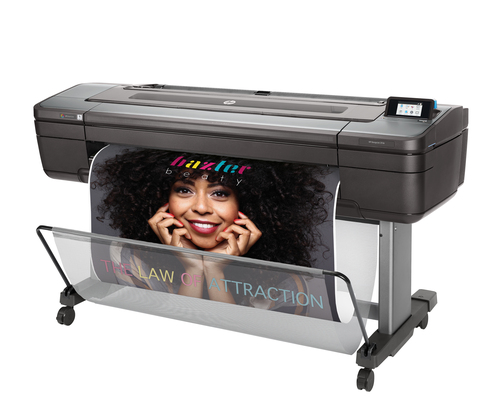

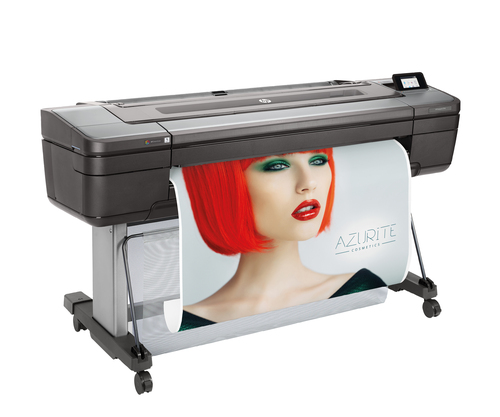

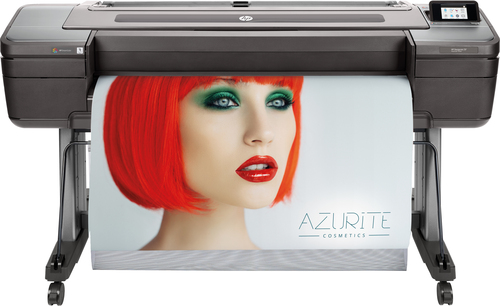

HP DesignJet Z9+ PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, 3-in core adapter, quick reference guide, setup poster, power cord |
