| Display |
| Display bezel technology |
Micro-Edge |
| sRGB coverage (typical) |
100% |
| Colour gamut |
100% |
| Colour gamut standard |
sRGB |
| Colour depth |
8 bit |
| Surface hardness |
3H |
| Haze rate |
25% |
| Display diagonal (metric) |
61 cm |
| Viewable size, vertical |
32.4 cm |
| Viewable size, horizontal |
51.8 cm |
| Vertical scan range |
50 - 100 Hz |
| Horizontal scan range |
30 - 130 kHz |
| Pixel density |
94 ppi |
| Pixel pitch |
0.27 x 0.27 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
100 Hz |
| Contrast ratio (dynamic) |
10000000:1 |
| Contrast ratio (typical) |
1500:1 |
| Aspect ratio |
16:10 |
| Supported graphics resolutions |
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA) |
| Screen shape |
Flat |
| Anti-glare screen |
Yes |
| Display surface |
Matt |
| Response time measurement type |
GTG (Gray to Gray) |
| Response time |
5 ms |
| Display brightness |
350 cd/m² |
| Display brightness (typical) |
350 cd/m² |
| Backlight type |
Edge LED |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
WUXGA |
| Touchscreen |
No |
| Display technology |
LCD |
| Native aspect ratio |
16:10 |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
61 cm (24") |
| Performance |
| HP segment |
Business |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Built-in camera |
No |
| Built-in speaker(s) |
No |
| Design |
| Feet colour |
Silver, Black |
| Colour name |
Jet black |
| Product colour |
Black |
| Market positioning |
Business |
| Ports & interfaces |
| HDCP |
Yes |
| Headphone out |
No |
| DisplayPort version |
1.2 |
| DisplayPort out quantity |
1.2 |
| DisplayPorts quantity |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| USB Type-A downstream ports quantity |
4 |
| Number of USB Type-B upstream ports quantity |
1 |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Ergonomics |
| On Screen Display (OSD) |
Yes |

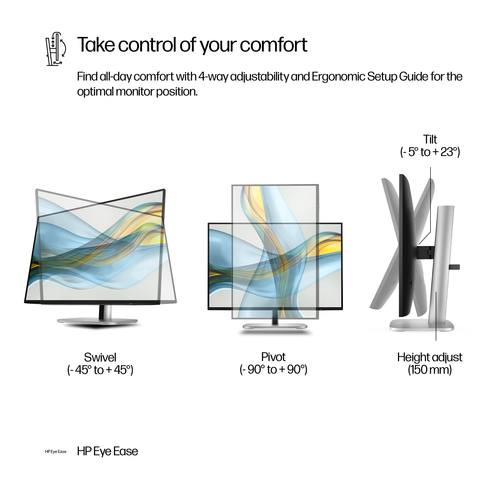

| Tilt angle range |
-5 - 23° |
| Tilt adjustment |
Yes |
| Swivel angle range |
-45 - 45° |
| Swivelling |
Yes |
| Pivot angle |
-90 - 90° |
| Pivot |
Yes |
| Adjustable height (max) |
15 cm |
| Height adjustment |
Yes |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| Energy efficiency scale |
A to G |
| Power supply type |
Internal |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (max) |
58 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
22 W |
| Energy consumption (SDR) per 1000 hours |
12 kWh |
| Energy efficiency class (HDR) |
C |
| Energy efficiency class (SDR) |
C |
| Operational conditions |
| Operating temperature (T-T) |
5 - 35 °C |
| Non-operating altitude |
0 - 12192 m |
| Operating altitude |
0 - 5000 m |
| Storage relative humidity (H-H) |
20 - 80% |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
5 - 35 °C |
| Weight & dimensions |

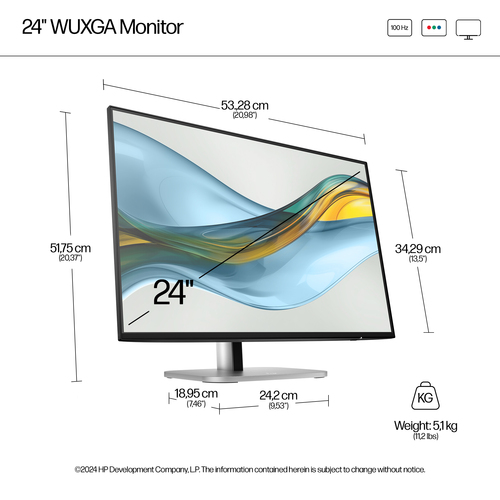

| Height (without stand) |
342.9 mm |
| Depth (without stand) |
47 mm |
| Width (without stand) |
532.8 mm |
| Weight (with stand) |
5.1 kg |
| Height (with stand) |
517.5 mm |
| Depth (with stand) |
189.5 mm |
| Width (with stand) |
532.8 mm |
| Packaging data |
| Warranty card |
Yes |
| Package type |
Box |
| Package weight |
7.4 kg |
| Package height |
411 mm |
| Package depth |
140 mm |
| Package width |
621 mm |
| Packaging content |
| Bundled software |
HP Display Center; HP Client Management Script Library |
| Quick start guide |
Yes |
| Cables included |
DisplayPort, AC |
| Sustainability |
| Sustainability certificates |
ENERGY STAR, EPEAT, TCO |
| Other features |
| Disclaimer |
<sup>[1]</sup> All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary, either higher or lower.<br><sup>[2]</sup> HP's Progressive White Balance feature is designed to calibrate 100% full white on HP Series 5 Pro monitors. This adjustment is intended to align the white point more closely among various HP Series 5 Pro monitors. However, due to the nature of monitors, perceptible differences in the white color may still occur when the monitors are viewed from varying angles.<br><sup>[3]</sup> Dock sold separately. Both HP Series 5 Pro 24" WUXGA - 524pn monitors need to be connected to the dock for a dual display setup.<br><sup>[4]</sup> HP Series 5 Pro 24" WUXGA - 524pn monitor sold separately.<br><sup>[5]</sup> Ergonomic Setup Guide is available through HP Display Center. Host PC requires Windows 10 or higher. HP Display Center is available on the Microsoft store.<br><sup>[6]</sup> Recycled plastic is expressed as a percentage of the total weight plastic. Post-consumer recycled is based on the definition set in the EPEAT standard for computers, IEEE 1680.1-2018 standard. Recycled metal is expressed as a percentage of the total weight of the metal according to ISO 14021 definitions for metal parts over 25 grams.<br><sup>[8]</sup> AC Power cable, HDMI cable, DisplayPort™ cable, and USB 3.2 A-B cable included. All other cables sold separately.<br><sup>[9]</sup> Host PC requires Windows 10 or higher. HP Display Center is available for download on the Microsoft store for Windows or support.hp.com for Windows and MacOS.<br><sup>[10]</sup> This product works with devices capable of running the latest version of Chrome OS and has been certified to meet Google's compatibility standards. Google is not responsible for the operation of this product or its compliance with safety requirements. Chromebook and the Works With Chromebook badge are trademarks of Google LLC.<br><sup>[11]</sup> Based on US EPEAT registration according to IEEE 1680.1-2018 EPEAT. Status varies by country. Visit www.epeat.net for more information. EPEAT is a world class ecolabel for electronics and technology products. EPEAT Gold with Climate+ registered products have met rigorous criteria and been independently verified to assure they have been thoughtfully designed with the planet in mind. With EPEAT Climate+, you're not just choosing products; you're choosing a movement towards corporate responsibility and climate action. This product has been verified to meet ENERGY STAR requirements.<br><sup>[12]</sup> Based on comparison against a 23.8-inch FHD (1920 x 1080) resolution monitor.<br><sup>[13]</sup> Configuration may vary based on port availability of host PC. Two video inputs, HDMI or DisplayPort, needed for a dual display setup.<br>Technical specification disclaimers:<br>All specifications represent the typical specifications provided by HP's component manufacturers, actual performance may vary either higher or lower.<br>DisplayPort™ 1.2 or HDMI 1.4 required to drive panel at its native resolution. The video card of the connected PC must be capable of supporting 1920 x 1200 at 60 Hz with 8-bit color using one DisplayPort™, HDMI. The video card of the connected PC must be capable of supporting 1920 x 1200 and include one DisplayPort™ or one HDMI outputs to drive the monitor at the Preferred Mode.<br>Number of colors through A-FRC technology.<br>Included cables may vary by country.<br>Lock sold separately.<br>Host PC requires Windows 10 and above. HP Display Center is available on the Microsoft store.<br>EPEAT registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country. Based on US EPEAT registration according to IEEE 1680.1-2018 EPEAT. Status varies by country. Visit www.epeat.net for more information.<br>External power supplies, WWAN modules, power cords, cables and peripherals excluded. Service parts obtained after purchase may not be Low Halogen.<br>Molded pulp cushions are made from 100% recycled wood fiber and organic materials.<br>100% outer box packaging and corrugated cushions made from sustainably sourced certified and recycled fibers.<br>Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard.<br>Recycled metal is expressed as a percentage of the total weight of the metal according to ISO 14021 definitions for metal parts over 25 grams.<br>HP's Progressive White Balance feature is designed to calibrate 100% full white on HP Series 5 Pro monitors. This adjustment is intended to align the white point more closely among various HP Series 5 Pro monitors. However, due to the nature of monitors, perceptible differences in the white color may still occur when the monitors are viewed from varying angles.<br>Percentage of recycled glass in the monitor panel varies by product. Recycled glass is expressed as a percentage of the total weight of the glass.<br>The Client Management Script Library must be downloaded to the connected PC to run CMSL commands. Some limitations may apply to legacy displays. Visit support.hp.com to download HP CMSL.<br>Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows is automatically updated and enabled. High speed internet and Microsoft account required. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com. |
| UNSPSC-code |
43211902 |
| Certification |
BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; WEEE; ISC; California Energy Commission (CEC); WW application; UAE; TGM; Ukraine certificates; NRCS; PSE; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Works with Chromebook certified; Korea MEPS; CEL Grade 2; Australian-New Zealand DoC; EMF |
| Compliance certificates |
CECP, GS mark, CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI |
| Manufacturer warranty |
HP three-year limited warranty |
| Package weight |
7.4 kg |
| Weight |
5.1 kg |
| Country of origin |
Vietnam |
| Brand-specific features |
| HP GTIN (EAN/UPC) |
197961404876 |
| Technical details |
| Box contents |
Monitor; Warranty card; Quick Setup Poster; AC power cord (PVC free) |
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
