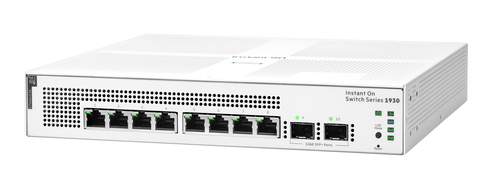

The HPE Networking Instant On Switch 1930 series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1 G SFP slots on 8-port model and 1 G/10 G SFP+ slots on 24-/48 G models for fiber connectivity.
What is new supporting point:
Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
1 G/10 G SFP+ ports on 24-and 48-port models for fiber connectivity.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Option to manage your switches through local web GUI.
Specifications
| Management features |
| System event log |
Yes |
| ARP inspection |
Yes |
| Cloud-managed |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3/L4 |
| Switch type |
Managed |
| Ports & interfaces |
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| Number of VLANs |
4093 |
| VLAN support |
Yes |
| Active link detection |
Yes |
| Auto-sensing |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Rate limiting |
Yes |
| Spanning tree protocol |
Yes |
| Routing entries |
32 |
| Full duplex |
Yes |
| IP routing |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Data transmission |
| Packet buffer memory |
1.5 MB |
| Jumbo frames |
9216 |
| Jumbo frames support |
Yes |
| Latency (1 Gbps) |
3 µs |
| Latency (10-100 Mbps) |
5.2 µs |
| Throughput |
14.88 Mpps |
| Throughput |
14.88 Mpps |
| Switching capacity |
20 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| BPDU filtering/protection |
Yes |
| Loop protection |
Yes |
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP snooping |
| Multicast features |
| Multicast support |
Yes |
| Design |
| Product colour |
White |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
| Fanless |
Yes |
| Flash memory |
256 MB |
| Internal memory |
512 MB |
| Memory type |
SDRAM / Flash |
| Maximum SPAN sessions |
800 |
| Processor model |
ARM Cortex-A9 |
| Built-in processor |
Yes |
| Power |
| Power consumption (max) |
150.2 W |
| Input current |
0.2 A |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
200 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
124 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
15 - 95% |
| Operating relative humidity (H-H) |
15 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight |
2.11 kg |
| Height |
43.9 mm |
| Depth |
254 mm |
| Width |
43.9 mm |
