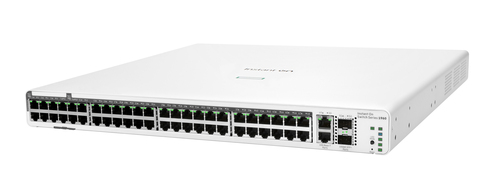

HPE Networking Instant On Switch 1960 series, consist of advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. The Instant On 1960 switches are made to handle the today bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.
What is new supporting point:
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
For environments with heavy bandwidth needs, 10 GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
Simplify network management by stacking up to four Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
The Networking Instant On 1960 aggregation switches comes with twelve 10 GBase-T and four SFP+ ports, providing 10 G connectivity to servers, network storage devices and access switches alike.
Specifications
| Management features |
| System event log |
Yes |
| ARP inspection |
Yes |
| Cloud-managed |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2+ |
| Switch type |
Managed |
| Ports & interfaces |
| SFP+ module slots quantity |
2 |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| 10G Ethernet (copper) ports quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-sensing |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Rate limiting |
Yes |
| Spanning tree protocol |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Data transmission |
| Packet buffer memory |
1.5 MB |
| Jumbo frames |
9216 |
| Jumbo frames support |
Yes |
| Latency (10 Gbps) |
1.1 µs |
| Latency (1 Gbps) |
2.2 µs |
| Latency (10-100 Mbps) |
4.4 µs |
| Throughput |
131 Mpps |
| Throughput |
131 Mpps |
| Switching capacity |
176 Gbit/s |
| MAC address table |
16000 entries |
| Security |
| Authentication |
Port-based authentication |
| Authentication type |
RADIUS |
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP snooping |
| Multicast features |
| Multicast support |
Yes |
| Protocols |
| IPv6 FIB entries |
32 |
| IPv4 FIB entries |
32 |
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL) |
| Design |
| Product colour |
White |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
| Flash memory |
512 MB |
| Internal memory |
1024 MB |
| Memory type |
DDR3-SDRAM |
| Processor frequency |
800 MHz |
| Processor model |
ARM Cortex-A9 |
| Built-in processor |
Yes |
| Physical stacking (units) |
4 |
| Power |
| Power consumption (max) |
120 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
200 - 240 V |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
15 - 90% |
| Operating relative humidity (H-H) |
15 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight |
4.4 kg |
| Height |
44 mm |
| Depth |
442.5 mm |
| Width |
350.5 mm |
