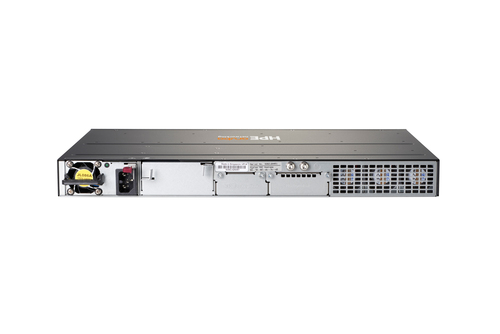

The HPE Aruba Networking 2930M Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch office networks. The HPE Aruba Networking 2930M Switch Series delivers performance and value with support for static, RIP and Access OSPF routing, 10 GbE and 40 GbE uplinks, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, up to 1440W of PoE, robust QoS, and Dynamic Segmentation for unified and secure access.
What is new supporting point:
Scale with modular 10 chassis stacking and up to 1440W PoE.
High Power PoE models deliver up to 60W of PoE per port.
Modular 10 GbE and 40 GbE uplinks and HPE Smart Rate multi-gigabit support.
Models with 24 ports of HPE Smart Rate with IEEE 802.3bz.
The 2930M Series is a family of layer 3 stackable switches that are easy to deploy and manage, providing scale and modularity for enterprise, SMB and branch access networks.
Simplify with Zero Touch Provisioning and cloud-based HPE Aruba Networking Central support.
Specifications
| Management features |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L3 |
| Switch type |
Managed |
| Ports & interfaces |
| Combo SFP ports quantity |
4 |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
20 |
| Network |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-sensing |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Rate limiting |
Yes |
| Spanning tree protocol |
Yes |
| Full duplex |
Yes |
| IP routing |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Data transmission |
| Packet buffer memory |
12.38 MB |
| Latency (10 Gbps) |
3.4 µs |
| Latency (1 Gbps) |
3.1 µs |
| Latency (10-100 Mbps) |
11.8 µs |
| Throughput |
95.2 Mpps |
| Throughput |
95.2 Mpps |
| Switching capacity |
128 Gbit/s |
| MAC address table |
32768 entries |
| Security |
| Authentication |
MAC-based authentication, Web-based authentication |
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP server |
| Multicast features |
| Multicast support |
Yes |
| Design |
| Product colour |
Grey |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
| Internal memory |
1024 MB |
| Memory type |
DDR3-SDRAM |
| Processor frequency |
1016 MHz |
| Built-in processor |
Yes |
| Power |
| Power consumption (max) |
49 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
200 - 240 V |
| Power supply included |
No |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Heat dissipation |
145 BTU/h |
| Operating temperature (T-T) |
0 - 55 °C |
| Operating relative humidity (H-H) |
15 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 55 °C |
| Weight & dimensions |
| Weight |
4.45 kg |
| Height |
324.3 mm |
| Depth |
442.5 mm |
| Width |
43.9 mm |
