Tired of weak Wi-Fi signals that drop the moment you step outside? The HPE Aruba Networking AP-587 (RW) Wi-Fi 6 Directional Outdoor Access Point is built to give you strong, reliable wireless coverage in harsh outdoor environments. If you run a campus, stadium, or remote site, you need a device that can handle many users, weather, and interference. This access point solves those problems so your guests stay connected without frustration.

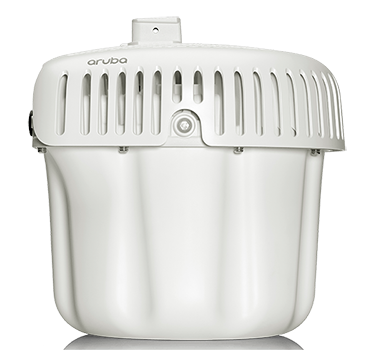

HPE Aruba Networking AP-587 (RW) Wi-Fi 6 Directional Outdoor Access Point
Many outdoor networks suffer from limited range, low speeds, and constant interference. When users cannot stream video or access cloud apps, productivity drops and satisfaction falls. The AP-587 delivers Wi-Fi 6 performance with dual 4x4 radios, directional antennas, and a rugged design that meets outdoor standards. By focusing the signal where you need it, it provides high-speed, low-latency connections even in crowded or weather-exposed areas.
Key Features
- Wi-Fi 6 (802.11ax) with dual 4x4 radios for high capacity.
- Directional antennas (H, V, +/-45) for focused coverage.
- Peak data rate 2.97 Gbps per band, total up to 3.55 Gbps.
- Supports 2.4 GHz and 5 GHz bands simultaneously.
- Integrated Bluetooth 5 and IEEE 802.15.4/Zigbee for IoT.
- 802.11 FTM and GNSS receiver enable precise location services.
- Compliant with Wi-Fi Alliance, Bluetooth SIG, and major safety certifications.
- Limited lifetime warranty for peace of mind.
- Compact size (17.4 30.2 30 cm) and weight 4.51 kg for easy mounting.
Specifications
| Deployment |
|
| Deployment |
Outdoor |
| Wireless |
|
| Wi-Fi generation |
Wi-Fi 6 (802.11ax) |
| Wi-Fi radios |
Dual 4x4 |
| Radio configuration options |
2.4 GHz + 5 GHz |
| Max bandwidths and peak data rate per band |
20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz),
peak data rate 2.97 Gbps, maximum data rate 3.55 Gbps
|
| Wi-Fi antenna |
Built in directional antennas (H, V, and +/-45 polarized),
5 GHz Antennas 5.2 dBi uncorrelated avg (6.6 dBi peak),
2.4 GHz Antennas 5.7 dBi uncorrelated avg (5.8 dBi peak), BLE Antenna 6.3 dBi peak.
|
| Ultra tri-band (UTB) filtering |
No |
| IoT support |
IEEE 802.15.4/Zigbee, Bluetooth 5 |
| Integrated sensor |
No |
| Location services |
802.11 FTM support; GNSS receiver |
| Cellular support |
No |
| Networking & Interfaces |
|
| Wired network interface |
1x 5GE, 1x SFP+, 1x 1GbE PSE |
| MACsec support |
No |
| Ports |
Ethernet wired port (RJ-45) Ethernet wired port (RJ-45)
PSE Ethernet wired port (SFP+) USB-C console interface
|
| Power |
|
| Power sources |
PoE-PD; AC power; PoE-PSE |
| Software & Management |
|
| AP operating system support |
HPE Aruba Networking Wireless Operating System 8 and
HPE Aruba Networking Instant OS 8 HPE Aruba Networking Operating System OS10
|
| AP management |
On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Compliance & Certifications |
|
| Certifications |
Wi-Fi Alliance Bluetooth SIG Ethernet Alliance (E0, PoE PD device, class 6; E2, PoE PSE device, class 3) |
| Regulatory |
FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 IEC 60950-22
IEC/EN60601-1-2 EN 50155 For more country-specific regulatory i
nformation and approvals, contact your HPE representative.
|
| Warranty |
Limited lifetime warranty. See the warranty duration. |
| Physical |
|
| Weight |
4.51 kg (9.94 lbs) |
| Dimensions |
17.4 x 30.2 x 30 cm (H x W x D) |
