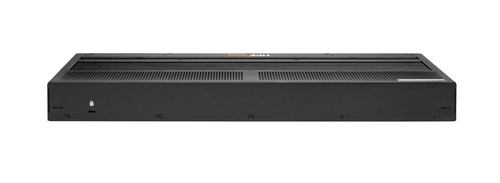

The HPE Aruba Networking CX 4100i Switch Series is a modern family of ruggedized Ethernet switches ideal for connecting IoT, access points, and user devices in harsh environments. Created for high performance, reliable, and access with enhanced security, the CX 4100i switches provide versatile deployment options for enterprise networks extending beyond carpeted areas to challenging outdoor and industrial spaces. Based on the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) used across the CX portfolio, this IP30 ruggedized series helps deliver a more consistent and efficient operator experience. This Layer 2 series has convenient built-in high speed uplinks, supports both 30W and 60W PoE, and is ready for deployment with fan less 12 port DIN mount and 24 port 1U rack mount models. With robust QoS, support for static routing, and IPv6, the CX 4100i also simplifies ownership with no switch software licensing requirements.
What is new supporting point:
Layer 2 feature set with static routing and no switch software licensing required.
Versatile form factors with fast 1/10 GbE uplinks deliver both 30W and 60W PoE to improve IoT power.
Ruggedized Layer 2 switch series provides high performance, fully manageable, and reliable, Ethernet connectivity to IoT, access points, and user devices in harsh environments.
HPE Aruba Networking Dynamic Segmentation enables enhanced security and simplified access for users and IoT.
Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software.
Specifications
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| Console port |
RJ-45/USB Type-C |
| SFP+ module slots quantity |
4 |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
12.38 MB |
| Jumbo frames support |
Yes |
| Latency (10 Gbps) |
1.243 µs |
| Latency (1 Gbps) |
1.585 µs |
| Throughput |
95 Mpps |
| Throughput |
95 Mpps |
| Switching capacity |
128 Gbit/s |
| MAC address table |
8192 entries |
| Security |
| Authentication |
MAC-based authentication, Web-based authentication |
| Authentication type |
RADIUS, TACACS+ |
| SSH/SSL support |
Yes |
| Security algorithms |
SSH, SSH-2 |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client |
| Multicast features |
| Multicast support |
Yes |
| Design |
| Product colour |
Black |
| Form factor |
1U |
| Stackable |
No |
| Rack mounting |
Yes |
| Performance |
| Flash memory |
32000 MB |
| Internal memory |
4096 MB |
| Memory type |
DDR3-SDRAM |
| Processor frequency |
1016 MHz |
| Processor model |
ARM Cortex-A9 |
| Built-in processor |
Yes |
| Power |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
No |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
240 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Heat dissipation |
117 BTU/h |
| Operating temperature (T-T) |
-40 - 60 °C |
| Non-operating altitude |
0 - 4600 m |
| Operating altitude |
0 - 4200 m |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-40 - 60 °C |
| Weight & dimensions |
| Weight |
6.47 kg |
| Height |
44 mm |
| Depth |
304.4 mm |
| Width |
444.5 mm |
