Many small businesses and branch offices struggle with slow, unreliable wired networks that cannot keep up with IoT devices, video cameras, and cloud apps. When the network drops, work stops and customers notice the problem. The HPE Aruba Networking CX 6000 48G 4SFP L3, Rack mounting, 1U Managed Switch solves this by giving you a fast, secure, and easy-to-manage connection point for up to 48 devices, plus powerful PoE support for cameras and access points. It lets you build a stable network that grows with your needs.

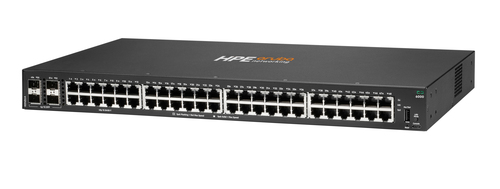

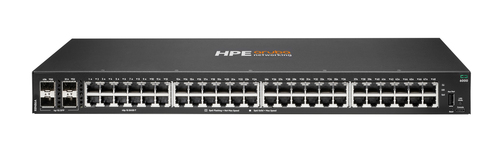

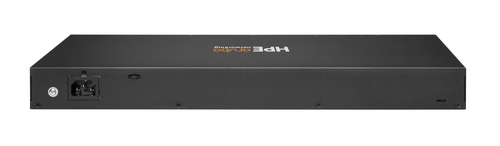

HPE Aruba Networking CX 6000 48G 4SFP L3, Rack mounting, 1U Managed Switch with HPE
You need a switch that does more than just move packets. This 1U rack-mountable device from HPE gives you 48 Gigabit Ethernet ports, four SFP uplinks, and Layer-3 routing in a compact, fanless case. It is built for offices that cannot afford downtime and need to power security cameras, Wi-Fi APs, and other IoT gear. If your current hardware is old, noisy, or hard to manage, this switch removes the headache and lets you focus on running your business.
Key Features
- 48 Gigabit Ethernet RJ-45 ports.
- 4 SFP uplink slots for fiber connectivity.
- Layer-3 managed switch with static routing.
- Cloud-managed and web-GUI options.
- Quality of Service (QoS) for video and voice.
- VLAN support for network segmentation.
- Link aggregation and spanning-tree for redundancy.
- 12.38 MB packet buffer and jumbo-frame support.
- 104 Gbit/s switching capacity.
- ARM Cortex-A9 processor at 1.0 GHz.
- Power consumption max 44.2 W, AC input 200-240 V.
- Fanless, 1U rack-mountable form factor.
Specifications
| Management features |
| Cloud-managed |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L3 |
| Switch type |
Managed |
| Ports & interfaces |
| Console port |
USB |
| SFP module slots quantity |
4 |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3,
IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
|
| Data transmission |
| Packet buffer memory |
12.38 MB |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Latency (1 Gbps) |
1.9 µs |
| Throughput |
77.3 Mpps |
| Throughput |
77.3 Mpps |
| Switching capacity |
104 Gbit/s |
| MAC address table |
8192 entries |
| Security |
| Authentication |
MAC-based authentication |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client |
| Multicast features |
| Multicast support |
Yes |
| Protocols |
| IPv6 FIB entries |
128 |
| IPv4 FIB entries |
256 |
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL) |
| Design |
| Form factor |
1U |
| Stackable |
No |
| Rack mounting |
Yes |
| Performance |
| Flash memory |
16384 MB |
| Internal memory |
8000 MB |
| Memory type |
DDR3-SDRAM |
| Processor frequency |
1016 MHz |
| Processor model |
ARM Cortex-A9 |
| Built-in processor |
Yes |
| Power |
| Power consumption (max) |
44.2 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
200 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage relative humidity (H-H) |
15 - 90% |
| Operating relative humidity (H-H) |
15 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
| Weight |
3.4 kg |
| Height |
247 mm |
| Depth |
442 mm |
| Width |
44 mm |
