If your office network is choking on bandwidth and you cant power IP cameras or Wi-Fi APs from the same switch, you need a reliable solution. HPEs CX 6200F gives you 48 gigabit ports, 370 W PoE, and four 10 Gb SFP+ uplinks, so you can consolidate devices and keep traffic smooth.

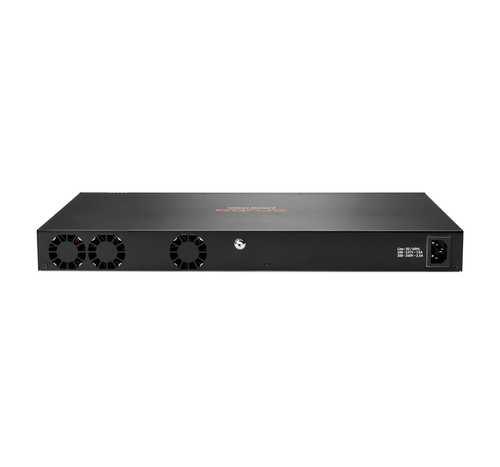

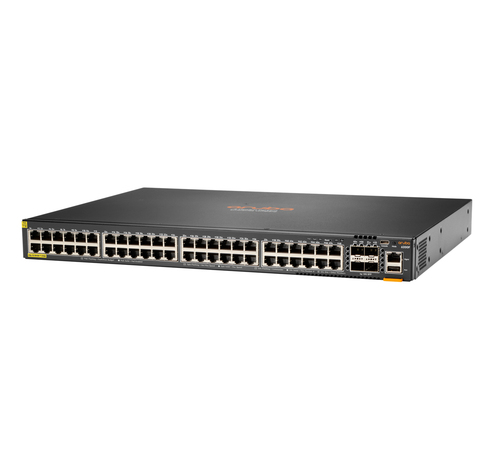

HPE Aruba Networking CX 6200F 48G Class-4 PoE 4SFP+ 370W Switch
This is a 1U, stackable, managed Layer-3 switch designed for midsize enterprises that need PoE power for phones, cameras and access points while maintaining high-speed uplinks. It fits standard 19-inch racks and supports VLANs, ACLs and QoS for precise traffic control.
Benefits
- You can power cameras, phones and APs from a single switch.
- Network traffic stays fast thanks to low-latency 10 Gb uplinks.
- Simplify cabling and rack space with 48 PoE ports.
- Easily segment users with VLAN and ACL support.
- Scale by stacking up to eight units without extra wiring.
- You get HPE-grade reliability for critical infrastructure.
Features
- 48 x 10/100/1000 RJ-45 ports
- 4 x 10Gb SFP+ slots
- 370W PoE budget, Class-4
- Layer-3 managed switching
- 176 Gbps switching capacity
- 8 MB packet buffer memory
- 1U rack-mountable, stackable to 8 units
- 1800 MHz ARM Cortex-A72 processor
Specifications
| Management features |
|
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L3 |
| Switch type |
Managed |
| Ports & interfaces |
|
| Console port |
RJ-45/USB Type-C |
| SFP+ module slots quantity |
4 |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
|
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p,
IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab,
IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
|
| Optical fiber |
|
| Transmission distance (max) |
10 km |
| Data transmission |
|
| Packet buffer memory |
8 MB |
| Latency (10 Gbps) |
1.46 µs |
| Latency (1 Gbps) |
2.28 µs |
| Throughput |
130.9 Mpps |
| Throughput |
130.9 Mpps |
| Switching capacity |
176 Gbit/s |
| MAC address table |
32768 entries |
| Security |
|
| Authentication |
MAC-based authentication, Web-based authentication |
| Authentication type |
RADIUS, TACACS+ |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Multicast features |
|
| Multicast support |
Yes |
| Design |
|
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
|
| Flash memory |
16384 MB |
| Internal memory |
8192 MB |
| Memory type |
SDRAM / Flash |
| Processor frequency |
1800 MHz |
| Processor model |
ARM Cortex-A72 |
| Built-in processor |
Yes |
| Physical stacking (units) |
8 |
| Power |
|
| Power consumption (max) |
76 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Redundant power supply (RPS) support |
No |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
|
| Total Power over Ethernet (PoE) budget |
370 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|
| Weight |
5.1 kg |
| Height |
43.9 mm |
| Depth |
327 mm |
| Width |
442 mm |
