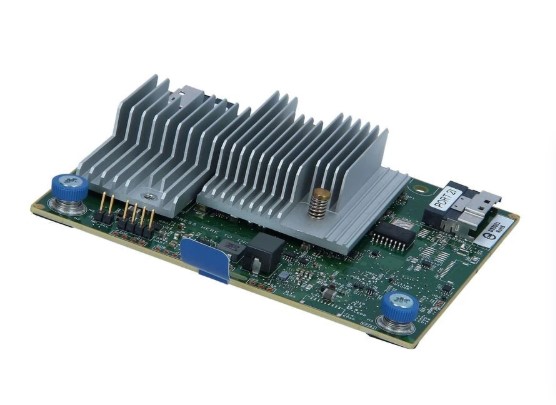

HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller
The HPE MR416i-o Gen11 is a plug-in storage controller designed for compatible HPE server environments. It provides 16 channels and supports SATA 6Gb/s, SAS 12Gb/s, and PCIe 4.0 (NVMe) storage interfaces for flexible connectivity with supported storage devices.
The controller uses a PCIe 4.0 x8 host bus and includes an 8GB buffer size. It supports disk arrays using RAID technology, with RAID 60 specified in the provided configuration.
The MR416i-o is designed as an OCP storage controller and provides connectivity for different storage technologies through its supported SATA, SAS, and NVMe interfaces. This makes it suitable for server storage configurations requiring a dedicated RAID controller.
The controller supports VMware ESXi, while the provided software requirements also list Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, and CentOS. Compatibility depends on the supported server and operating system configuration.
The HPE MR416i-o Gen11 comes as a single plug-in card and includes a 3-year limited parts warranty. Its PCIe 4.0 x8 host bus, 8GB buffer, 16-channel configuration, and multi-interface storage support provide a flexible solution for compatible server storage environments.
Key Features
-
HPE MR416i-o Gen11 storage controller
-
Plug-in card form factor
-
16 storage controller channels
-
PCIe 4.0 x8 host bus
-
SATA 6Gb/s interface support
-
SAS 12Gb/s interface support
-
PCIe 4.0 (NVMe) interface support
-
8GB buffer size
-
RAID 60 support
-
Supports disk array (RAID) devices
-
Supports Microsoft Windows Server, Linux, VMware ESXi, Ubuntu, and CentOS
Specifications
| Header |
|
| Model |
MR416i-o |
| Product Line |
HPE |
| Packaged Quantity |
1 |
| Storage Controller |
|
| Form Factor |
Plug-in card |
| Interface |
SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
| RAID Level |
RAID 60 |
| Buffer Size |
8GB |
| Host Bus |
PCIe 4.0 x8 |
| Supported Devices |
Disk array (RAID) |
| Channel Qty |
16 |
| System Requirements |
|
| OS Required |
VMware ESXi |
| General |
|
| Product Type |
Storage controller (RAID) |
| Device Type |
Storage controller (RAID) - plug-in card |
| Host Bus |
PCIe 4.0 x8 |
| Expansion / Connectivity |
|
| Interfaces |
SATA 6Gb/s / SAS 12Gb/s / PCIe 4.0 (NVMe) |
| Software / System Requirements |
|
| OS Required |
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server,
VMware ESXi, Ubuntu, CentOS
|
